Innova 1000: How to Read & Erase Codes

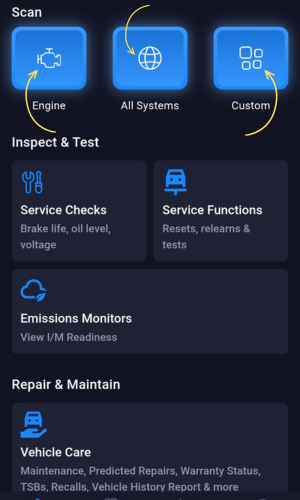

Step 1 - Select scan type.

• After pairing to the RS2 App, you can perform three types of scans. Select any of the following scan types you want to perform:
  • Check Engine - This feature scans all codes related to your engine, and the check engine light on your dashboard.
  • Read Codes - Select this feature if you want to scan individual modules.
  • Whole System - This feature scans all modules and systems at once, including brakes (ABS), airbag (SRS) codes, and many more.

Step 2 - Wait until the app reads the data from your vehicle.

• The RS2 app will read the data from your vehicle, including the odometer.

Step 3 - Select Generate Report.

• After your vehicle's odometer is read by the RS2 app, select Generate Report.

• While generating the report for your check engine light, ensure your vehicle is turned to the ON position, and your mobile phone is close to your device.

  Once the report is generated, a Done message will be shown on the screen.

Step 4 - Scroll to bottom of report page

• The report page will appear after the mobile app is done generating the reports. It will show the number of codes found and a Results link that navigates to your codes in detail.

  To access the DTC codes list, select Results.

• To erase codes, scroll to the bottom of this page.

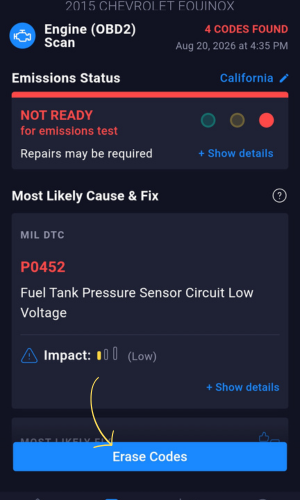

Step 5 - Select Erase Codes.

• If you want to clear the report after completing repairs, you can erase the vehicle's codes. Scroll down the screen and select Erase Codes.

Step 6 - Select the codes you wish to erase.

• After selecting Erase Codes, a dialog screen will appear that will let you select the codes you wish to erase.

Step 7 - Select Continue.

• After selecting the codes you want to be erased, a successful deletion prompt screen will appear to notify you that the system successfully completed erasing your codes.

  Select Continue to exit.
