Innova 1000: How to Scan ABS

Step 1 - Select Read Codes.

• After pairing with the RS2 app, you can now scan for codes in specific modules at the Home menu.

  Select Read Codes to open a list of modules to manually scan and check for ABS DTCs.

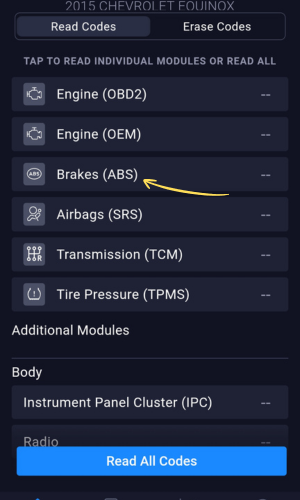

Step 2 - Select the Brakes (ABS).

• Select Brakes (ABS) from the list.

Step 3 - Wait until the RS2 app reads the data from your vehicle.

• The RS2 app will read the data from your vehicle, including the odometer.

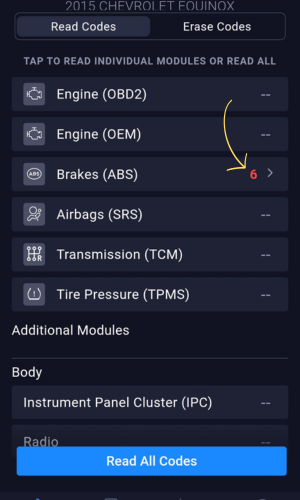

Step 4 - View the report for ABS codes by selecting the link showing the number of codes.

• Select the link showing the number of codes.

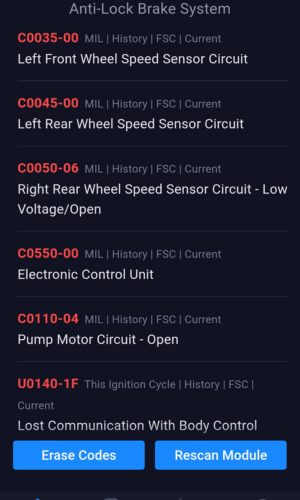

• You may now view the report page for the ABS codes.
