Innova 1000: How to scan for SRS codes

Purpose

To demonstrate where and how to scan SRS codes using the Innova 1000.

Step 1 - Select Read Codes.

• After pairing with the RS2 App, you can now scan codes for specific modules in the RS2 App's Home menu.

  Select Read Codes to open a list of modules that you can manually scan and check for DTCs.

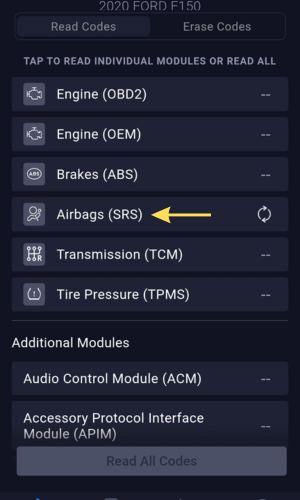

Step 2 - Select Airbags (SRS).

• Select Airbags (SRS) from the list.

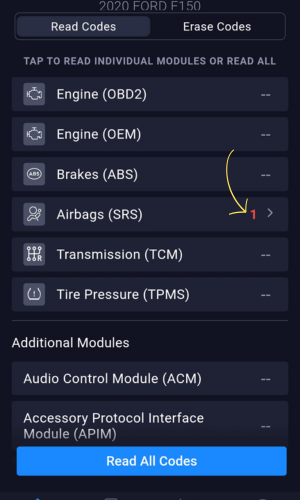

Step 3 - View the SRS codes stored in the vehicle's memory.

• View all the SRS codes stored in the vehicle's memory.

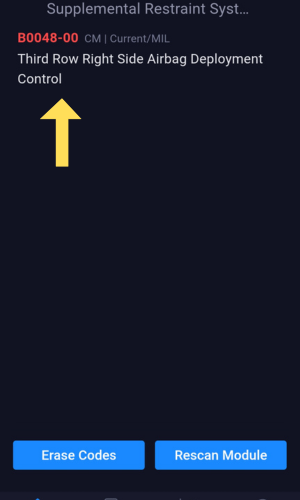

Step 4 - View the report for SRS codes by selecting the link showing the number of codes.

• Select the link showing the number of codes.
• You may now view the report page for the SRS codes.
