Innova 1000: Setting up Live Data

Step 1 - Select Record Live Data of Live Data.

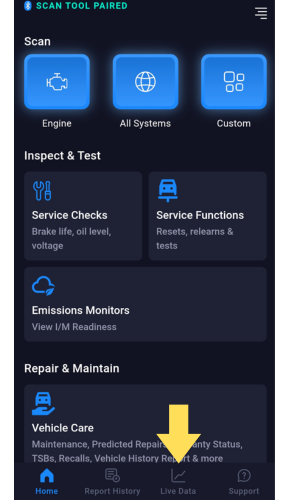

  • To use Live Data, select the Live Data tab in the menu selections.

Step 2 - Select parameters.

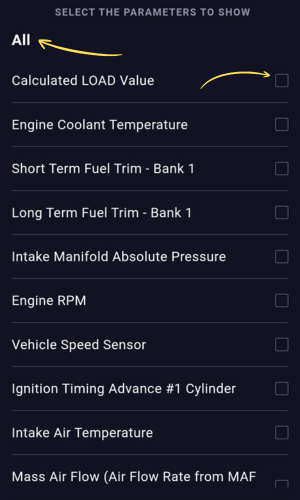

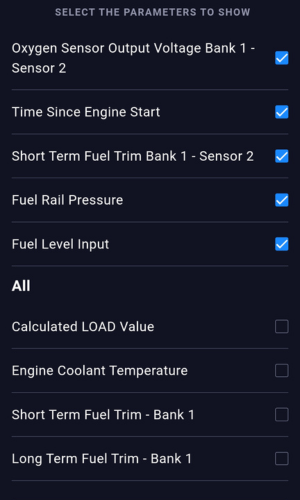

  • Select the parameters for Live Data then select Done.

Note: You can only input and view up to 8 parameters.

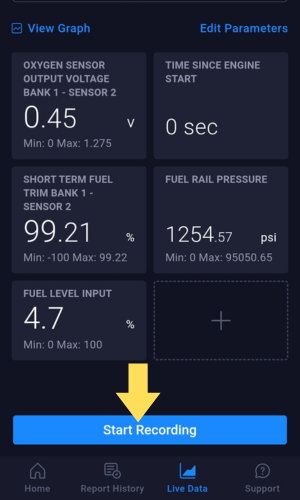

Step 3 - Select the Start Recording button.

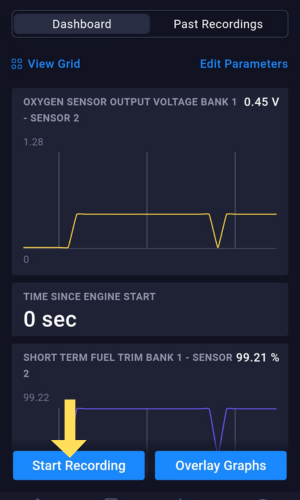

  • After selecting the parameters that you want a Live Data recording for, you will be redirected to the Live Data Dashboard, where the parameters are in Grid Mode.

    Select the Start Recording button to start Live Data gathering of the OBD2 Scanner.

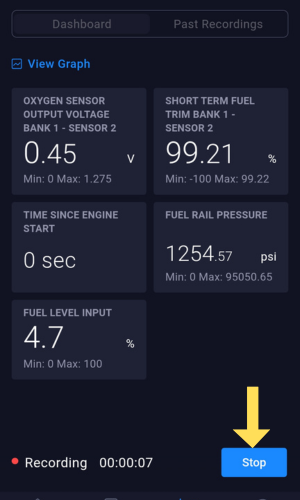

Step 4 - After gathering the data, select Stop.

  • After selecting Start Recording, Live Data collection will start.

    Once you have gathered the data, select the Stop button beside the recording time in the dialogue box.

Step 5 - View parameter values.

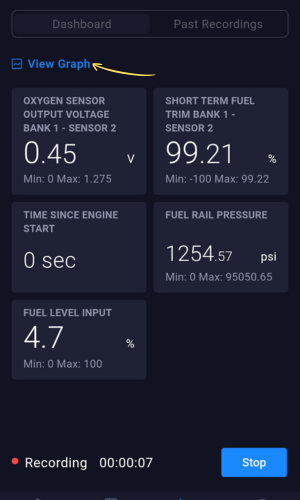

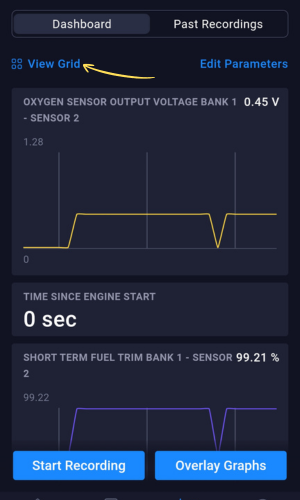

  • While recording, you can also either view the parameter values in Grid View Mode (data are in numerical values) and Graph View Mode (data are in the graph values).

Recording More than one Live Graph Data

Step 1 - Select the Overlay Graphs button.

  • You can record more than one live data graph at the same time.

    To use this feature,

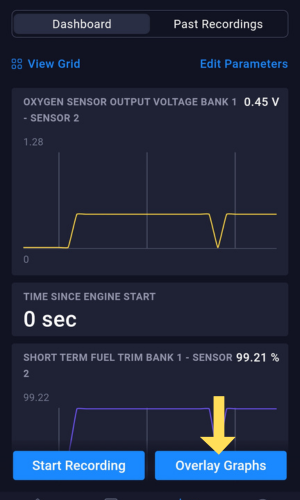

    select the Overlay Graphs tab.

Step 2 - Select Overlay Graphs.

  • A dialogue box will prompt up to select what two graph parameters you want to overlay. After selecting the parameters, select Overlay Graphs to view the overlaying graph.

Step 3 - Select Start Recording.

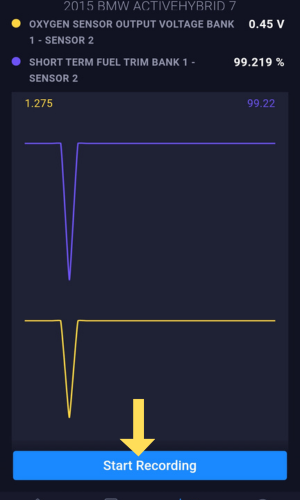

  • Once you are in the Live Data Overlay display screen, select the Start Recording button to see the live data recording of the parameters you set.
  • To the left is an example of a Live Data Overlay Graph recording. The Parameters (PIDs) selected in this example, short term fuel trim - bank 1 & short term fuel trim - bank 2, are different than above

View Past Recordings

Step 1 - Select Past Recording.

  • Another Live Data feature is the capability to view past recordings.

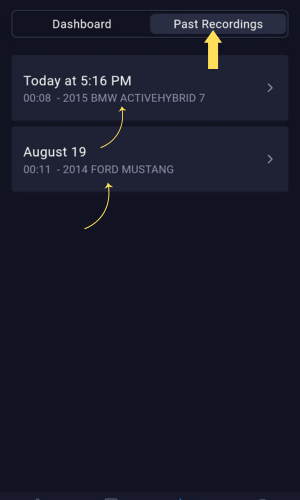

    Select the Past Recording button within the Live Data Screen, then select the recording that you want to view.

Note: A recording that you want to view replays according to the time and date indicated in the recorded data.

Step 2 - Select Live Replay.

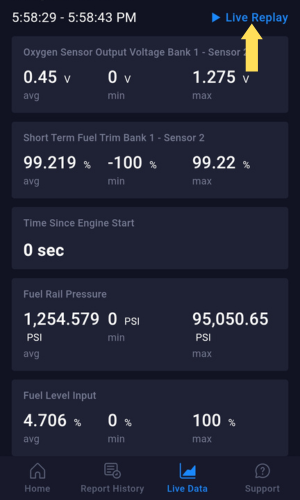

  • To view a live replay of a past recording you want to check, select the Live Replay button.

Step 3 - View previously recorded video.

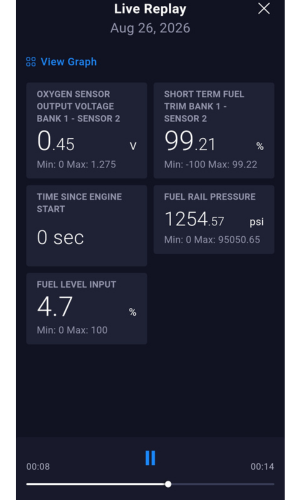

  • After selecting the Live Replay button, you will see a video of the Live Data you previously recorded.
