Innova 1000: I/M Monitors

Purpose:

To guide you to your vehicles I/M Monitors to view the current status.

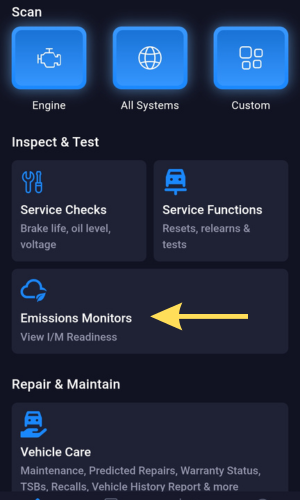

Step 1 - Open the RepairSolutions2 app and select I/M Monitors.

  • After pairing your device, you'll be on the home screen.

    Select I/M Monitors to view the details.

Step 2 - The options for I/M Monitors will display on screen.

  • I/M Monitors options include the following:
    • Incomplete
    • Completed
    • Not Supported
  • It will automatically default to the "Incomplete" option. Tap on one of the 3 options to view the information.

Step 3 - Select which option.

  • Incomplete: These monitors still require a drive cycle procedure for each monitor listed under this status. This means the vehicle's computer is still testing for potential codes and/or the severity of the potential codes.
  • Completed: These monitors have finished testing for trouble codes, and there are no "Pending" codes currently being tested by the vehicle's computer.
  • Not Supported: These are monitors not supported for your specific vehicle. Gas engine (Spark Ignition) & Diesel engine (Compression Ignition) vehicles have some similar monitors, but also have separate monitors that only apply to a spark or compression ignition vehicle.

Step 4 - Select the arrow under each monitor to get a definition of that monitor.

  • Selecting the arrow next to the monitor will allow you to get a definition of that monitor.
