Innova 5610: Scanning & Viewing OEM Enhanced DTCs/Live Data

Viewing OEM Enhanced DTCs (Except Ford/Mazda)

When OEM Enhanced is chosen from the System Menu, the 5610 retrieves OEM Enhanced DTCs from the vehicle’s computer.

OEM Enhanced DTCs/Live Data

• Note: These videos show how to access OEM Enhanced DTCs and OEM Enhanced Live Data for Powertrain & Transmission.

Step 1 - While linked to your vehicle, press the System Status button.

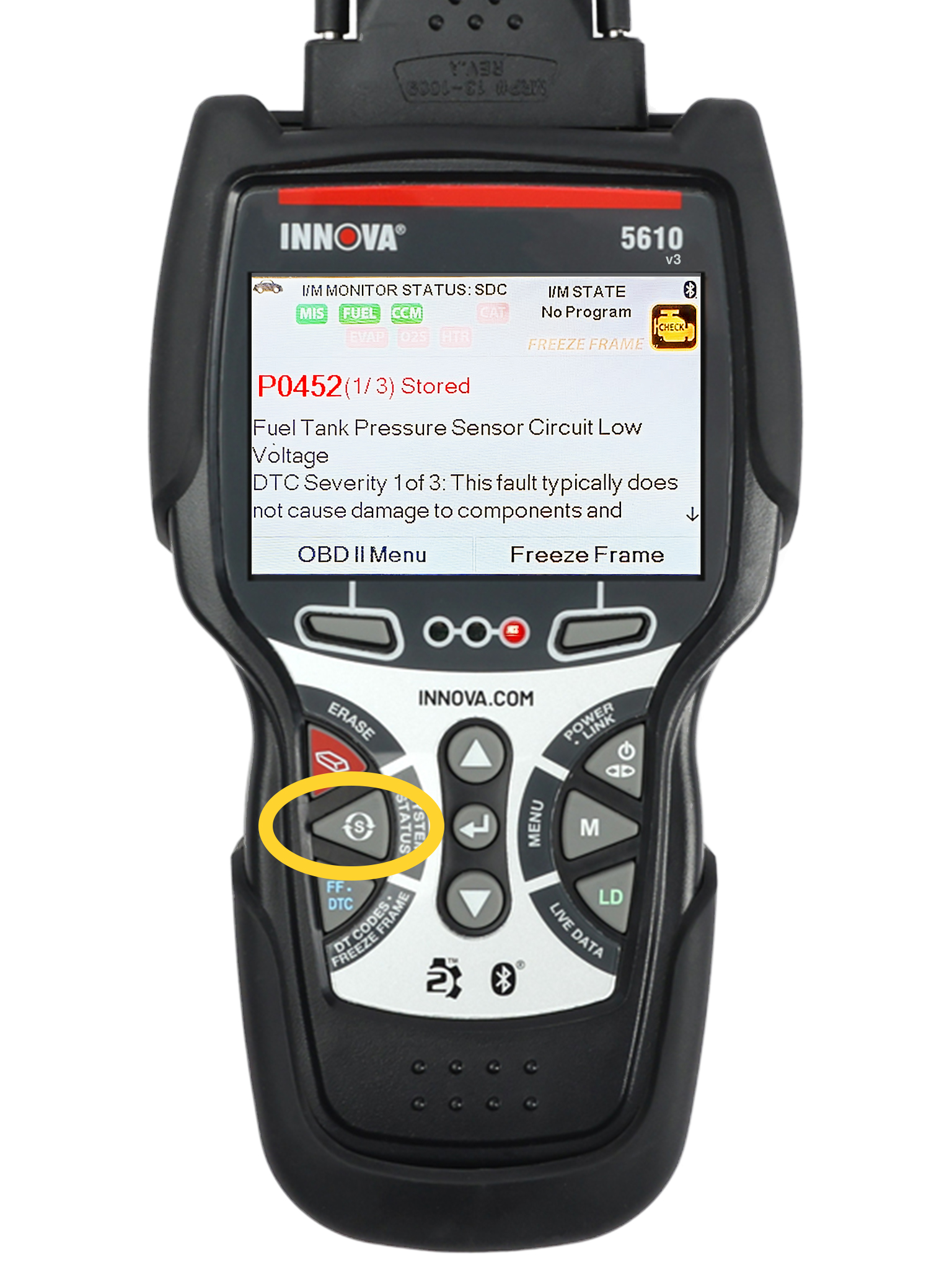

• While linked to your vehicle, press the System Status button to navigate to your list of scan options.

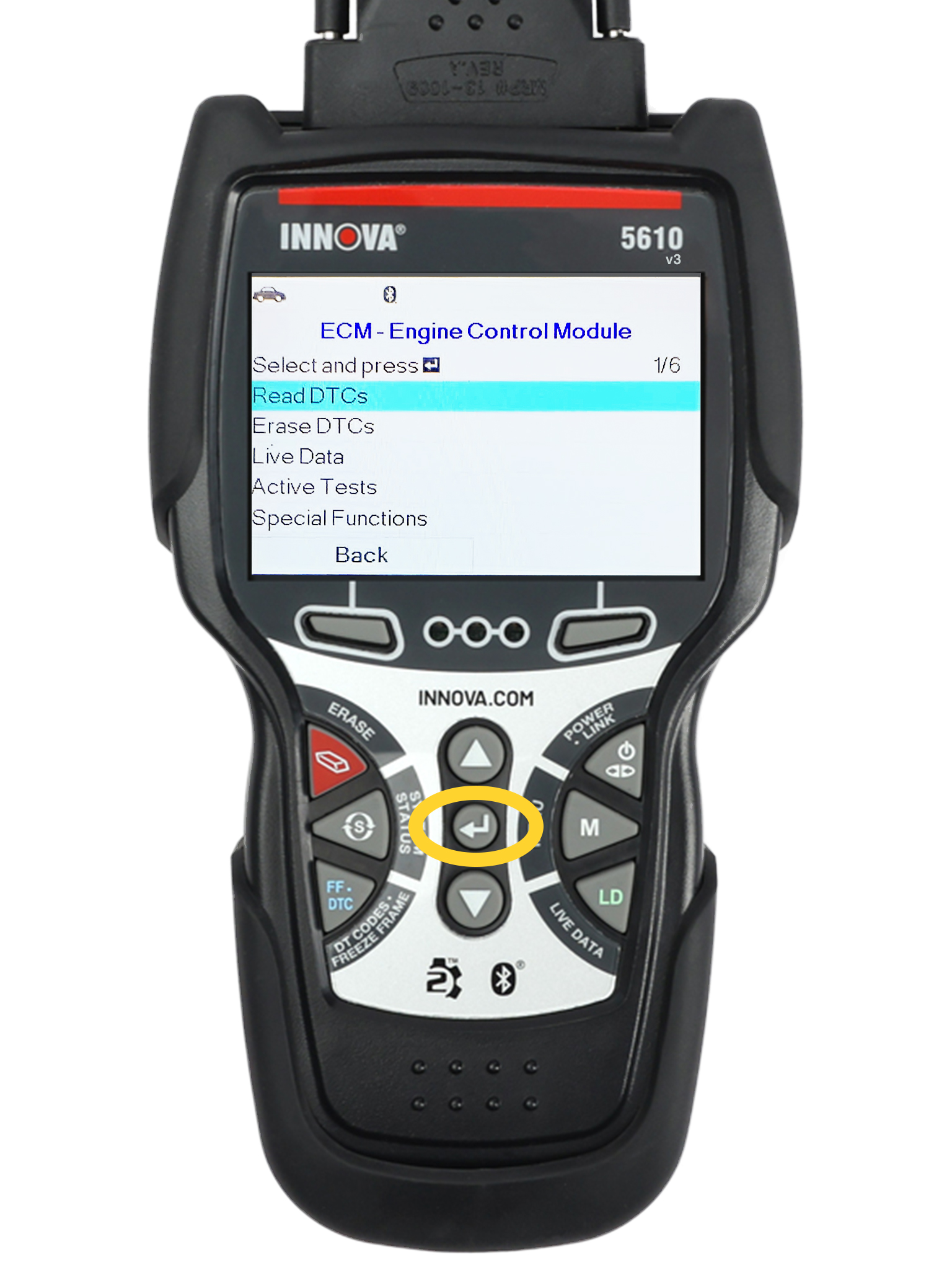

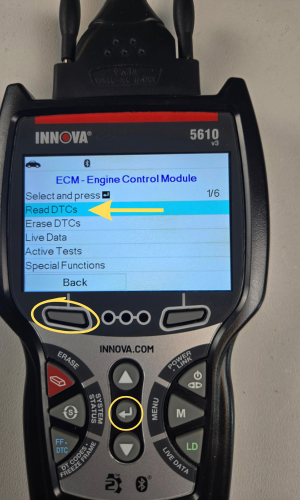

Step 2 - Press DOWN ▼ to scroll down to OEM Enhanced then press ENTER ↵.

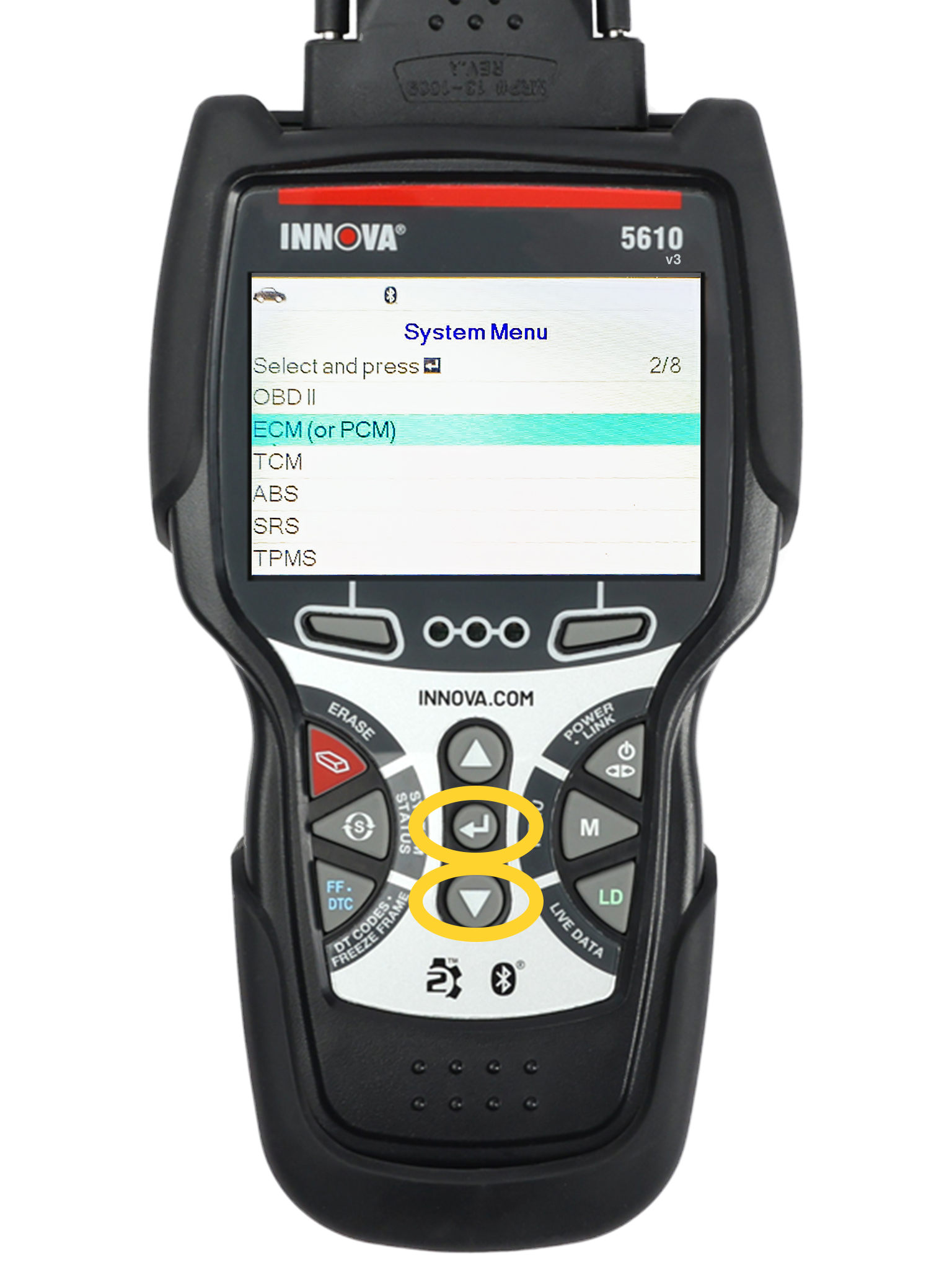

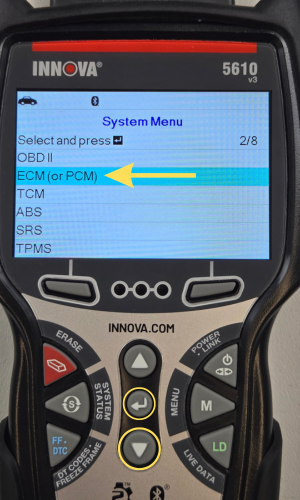

• Scroll through the options in the system menu by pressing the DOWN ▼ button and select the OEM Enhanced option by pressing ENTER ↵.

Step 3 - Press Yes to confirm your vehicle.

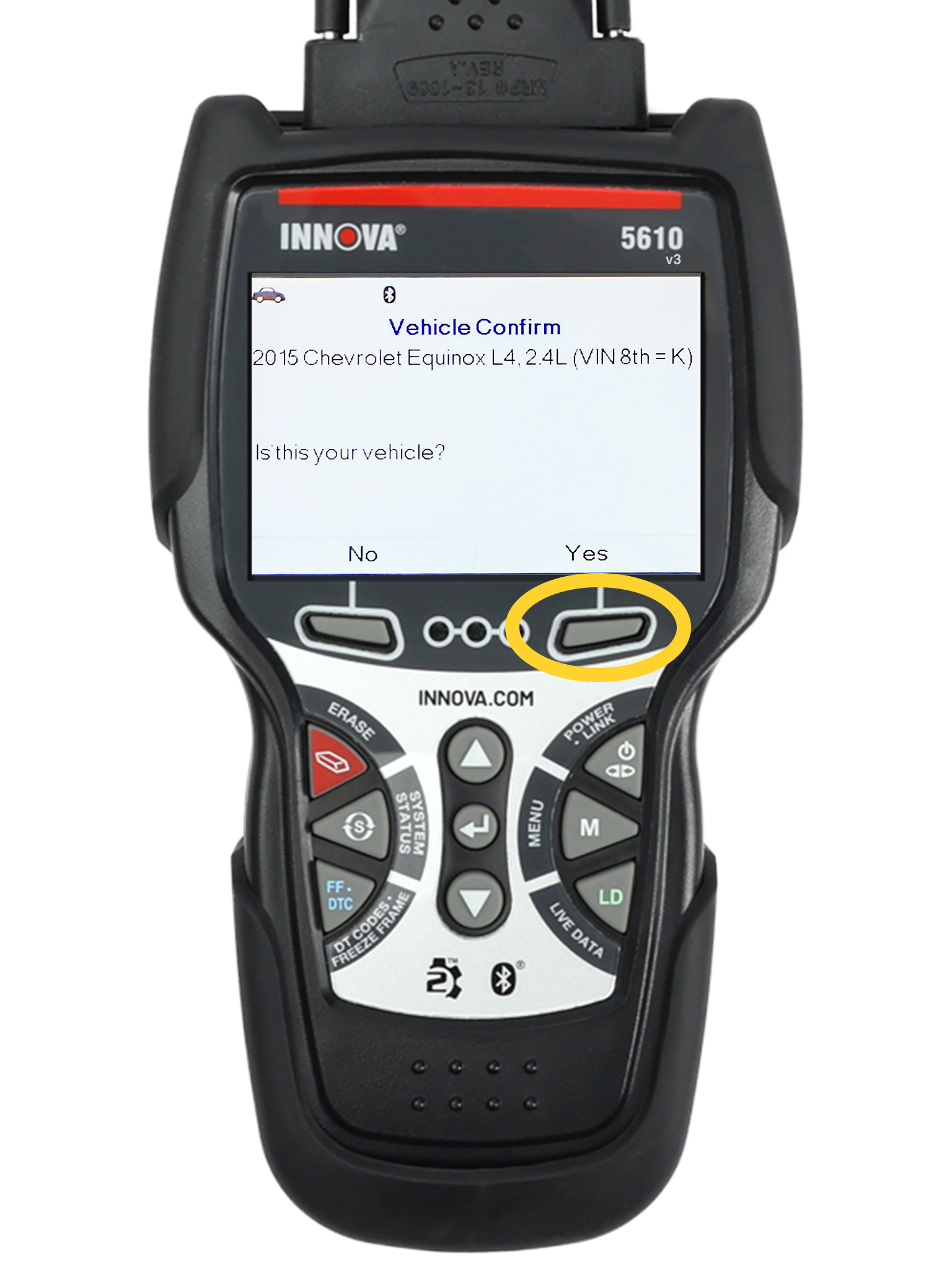

• Confirm your vehicle by pressing Yes.

Step 4 - Wait for the 5610 to complete the scan.

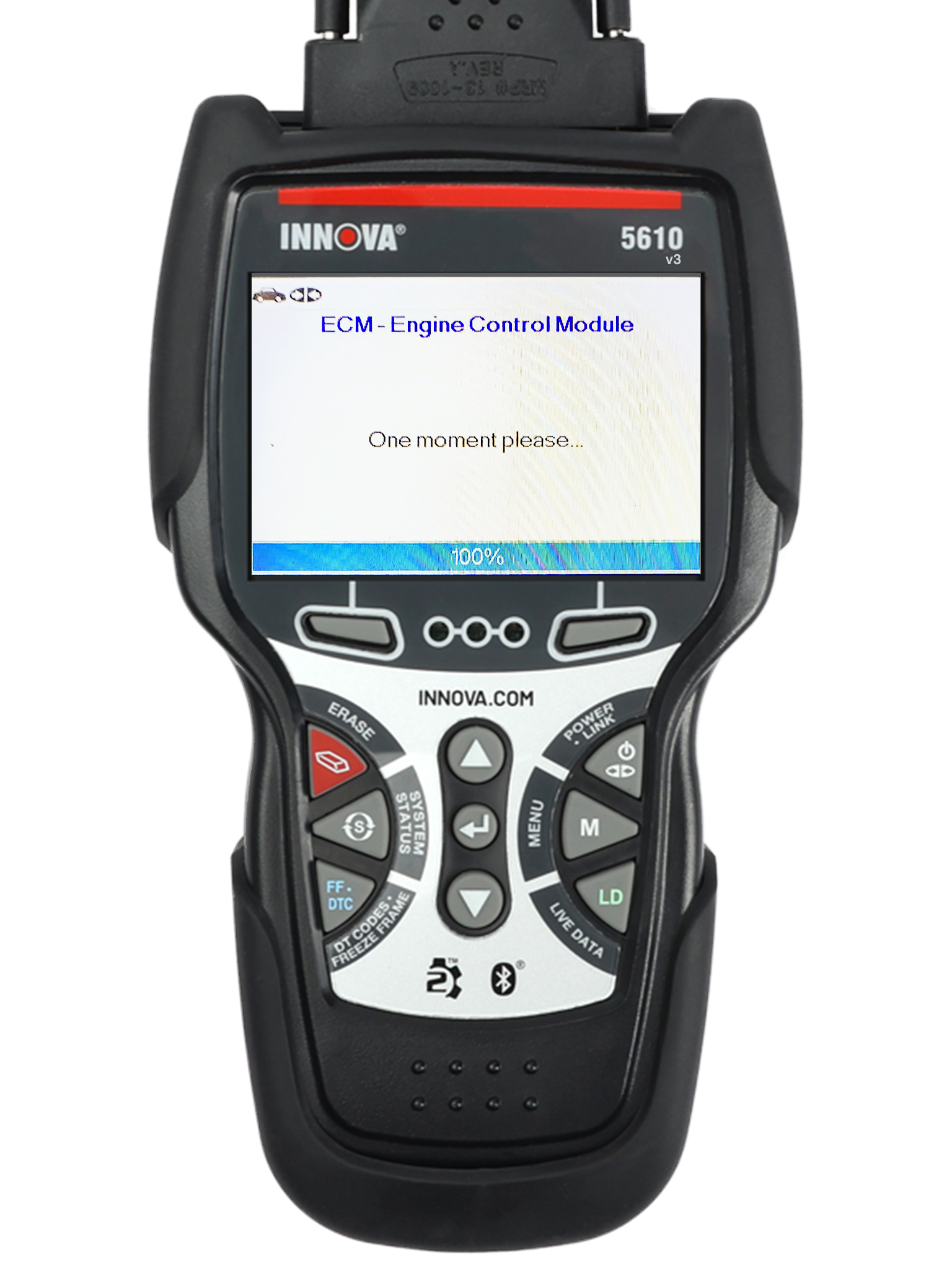

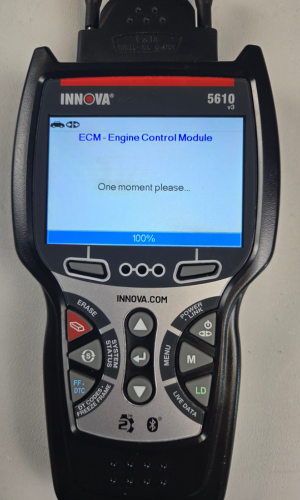

• A One moment please message will display while your scan tool retrieves the selected DTCs. Wait until the scan is 100% complete.

  If the scan tool fails to link to the vehicle’s computer, a Communication Error message will show. In this case:

  • Ensure your vehicle is OBD2 compliant.
  • Verify the connection at the DLC port, and that your ignition is turned On.
  • Turn the ignition Off, wait 5 seconds, then turn the ignition back On to reset the computer.
  • Press the POWER/LINK button to continue.
• If the scan tool cannot link to the vehicle’s computer after three attempts, the Contact Technical Support message will display.
  • Press the System Menu button to return to the System Menu.
  • Turn the ignition off, and disconnect your Scan Tool from the DLC.
  • Contact Technical Support for assistance.

Step 5 - Press UP▲ or DOWN▼ to scroll through your OEM codes.

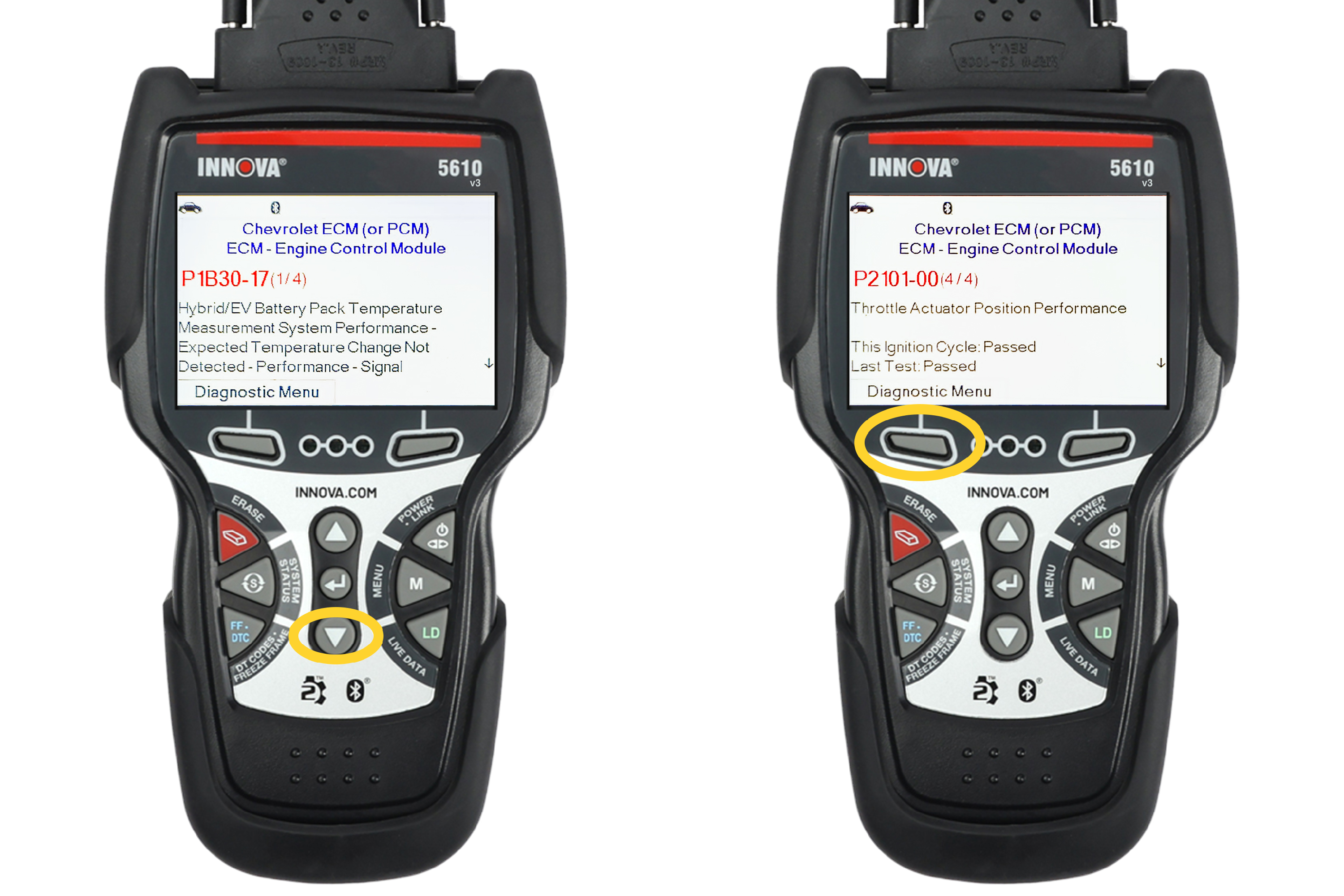

• Press the UP ▲ and DOWN ▼ buttons to scroll through the OEM codes.

  OEM Live Data - Press the LD button if you want to view OEM Enhanced Live Data.

  You may refer to Display Functions for a description of LCD display elements.

  If the definition for the currently displayed code is not available, an advisory message will show. I/M Monitor Status icons are not displayed when viewing enhanced DTCs.

  In the case of long code definitions, a small arrow is shown in the upper/lower right-hand corner of the code display area to indicate the presence of additional information.

  If no codes are present, the message No OEM Enhanced DTCs are presently stored in the vehicle’s computer will show.

• To exit the enhanced mode, select System Menu to return to the System Menu.

Step 6 - To return to your OEM enhanced codes, press the DTC/FF button.

• To return to your OEM codes after pressing any button, press the DTC/FF button to re-display your OEM codes.

  If more than one code was retrieved press DTC/FF to display additional codes one at a time.

  If the scan tool's communication with the vehicle's computer disconnects, press POWER/LINK again to re-establish communication.
