Innova 5610: ABS Live Data

ABS Live Data is a real-time stream of sensor values, status codes, and system parameters reported by a vehicle's Anti-Lock Braking System (ABS), electronic brake control, or stability-control module.

Key Parameters Monitored

  • Wheel Speed Sensors: Individual rotation speeds for the front-left, front-right, rear-left, and rear-right wheels. During straight-line driving, all four should report similar speeds; a dead sensor will read zero while the car is moving.
  • Yaw Rate & Lateral Acceleration: Measures the car's turning motion or sideways sliding.
  • Steering Wheel Angle Sensor: Tracks the position and movement of the steering wheel.
  • Brake Pressure & Valve/Pump Status: Shows hydraulic pressure readings or what the control module is actively commanding the ABS pump and valves to do.

Why It's Used

  • Diagnosing Faulty Sensors: If the ABS warning light is on but no trouble code is stored, comparing live wheel-speed graphs can quickly reveal a dropped signal caused by a bad sensor, broken wiring, or a damaged tone/reluctor ring.
  • Troubleshooting Traction/Stability Issues: It helps verify whether ESP (Electronic Stability Program) or traction control components are communicating properly during test drives.

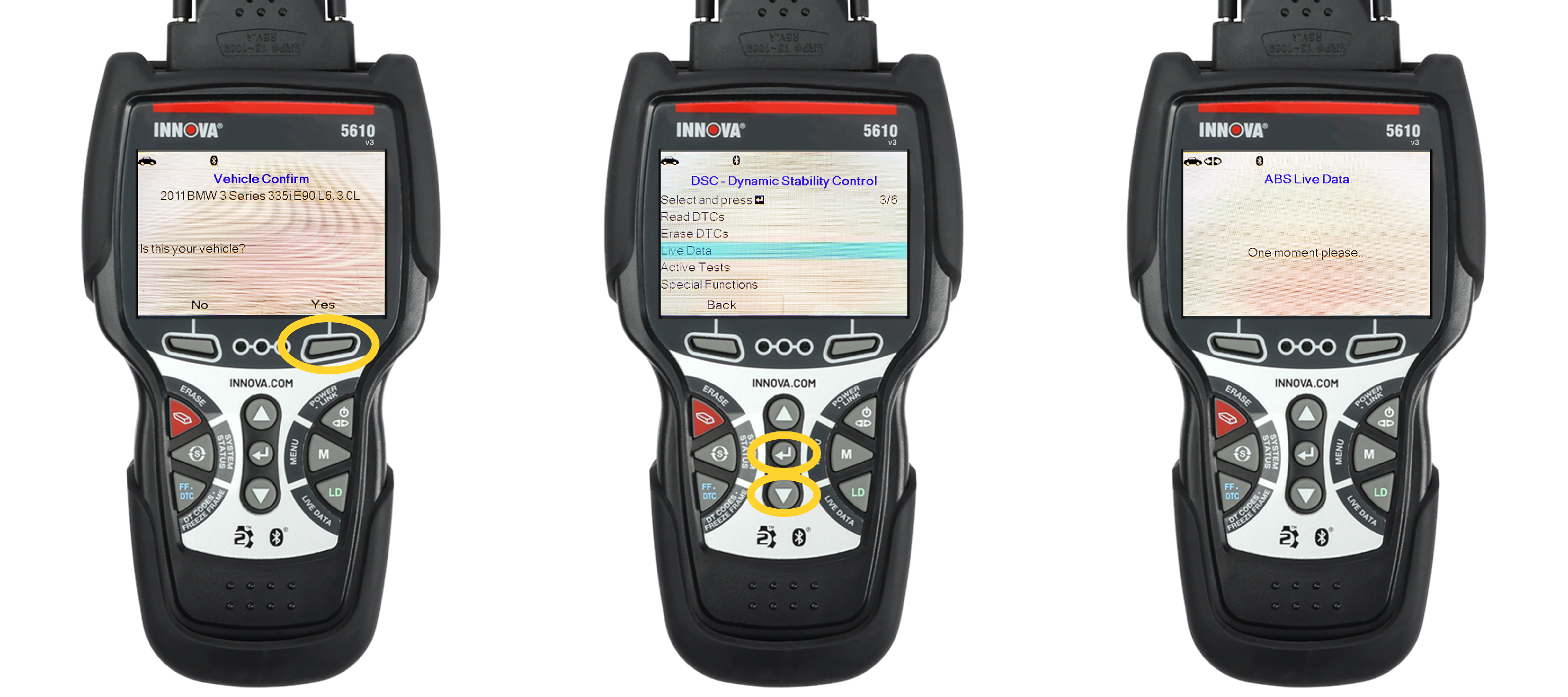

Step 1 - Press the System Status button

  • Press the System Status button to navigate to the System Menu.

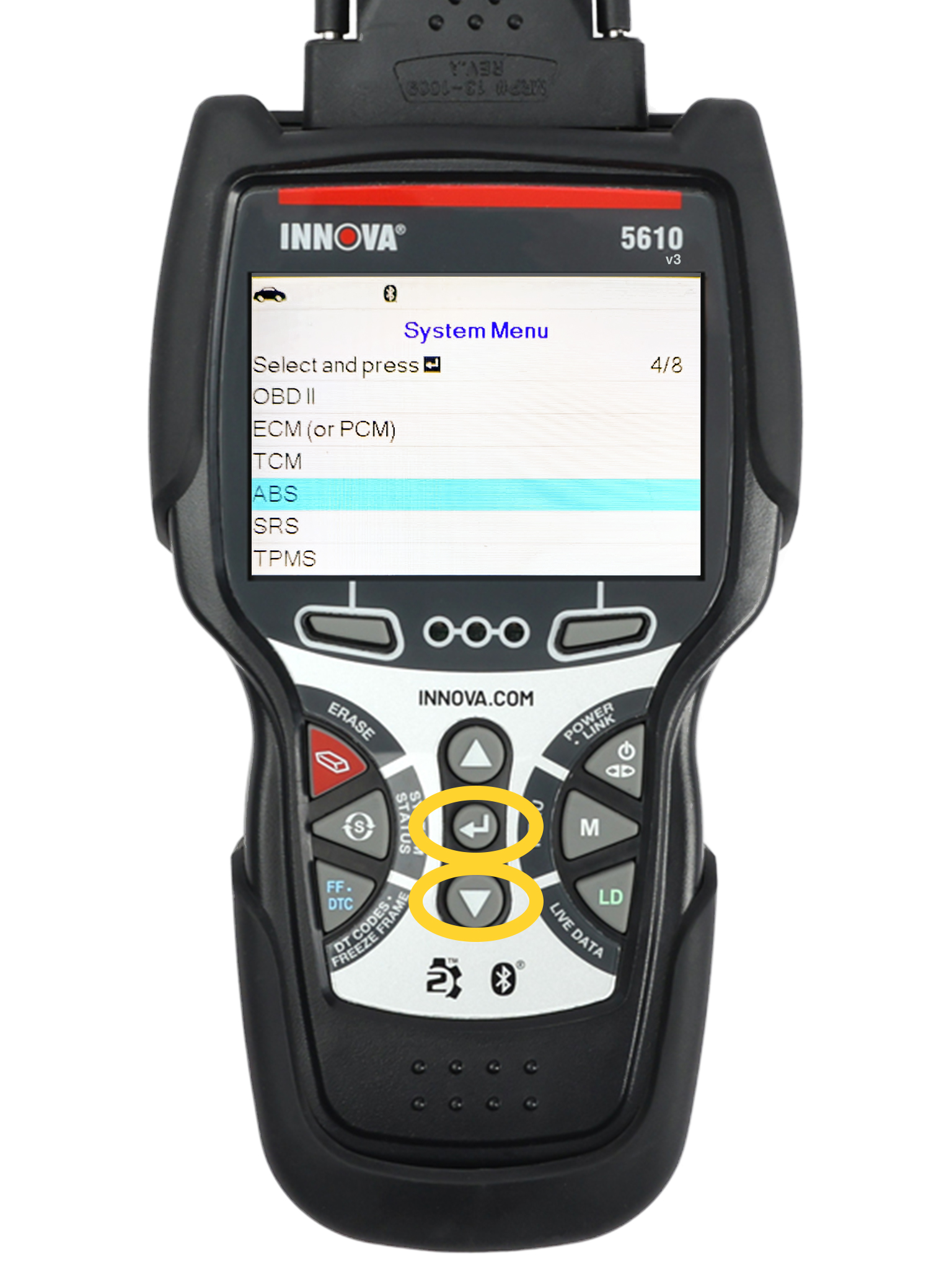

Step 2 - Scroll down to ABS

  • Scroll down the options by pressing the DOWN ▼ button, then select ABS, then press ENTER ↵.
  • Shortcut: You can press LD once ABS is highlighted to enter ABS Live Data.

Step 3 - Select Live Data


  • Select Live Data and press ENTER ↵.
  • A One moment please... message will display.

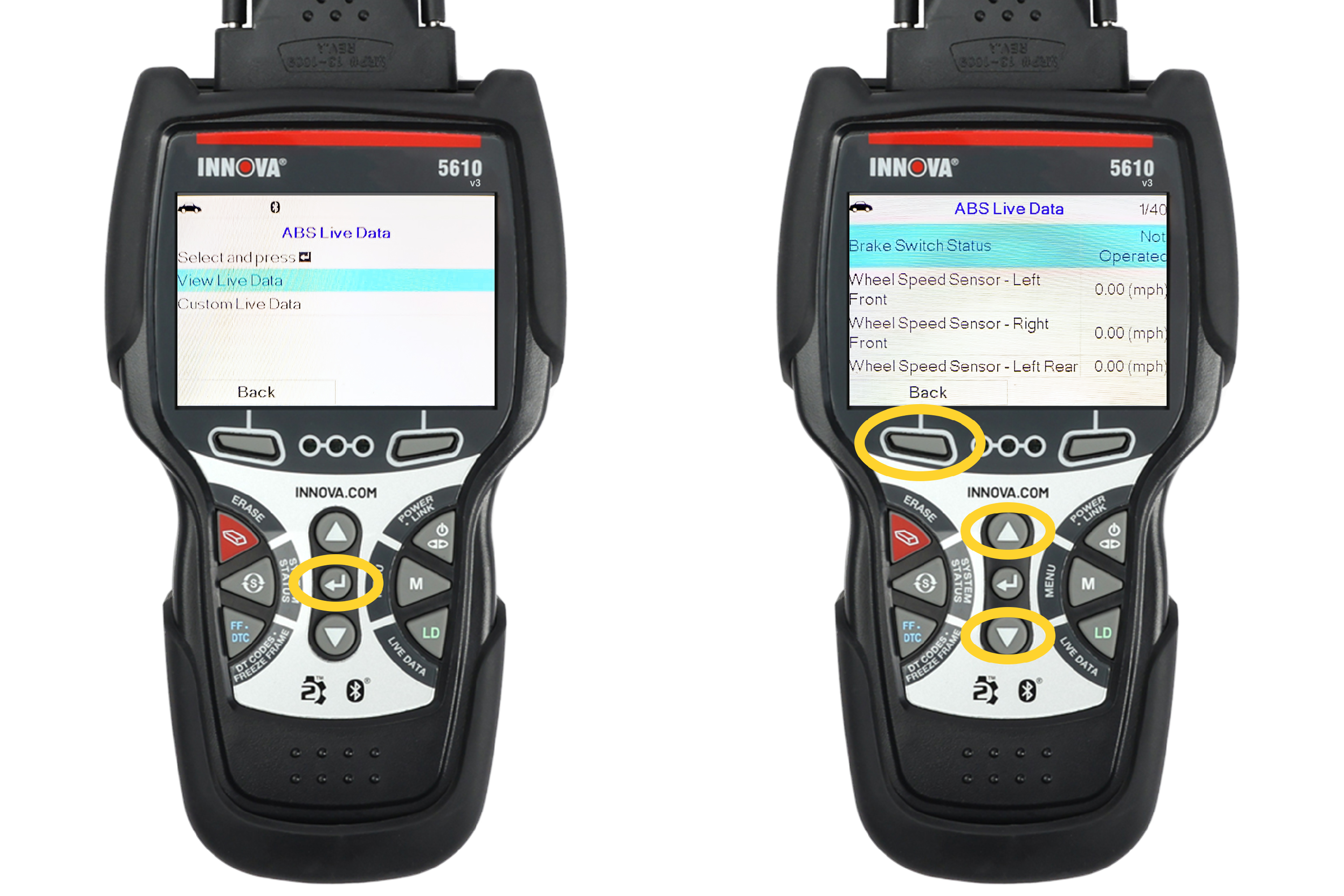

Step 4 - View ABS Live Data

  • Select View Live Data and press ENTER ↵.
  • ABS Live Data will display.
  • Press the Back button to return to previous screen.

  • To configure Custom ABS Live Data, choose Select new PIDs, then press ENTER ↵. The Custom Live Data menu will display.
  • Press UP ▲ and DOWN ▼ to scroll through the available PIDs.
  • When a PID you wish to display is highlighted, press ENTER ↵. A Checkmark will show to confirm your selection. Repeat until only the PIDs you want to display are selected.
  • To select all PIDs, press Select All PIDs.
  • To deselect a PID, highlight the PID, then press ENTER ↵. The checkmark will be removed.
  • Select Done to continue after making your selection(s) or Live Data Menu to return to the Live Data Menu.

NOTE: The 5610 will not Graph ABS Live Data PIDs or Record ABS Live Data.
