Innova 5610: SRS Live Data

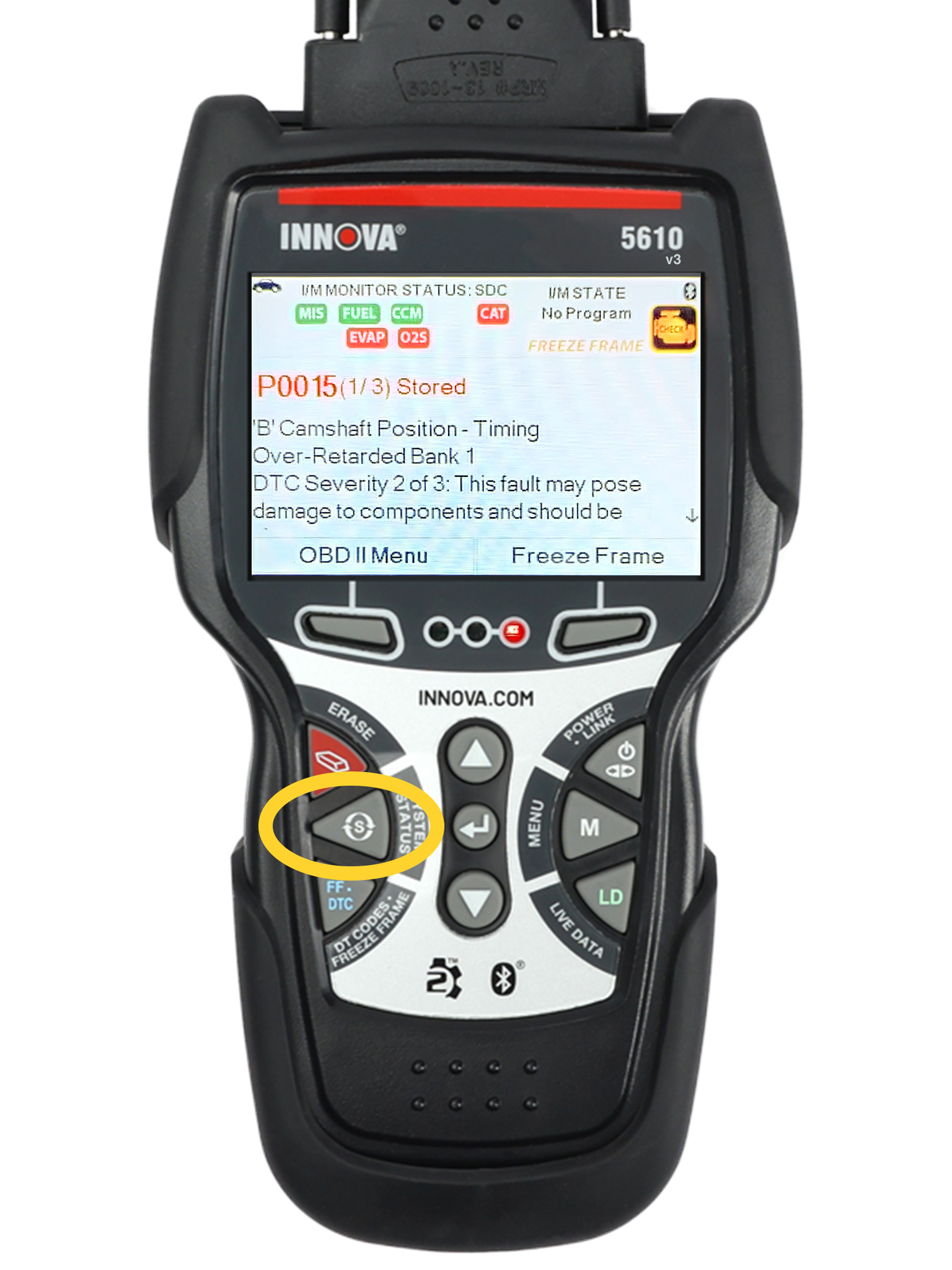

Step 1 - Press the System Status button

• Press the System Status button to navigate to the System Menu.

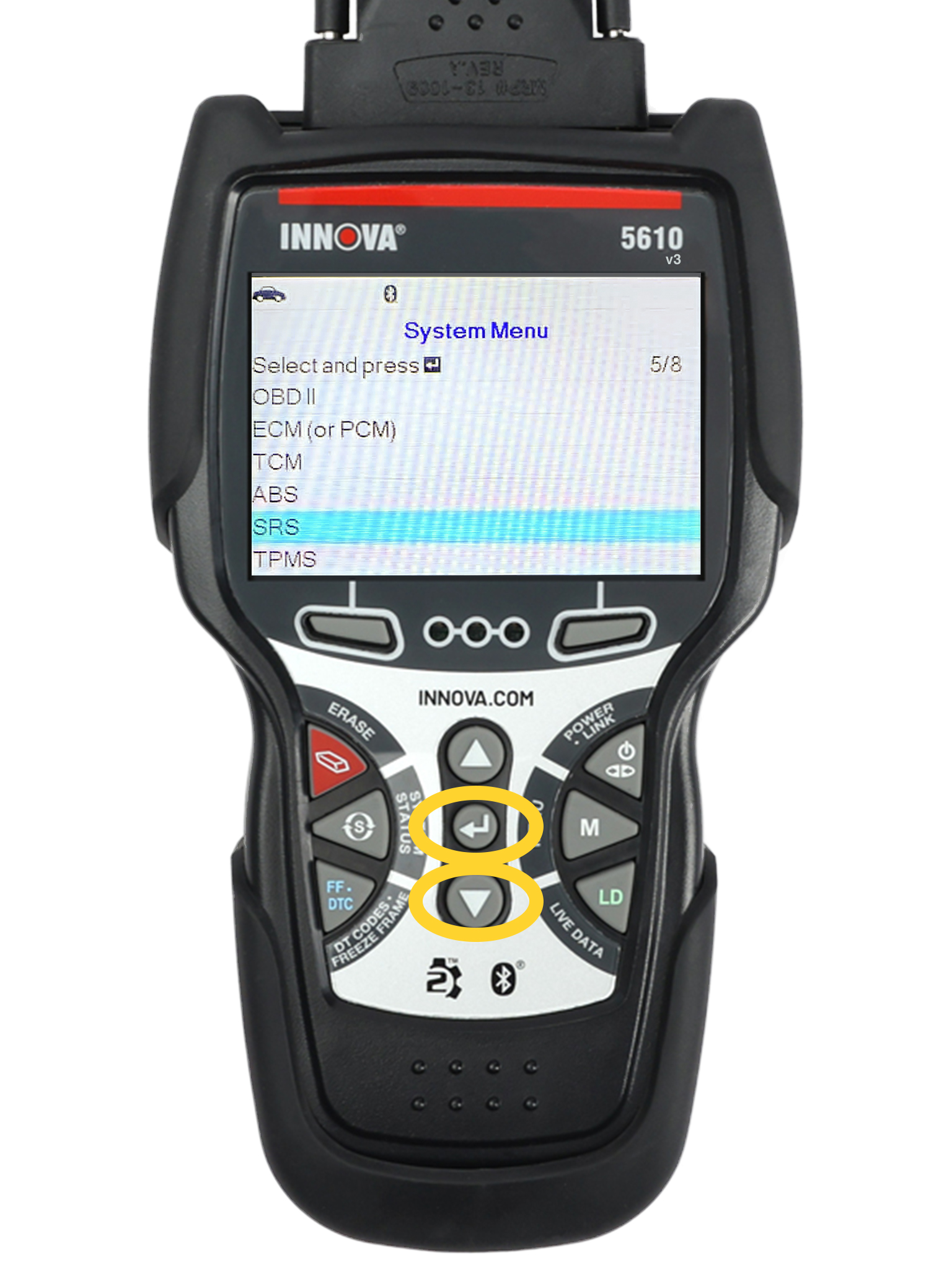

Step 2 - Scroll to SRS

• Scroll by pressing the DOWN ▼ button, select SRS, then press ENTER ↵.

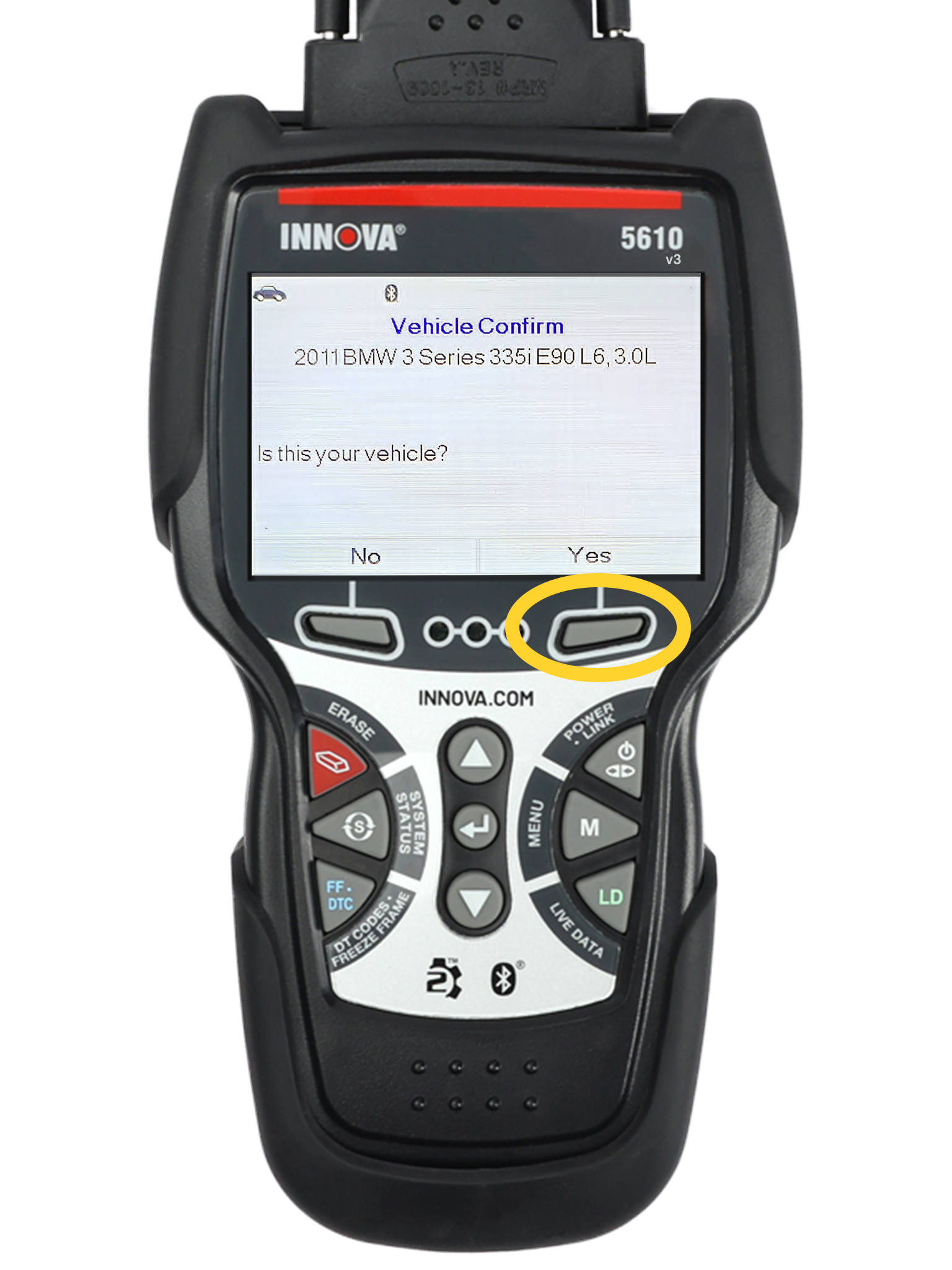

• Confirm your vehicle by pressing Yes.

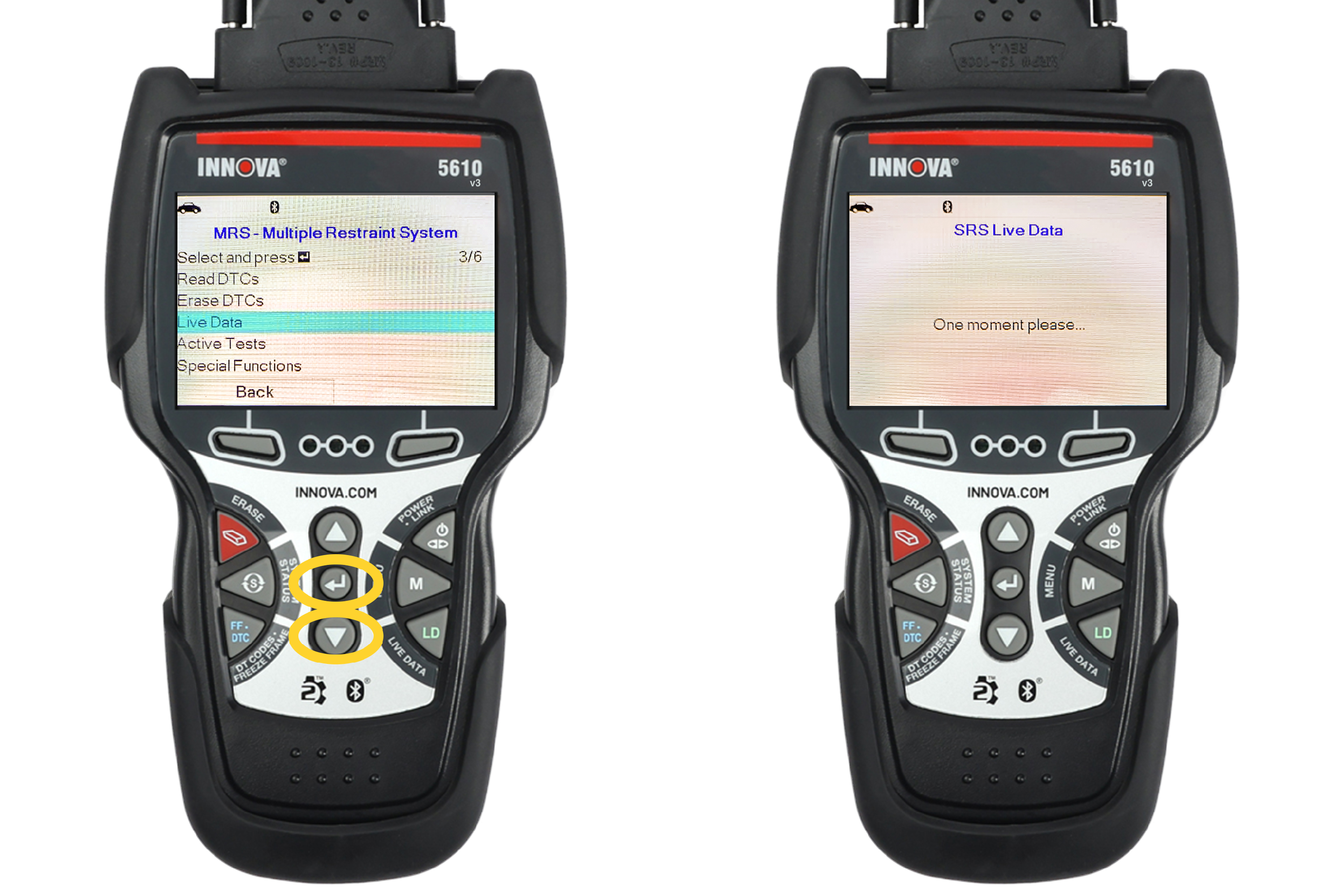

Step 3 - Select Live Data, then press ENTER ↵

• Select Live Data, then then press ENTER ↵.
• A One moment please message will display while your 5610 retrieves your SRS DTCs. Wait until the scan is 100% complete.
• If the 5610 fails to link to the vehicle’s computer, a Communication Error message will show. In this case:
  • Ensure your vehicle is OBD2 compliant.
  • Verify the connection at the DLC port, and that your ignition is turned ON.
  • Turn the ignition OFF, wait 5 seconds, then turn the ignition back ON to reset the computer.
  • Press the POWER/LINK button to continue.
  • If the 5610 cannot link to the vehicle’s computer after three attempts, the
  • Contact Technical Support
  • message will display.
  • Press the System Menu button to return to the System Menu.
  • Turn the ignition off, and disconnect your 5610 from the DLC.
  • Contact Technical Support for assistance.
  • Press the Back button to return to the System Menu.

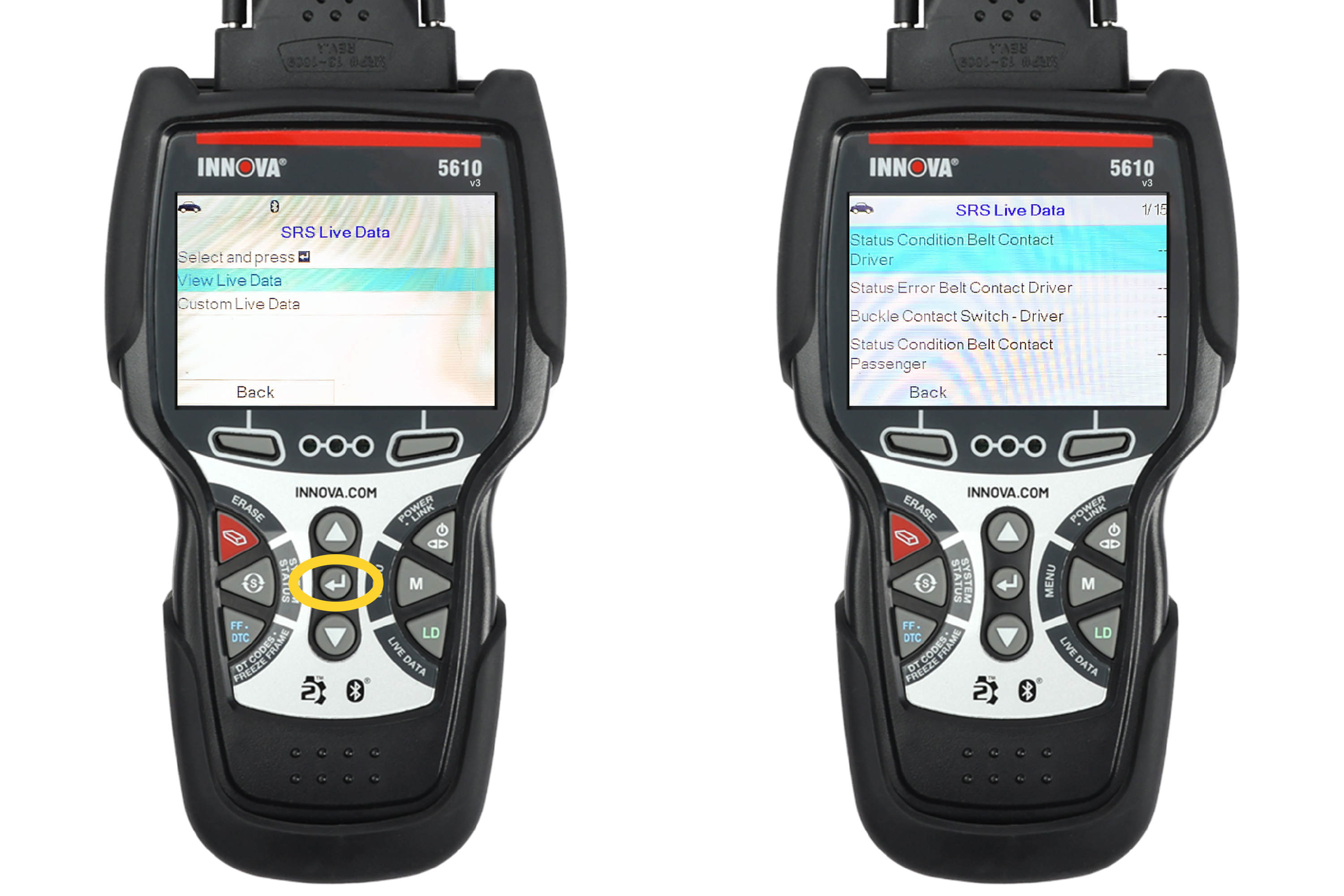

Step 4 - View your SRS Live Data

• Select View Live Data.
• The SRS Live Data will display.
• When you have finished viewing your SRS Live Data information, press the Back button to return to the System Menu.
