Innova 5610: TPMS Live Data

TPMS live Data & Other Live Data Options.

  • Note: Shows how to access check engine, ABS, SRS, TPMS, and Transmission live data with the Innova 5610.

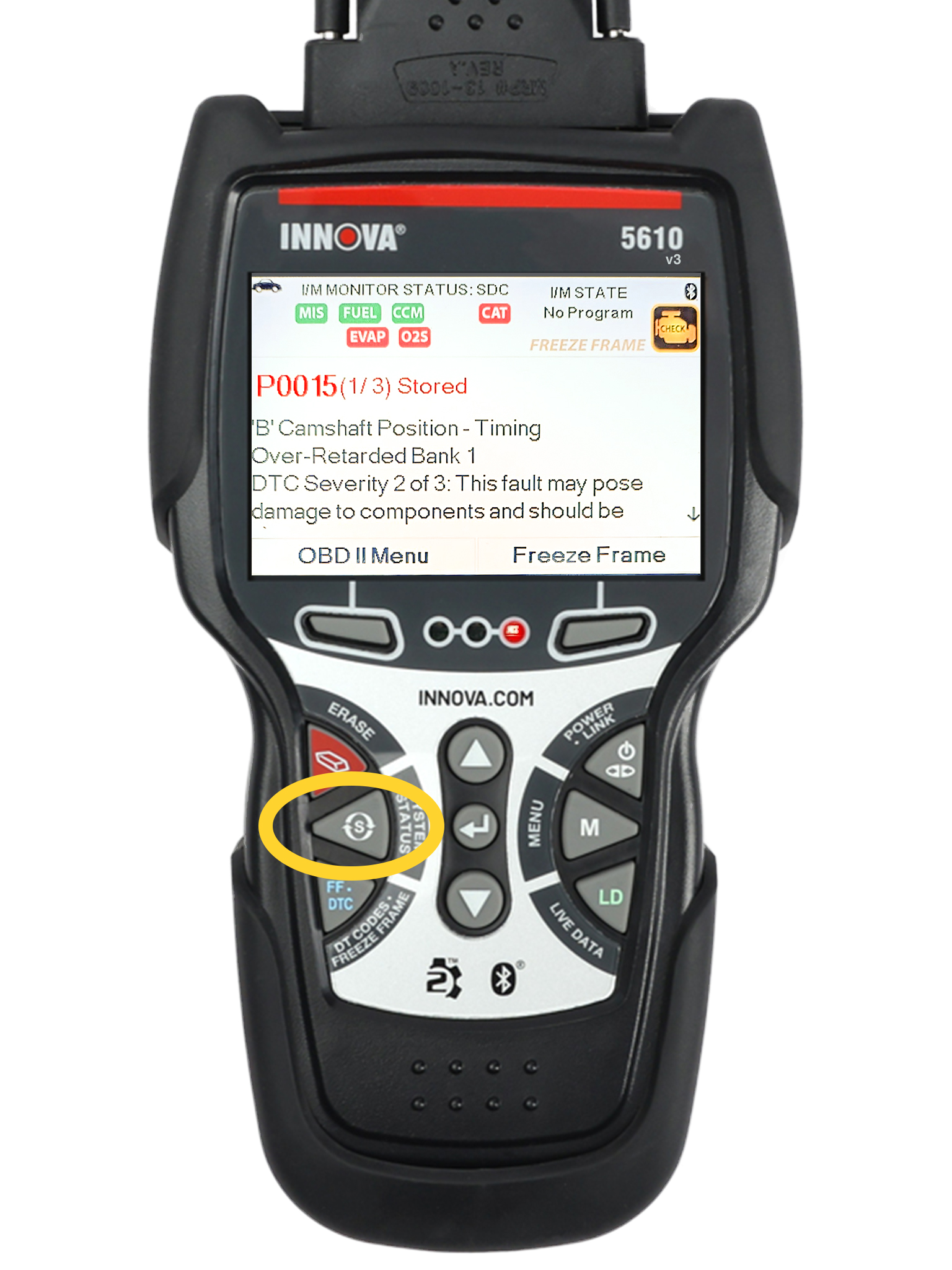

Step 1 - Press the System Status button.

  • To find TPMS Live Data, press the System Status button.

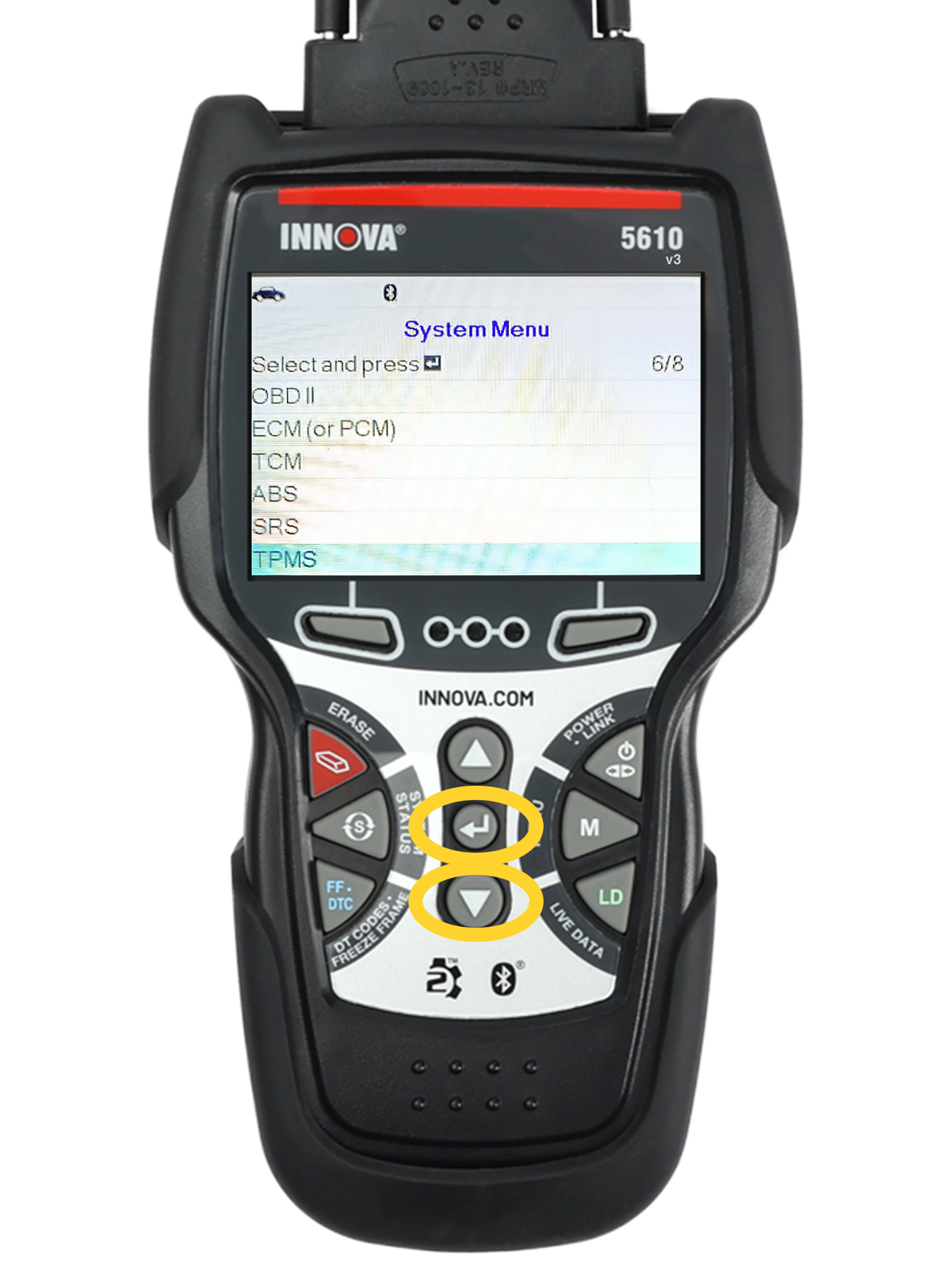

Step 2 - From the System Menu, select TPMS.

  • The System Menu will display.

    Scroll through the option by pressing the DOWN ▼ button and select the TPMS option.

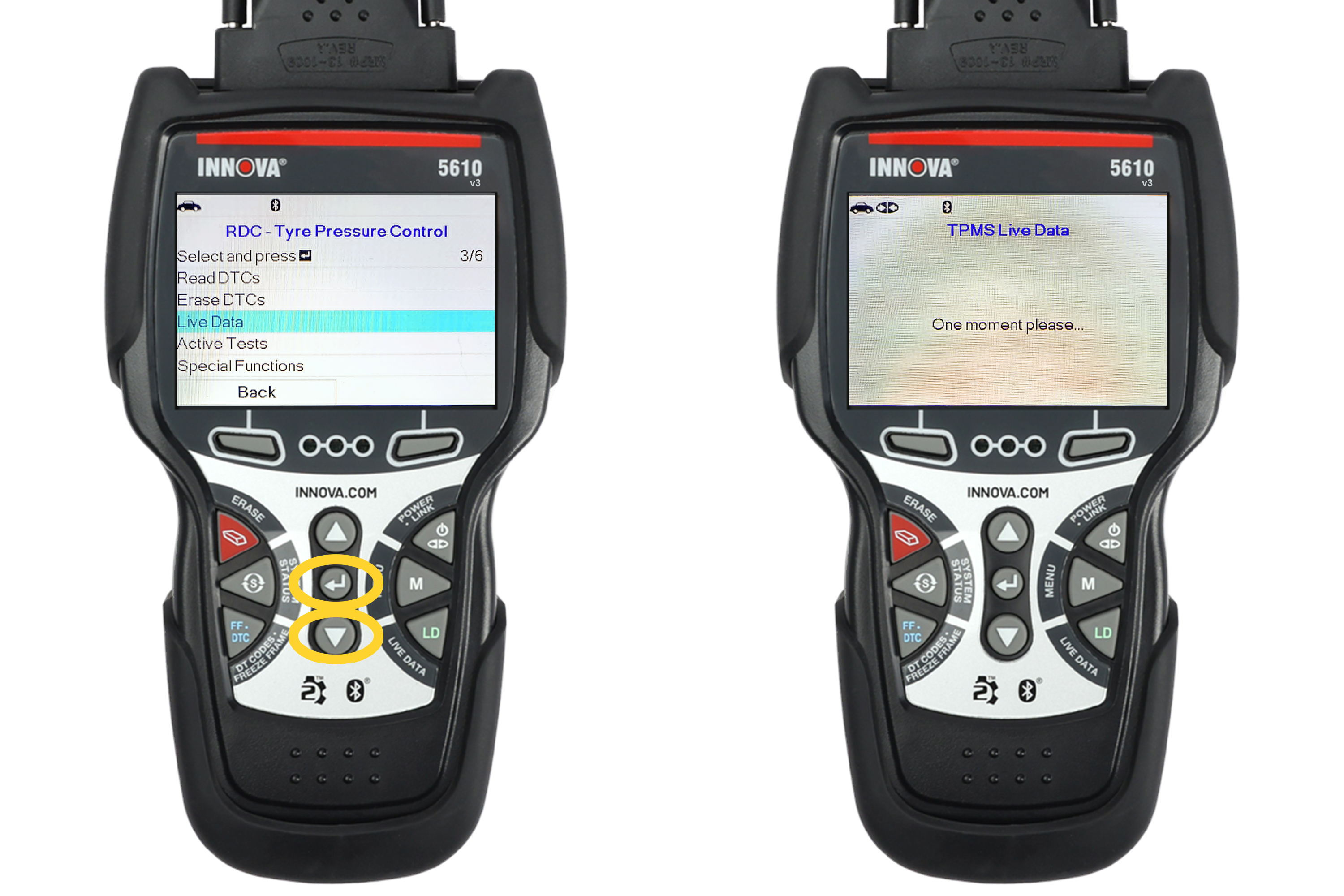

Step 3 - While TPMS is highlighted, press the Live Data button.

  • While the blue bar is on top of TPMS, press the LD button (Live Data).

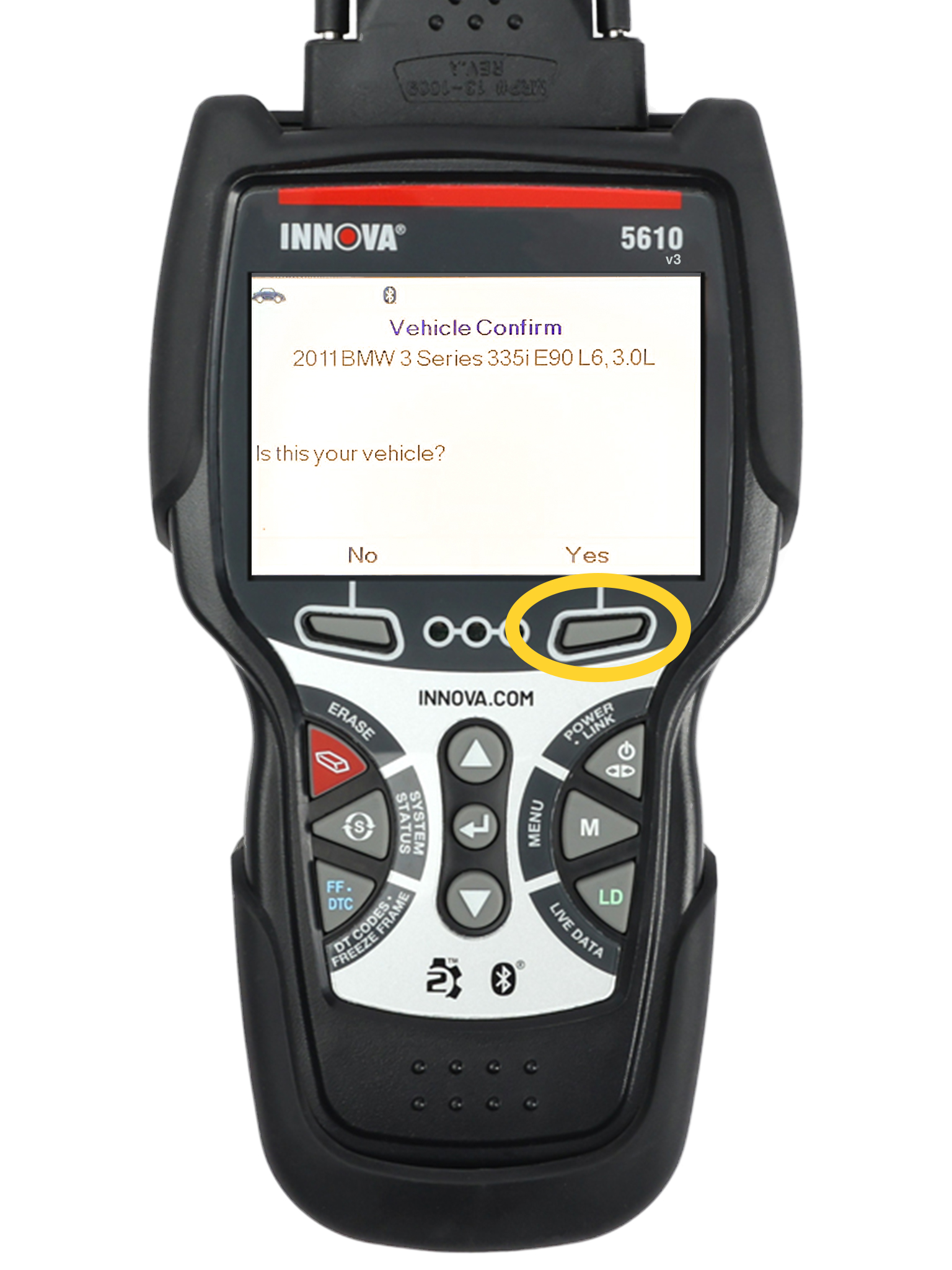

  • Confirm your vehicle by pressing Yes.
  • A One moment please message will display.

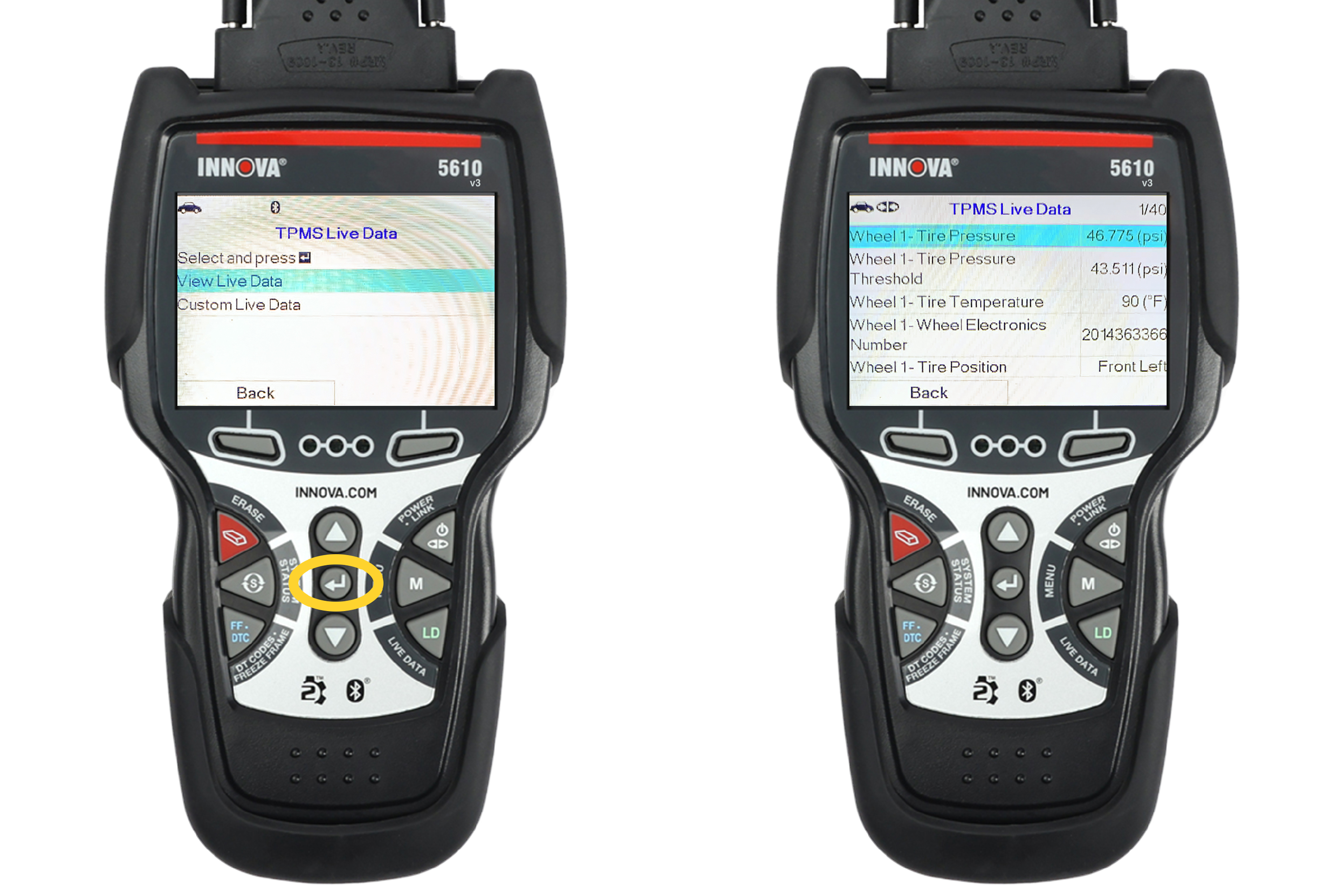

Step 4 - View your TPMS Live Data.

  • TPMS Live Data will display.

    When you have finished viewing your TPMS Live Data information, press the Back button to return to the System Menu.
