Innova 5610: Misfire Counts in OEM Enhanced Powertrain Live Data

Viewing your Vehicle's Misfire Counts

When OEM Enhanced is chosen from the System Menu, the 5610 retrieves OEM Enhanced DTCs from the vehicle’s computer. But that's not all that it can do. There is another feature that can be used and that's OEM Enhanced Powertrain Live Data.

OEM Enhanced Powertrain Live Data lets you view parameter identifications (PIDs) like crankshaft position sensor, engine oil pressure, cylinder knocks, and cylinder misfire counts just to name a few. For example, a 2015 Chevy Equinox 2.4L supports 131 different PIDs in OEM enhanced powertrain live data, including the ones listed above.

OEM Enhanced Powertrain Live Data

• OEM Enhanced Powertrain Live Data for a 2015 Chevy Equinox 2.4L supports 131 parameter identifications (PIDs). This video demonstrates scrolling through the Innova 5610 looking at the PIDs.

  As you scroll through the different PIDs, the scanner may take a few seconds to load the values.

  You can see the misfire count data which starts at parameter 92/131. Time stamp 2:06.

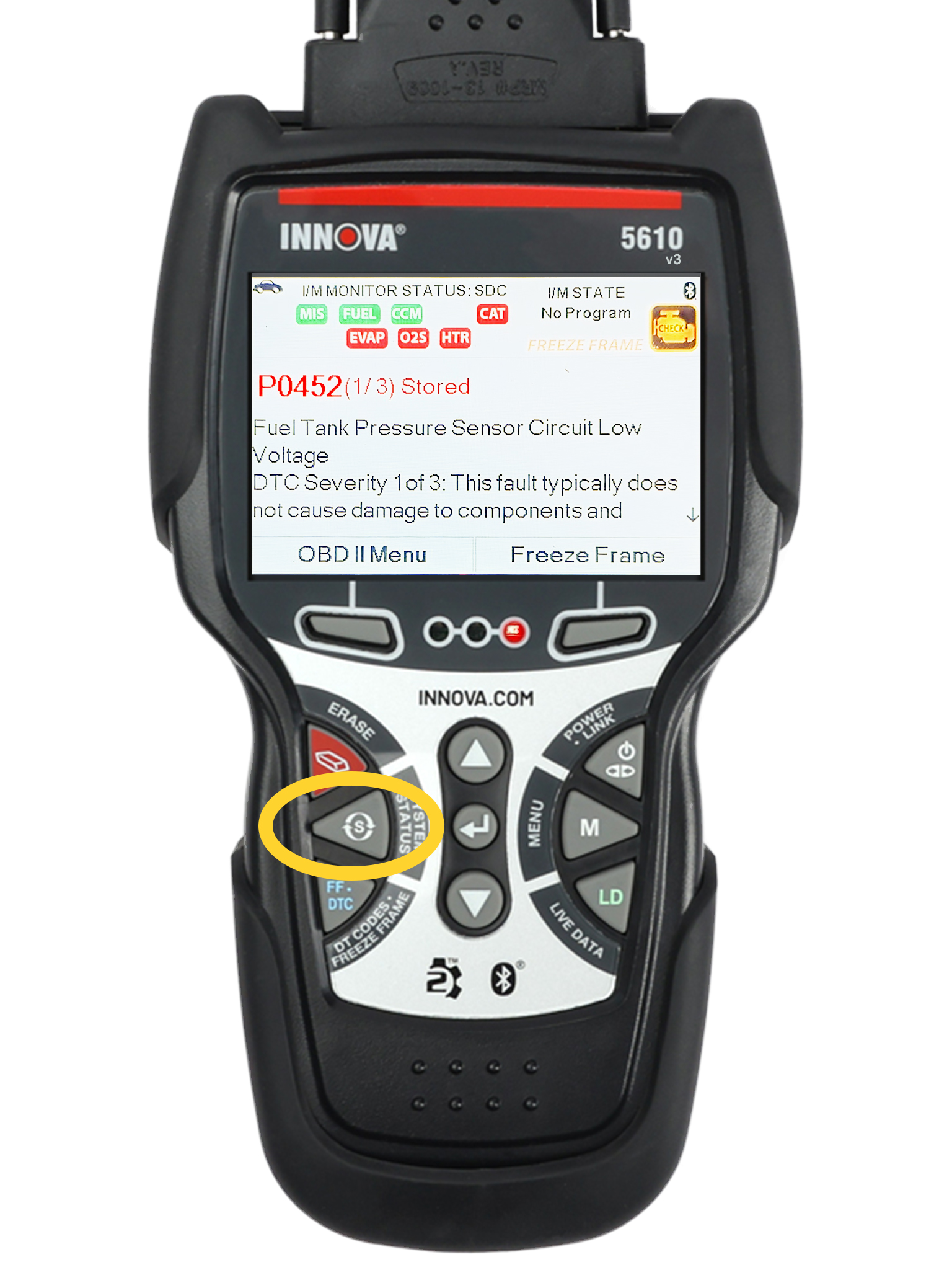

Step 1 - Once linked to vehicle, press the System Status button.

• Press the System Status button to access more options.

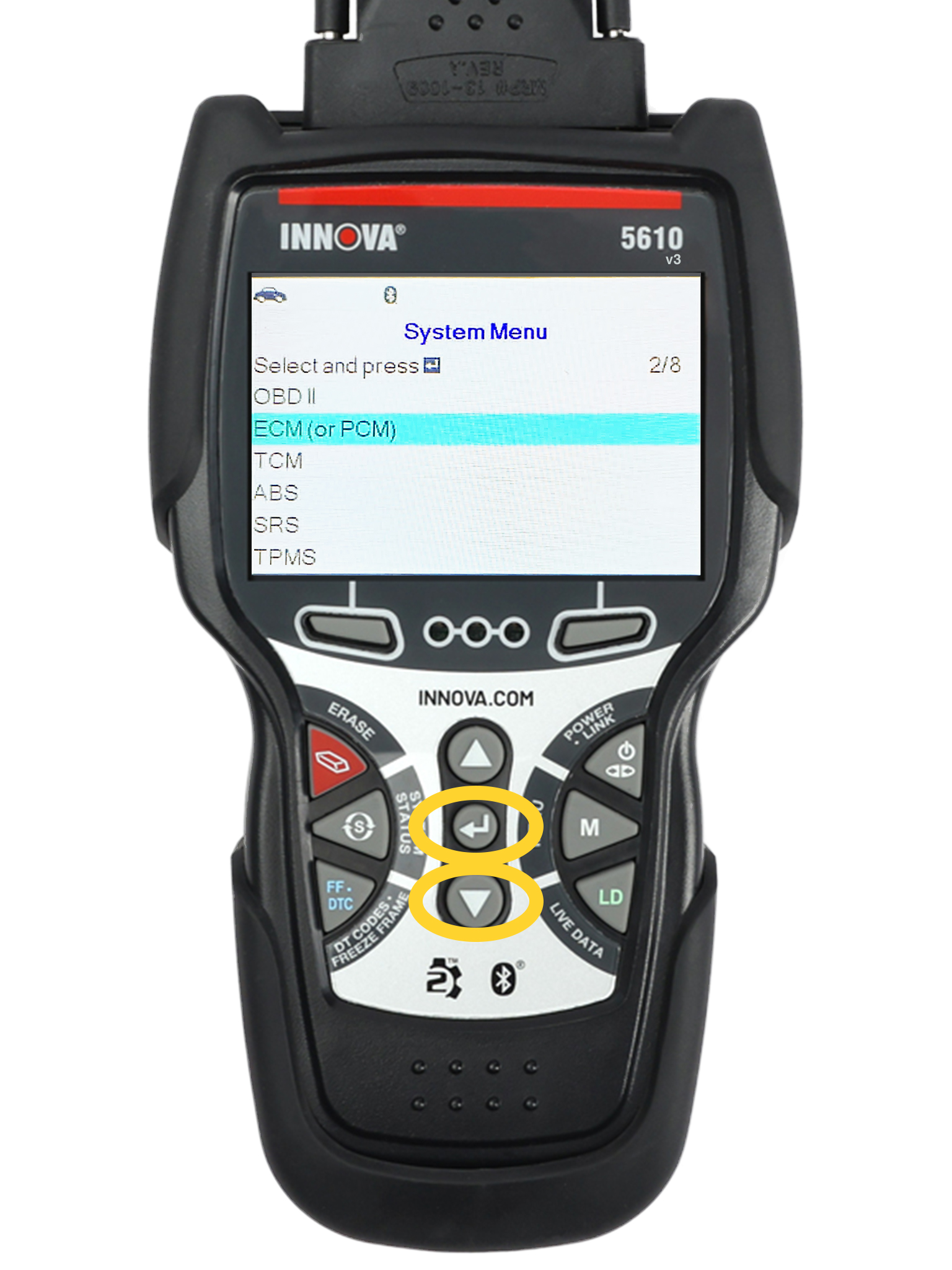

Step 2 - Press DOWN ▼ to scroll to OEM Enhanced then press ENTER ↵.

• Scroll through the options in the system menu by pressing the DOWN ▼ button, then select the OEM Enhanced option by pressing ENTER ↵.

  Note: The vehicle being demonstrated is a 2015 Chevy Equinox 2.4L. That's why it shows Chevrolet OEM Enhanced.

• The Innova 5610 will display any OEM Enhanced codes.

  Press the UP ▲ and DOWN ▼ buttons to scroll through the OEM codes if any are present.

  Note: There doesn't need to be any codes for OEM Enhanced Live to function.

Step 3 - Press the LD button to view OEM Enhanced Live Data.

• OEM Live Data - Press the LD button to view OEM Enhanced Live Data.

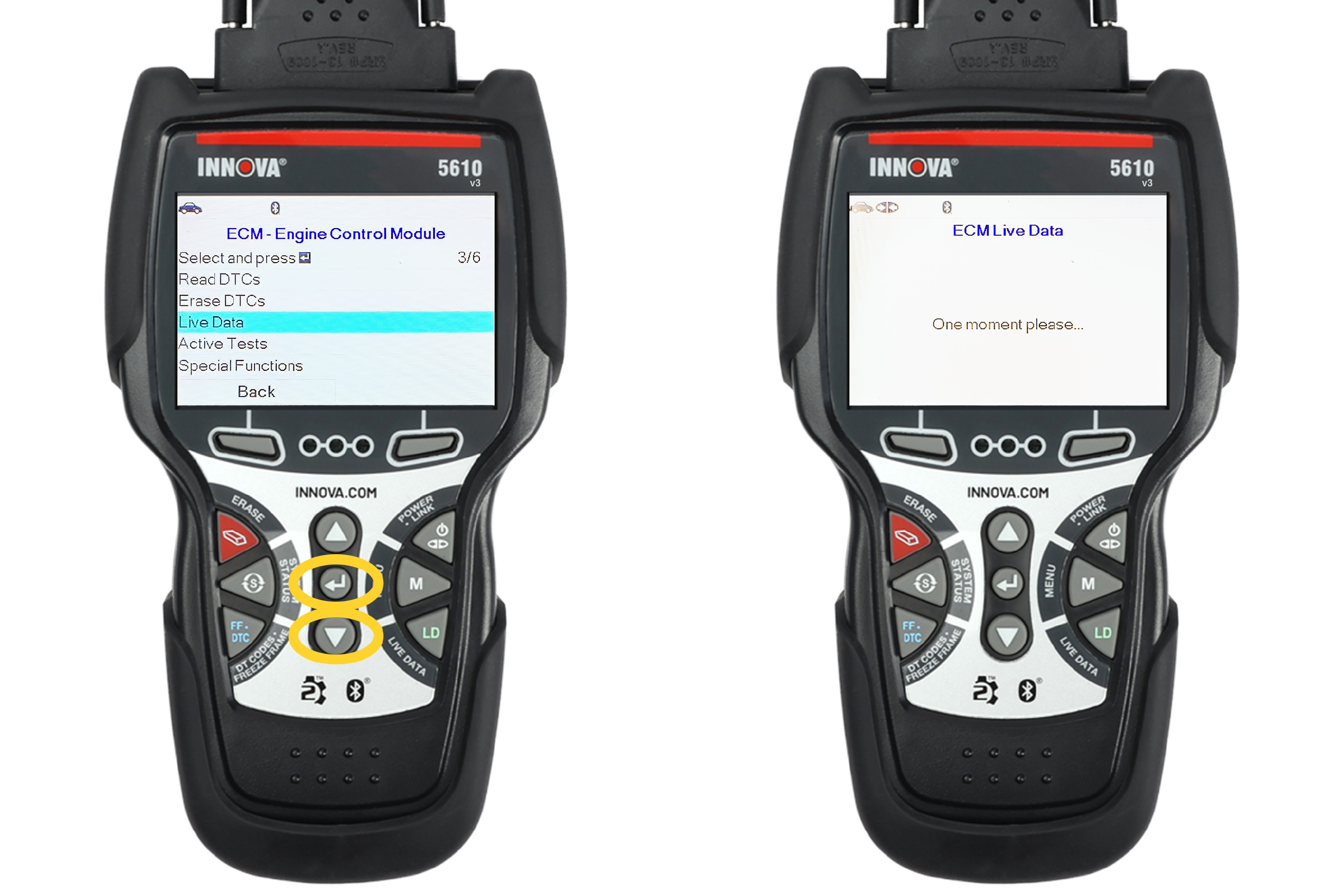

  A message, one moment please, will display while your 5610 retrieves the data. Wait until the scan is 100% complete.

Step 4 - Select the Powertrain Live Data option.

• Select the Powertrain Live Data option.

  As you can see, Transmission Live Data is an option as well.

Step 5 - Select the Powertrain Live Data option.

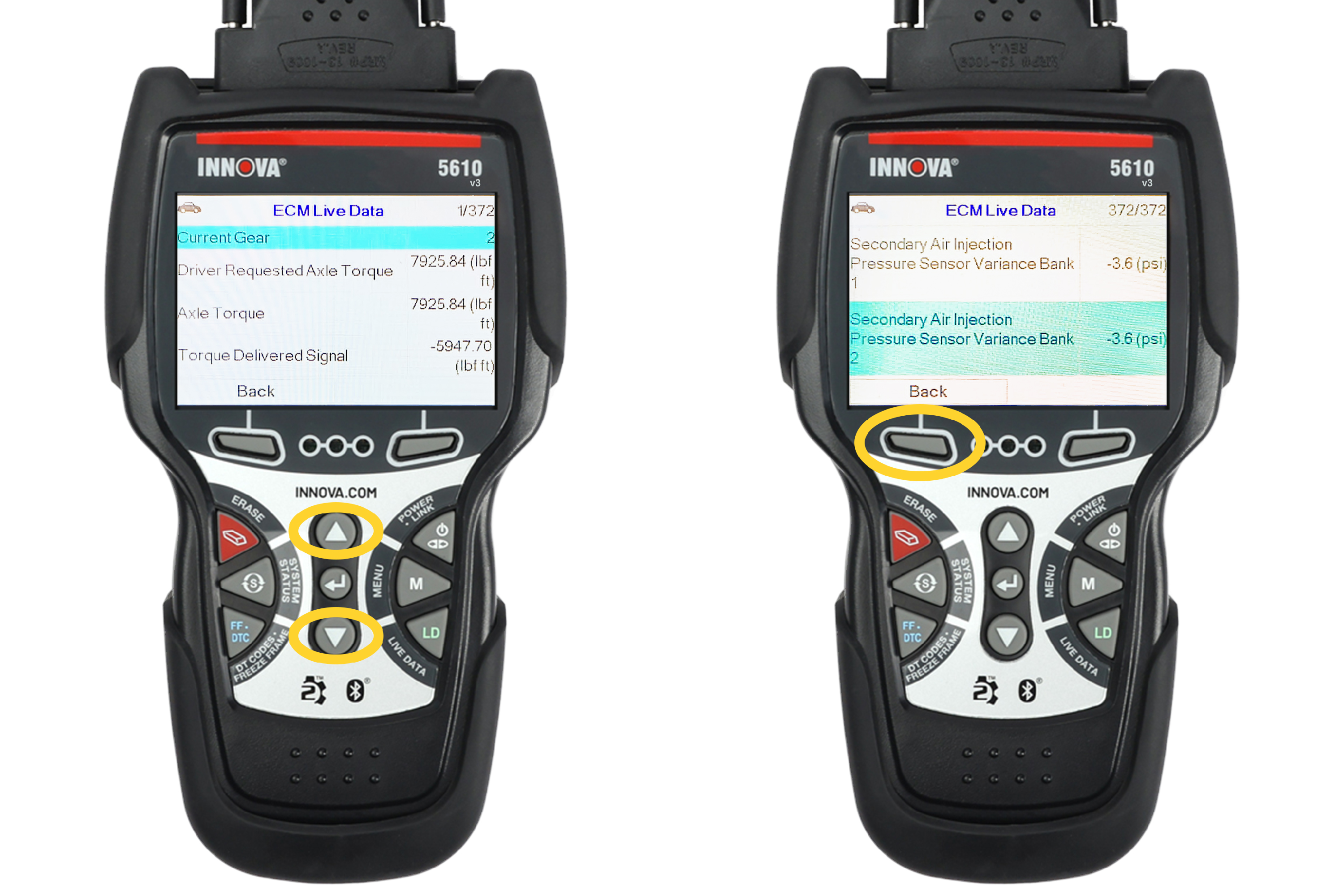

• As you scroll down, you can see all the supported parameter identifications (PIDs). This is starting at 1/131 of the PIDs.
• Here is an image showing Misfire Count Data. This is at 101/131 of the PIDs.
