Innova 5610: Viewing Drive Cycle Procedures

Viewing Drive Cycle Procedures

Performing a Drive Cycle for a monitor requires that the vehicle is driven in such a way that all the required Enabling Criteria for the monitor to run and complete its diagnostic testing are met. You can use the 5610 to view the Drive Cycle procedures for a selected monitor.

Tutorial Video for Viewing Drive Cycle Procedures

Step 1 - Press the MENU button.

To view your vehicle's Drive Cycle Procedures, press the MENU button.

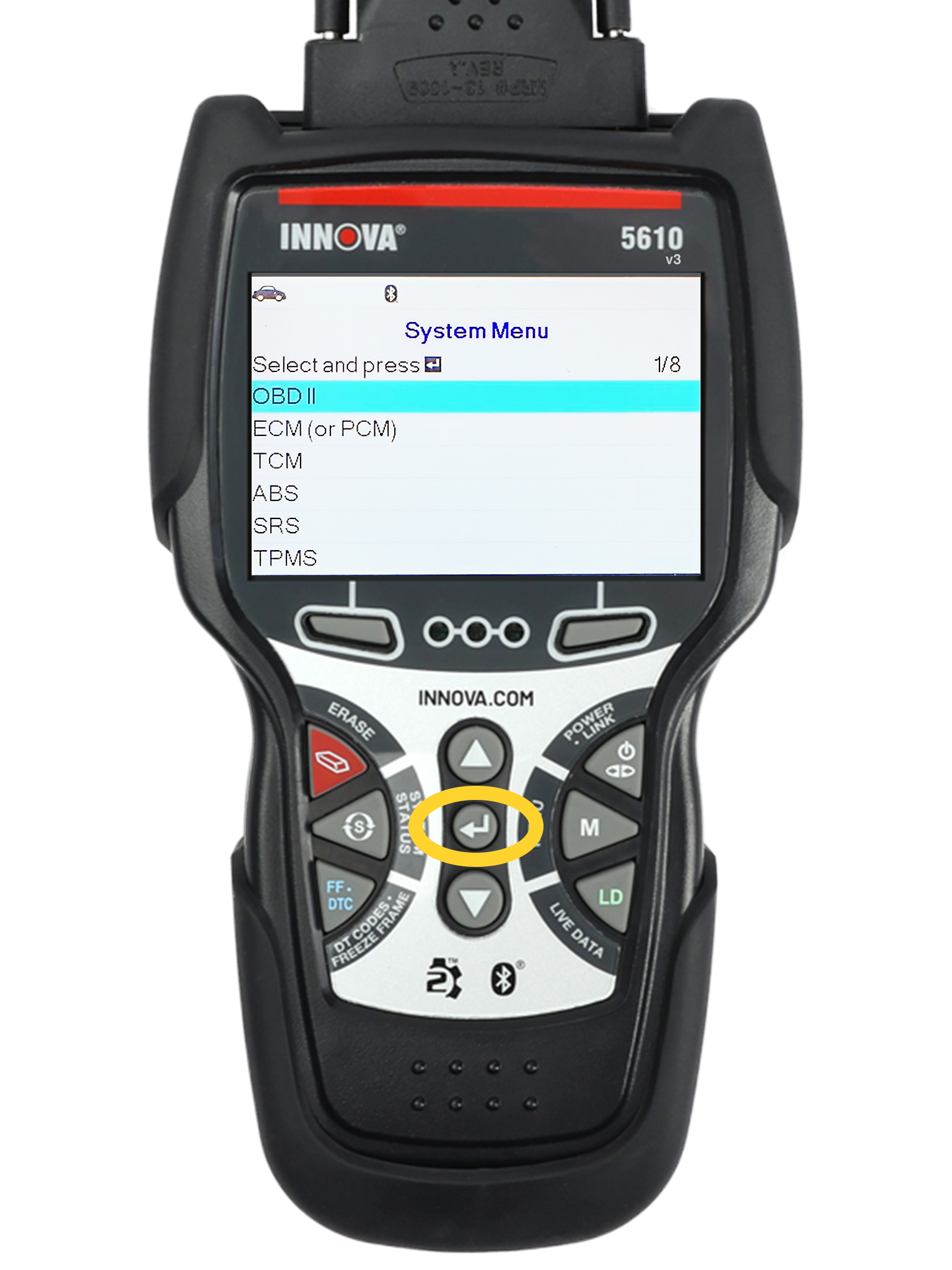

Step 2 - Select Drive Cycle Procedures, then press ENTER ↵.

The Main Menu will display.

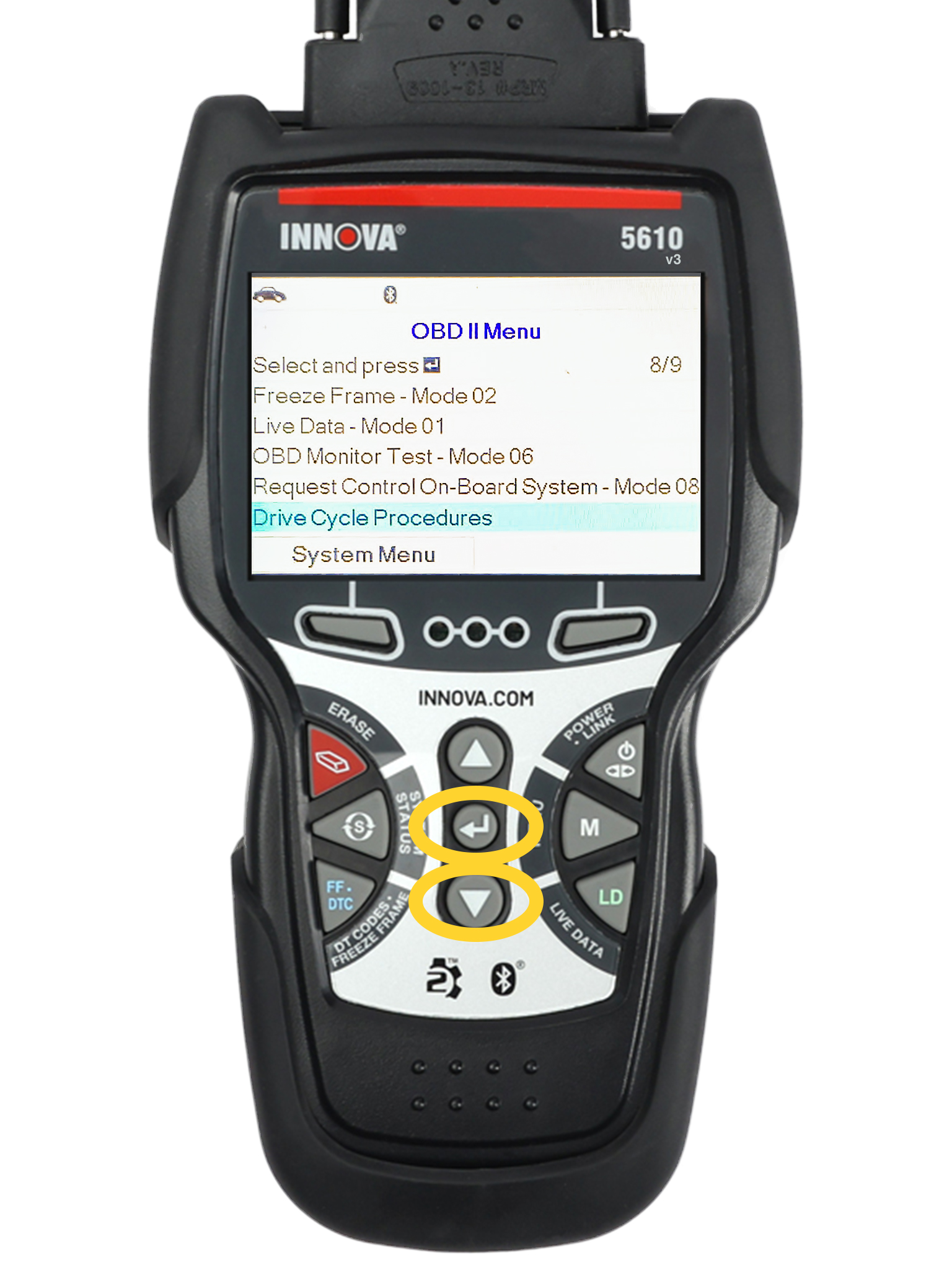

Select Drive Cycle Procedures, then press ENTER ↵.

Step 3 - Select incomplete monitors or complete monitors, as desired, then press ENTER ↵.

When the Monitor status has been retrieved, the Drive Cycle Procedures menu will display.
Depending on the Monitor status, you can view Drive Cycle procedures for both Complete Monitors and Incomplete Monitors.
A list of available Monitors for the selected status will display.
If no Monitors for the selected status are detected, an advisory message will show.
Scroll down using the DOWN ▼ button.

Note: If Drive Cycle Procedures are not available for the vehicle, an advisory message will show.

Step 4 - Select the monitor for which you wish to view Drive Cycle Procedures, then press ENTER ↵.

Select the Monitor for which you wish to view Drive Cycle Procedures, then press ENTER ↵.
A One moment please message will display while the 5610 retrieves the requested Drive Cycle Procedure. The Drive Cycle Procedures screen for the monitor will display when the procedure has been retrieved.

Note: If a Drive Cycle Procedure for the selected monitor is not available, an advisory message will show.

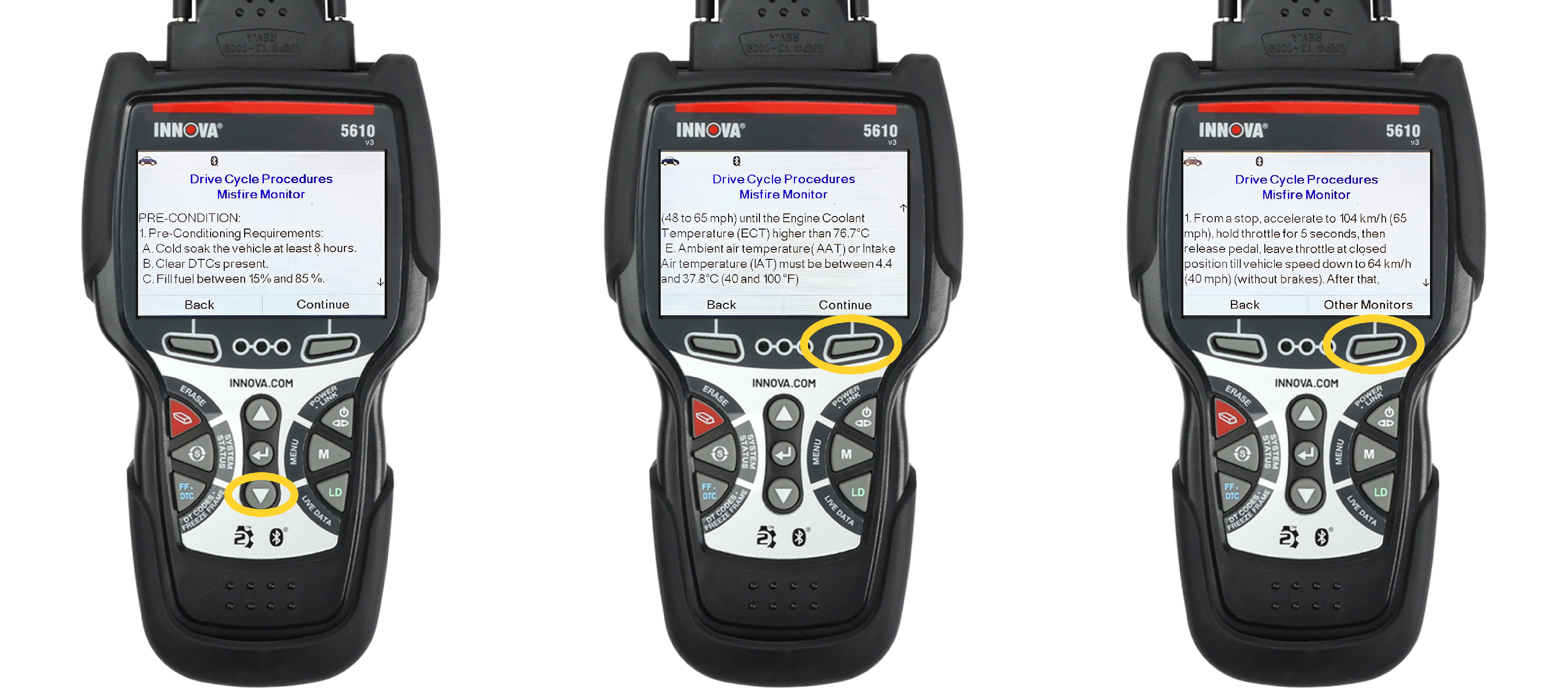

Step 5 - View the Drive Cycle Procedures.

The Drive Cycle Procedure screen will show the specific set of operating procedures that ensure the vehicle is driven in such a way that all the required Enabling Criteria for the Monitor to run and complete its diagnostic testing are met.
Scroll using the DOWN ▼ button until you are done with the last procedure.
When you are finished viewing the Drive Cycle Procedures, select Back to return to the Drive Cycle Procedures menu, or, press the MENU button to return to the Main Menu.
