Innova 5610: Performing a Service Check

Performing a Service Check

The Service Check function will let you check your vehicle's Odometer, Engine Oil Level, Oil Life Remaining, Transmission Fluid Temperature, Brake Pad Life, and Engine Coolant Level. (Coverage depends on year, make, model, and engine size of vehicle)

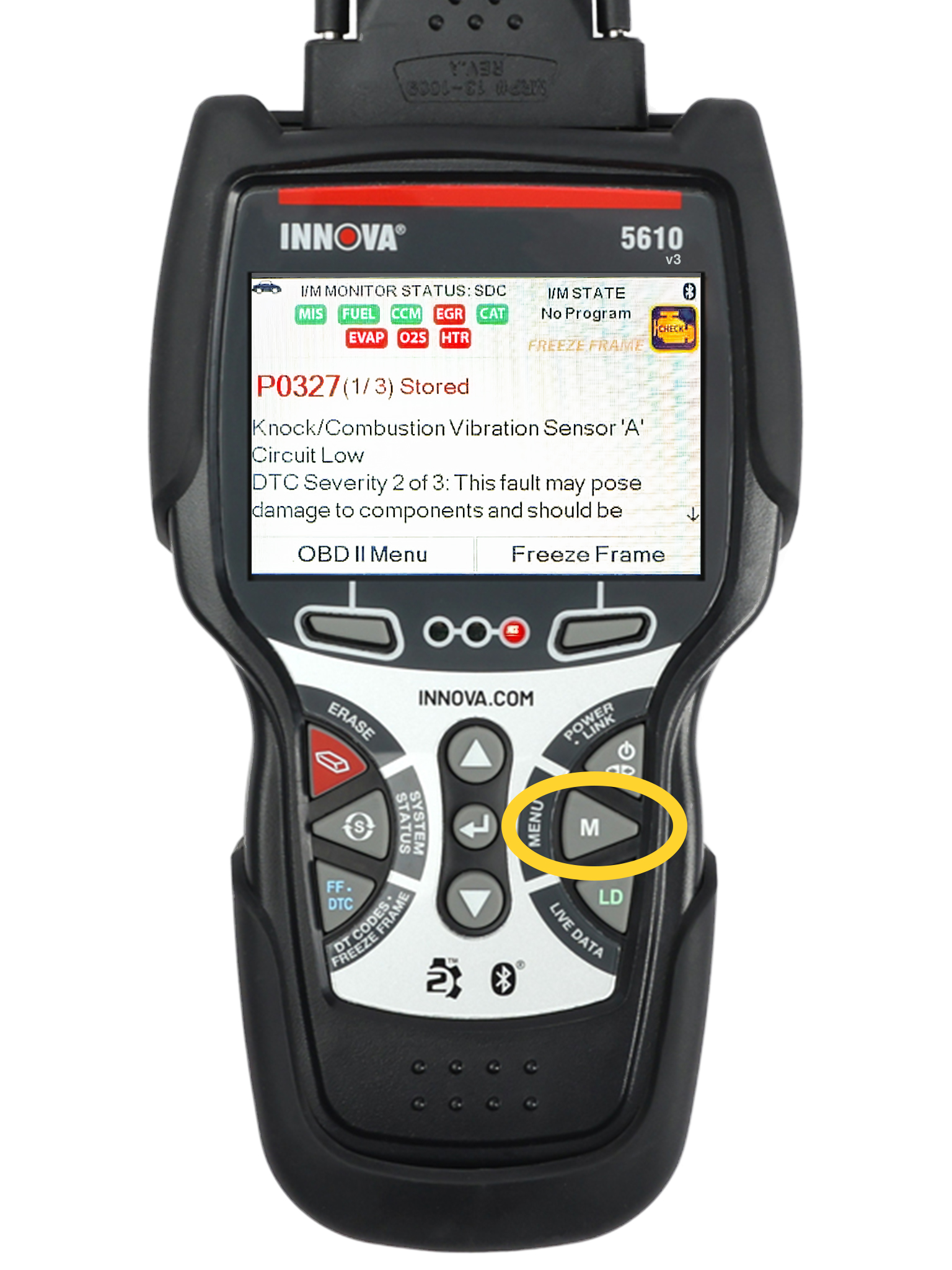

Step 1 - While linked to the vehicle, press the MENU button.

• To navigate to the Service Check feature, press the MENU button.

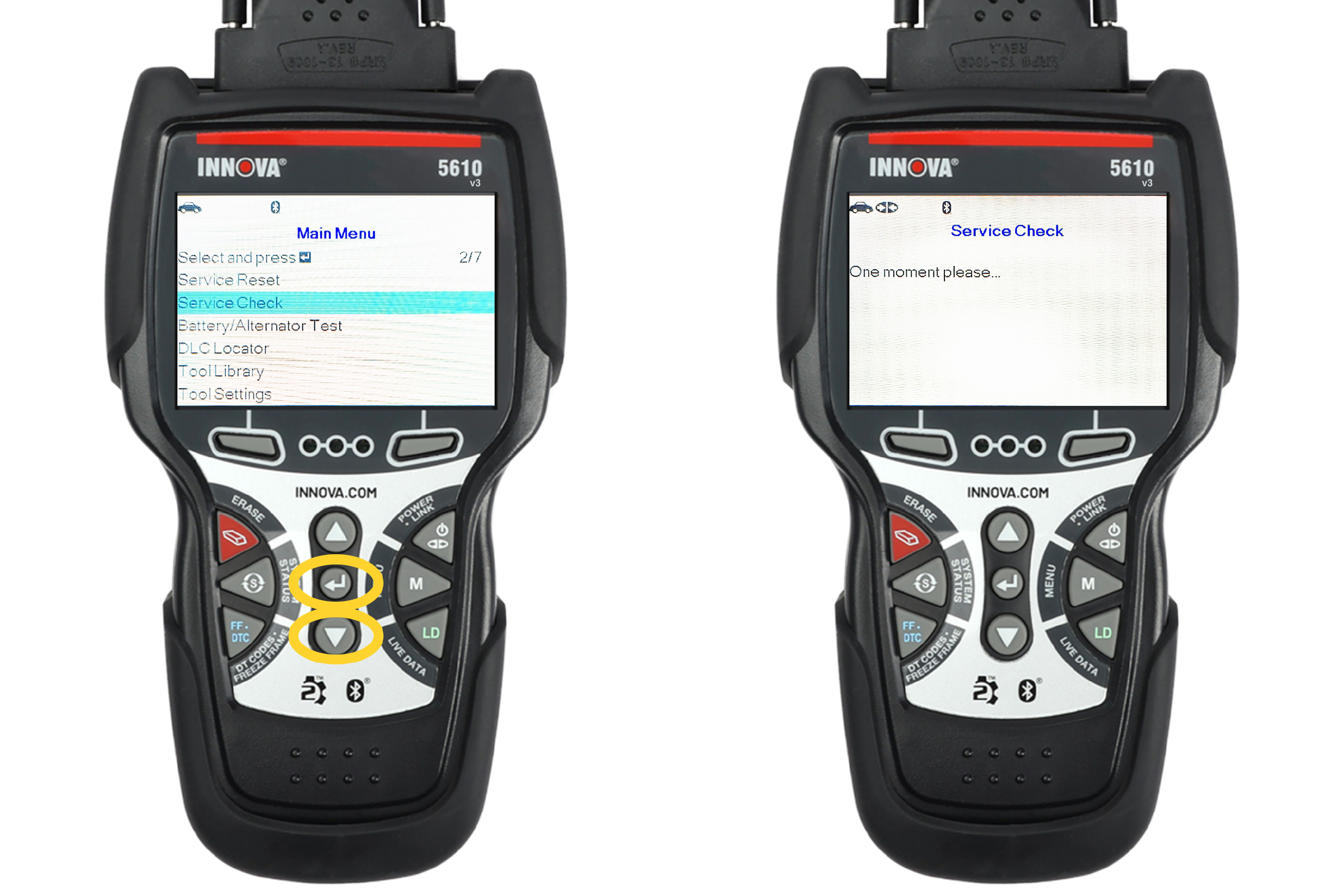

Step 2 - Select Service Check, then press ENTER ↵.

• The Main Menu will display.

  Scroll down the screen using the DOWN ▼ button to Service Check, then press ENTER ↵.

• A One moment please message will display.

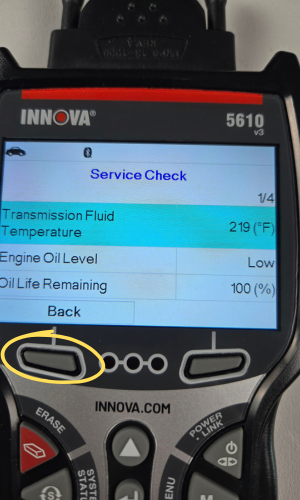

Step 3 - View your Service Check Information.

• The results of your Service Check will display.

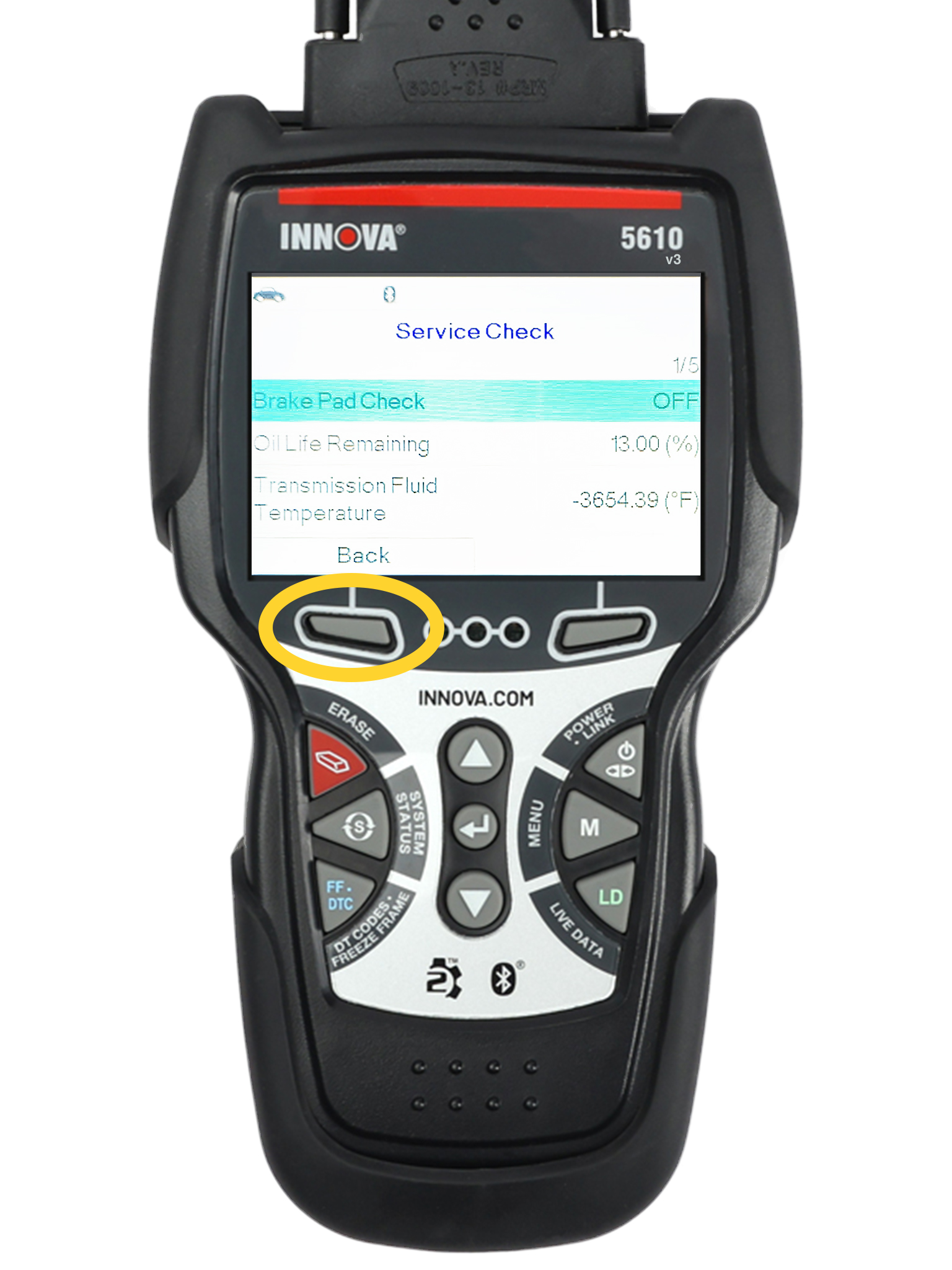

  When you have finished viewing your Service Check information, press the Back button to return to the Main Menu.
