Innova 5610: Performing a Steering Angle Sensor (SAS) Calibration

A Steering Angle Sensor (SAS) calibration using the Innova 5610 is a specialized service procedure that resets the vehicle's Steering Angle Sensor to a zero-degree baseline.

What the Steering Angle Sensor Does

The Steering Angle Sensor measures the position, angle, and turn rate of the steering wheel. This data communicates directly with safety and handling systems like:
  • Electronic Stability Control (ESC)
  • Anti-lock Braking Systems (ABS)
  • Lane Keeping Assist (LKA) and Advanced Driver Assistance Systems (ADAS)

When You Need a Calibration

A calibration is required when the computer loses its center baseline, which commonly happens after:
  • Getting a wheel alignment
  • Replacing steering or suspension components (affecting toe or thrust angle)
  • Being involved in a collision or disconnecting the battery/steering column

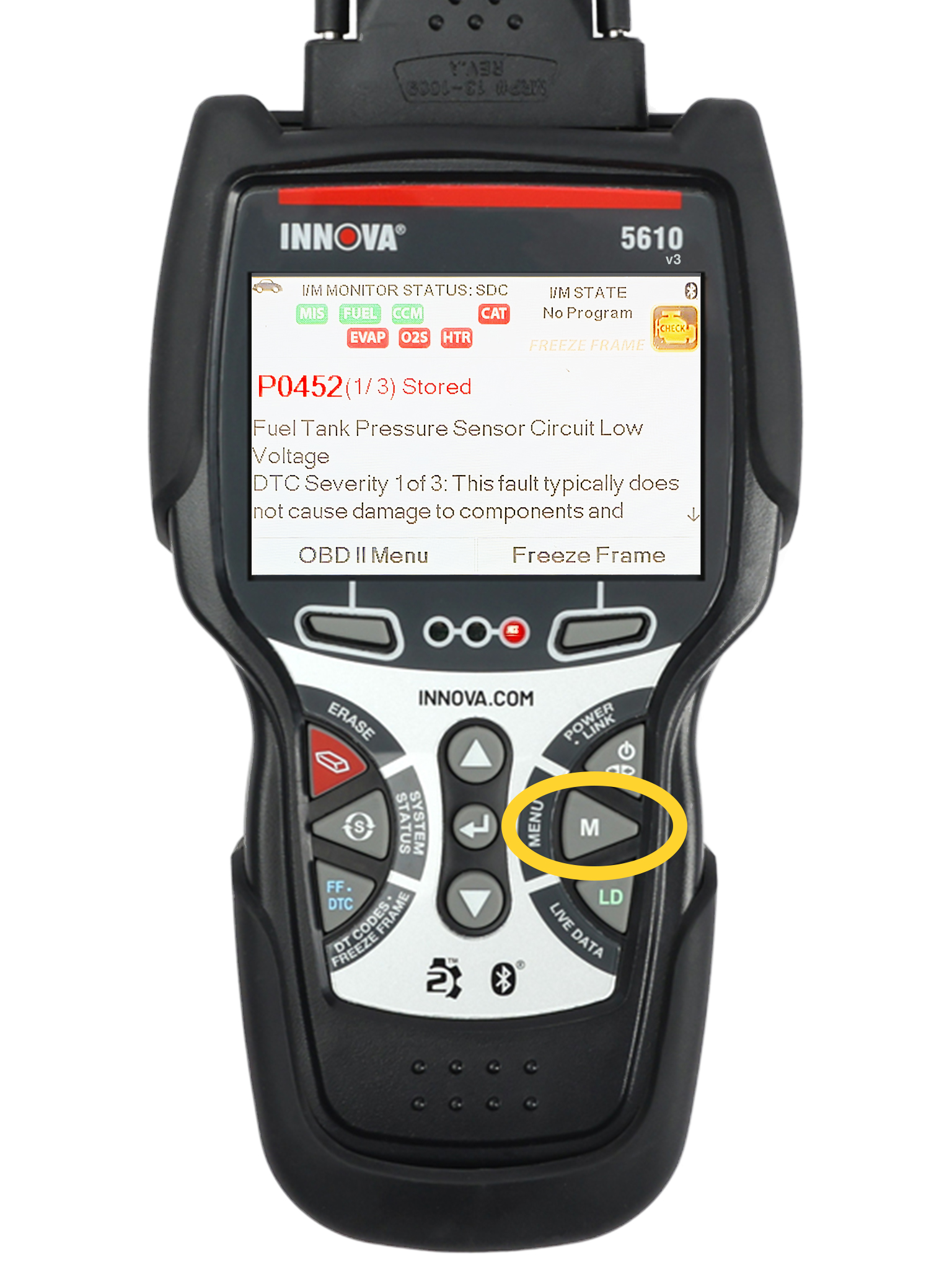

Step 1 - Press the M button

  • Press the M button to access the Menu.

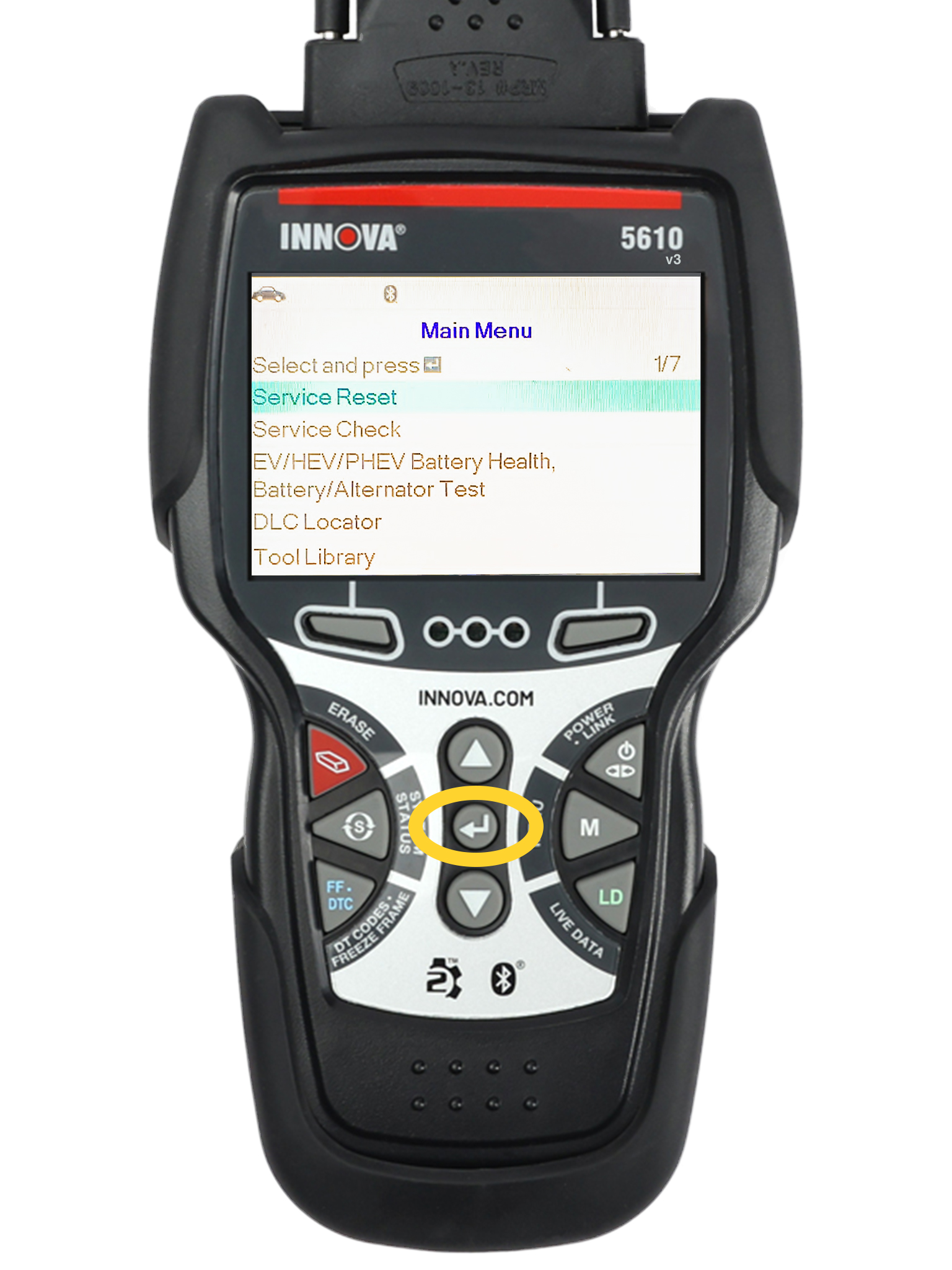

Step 2 - Select Service Reset

  • Select Service Reset, then press ENTER ↵.

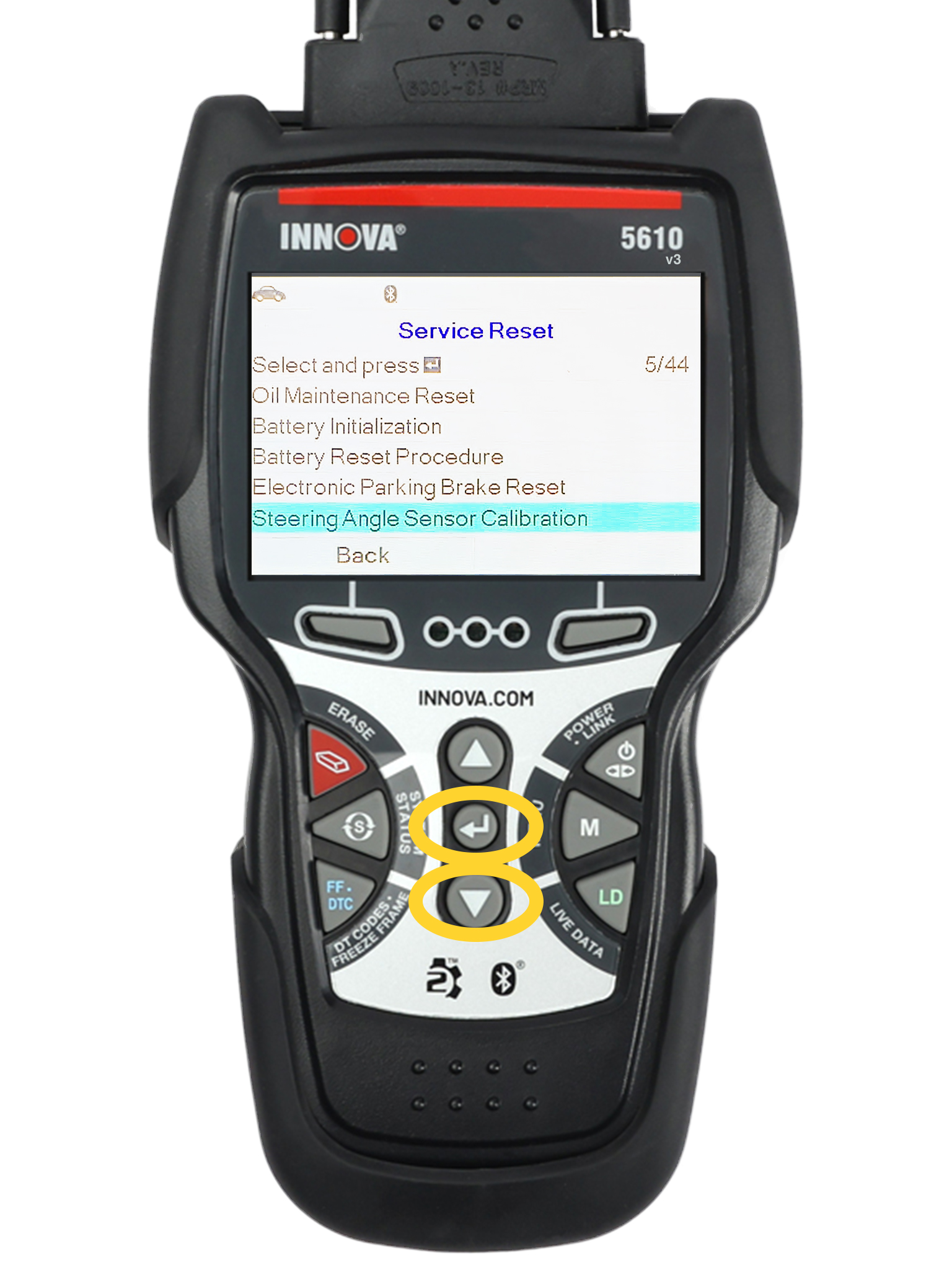

Step 3 - Select Steering Angle Sensor Calibration

  • Select Steering Angle Sensor Calibration, then press ENTER ↵.
  • Select Exit to return to the Main Menu.

Note: If SAS calibration is not supported by the vehicle under test, an Advisory message displays.

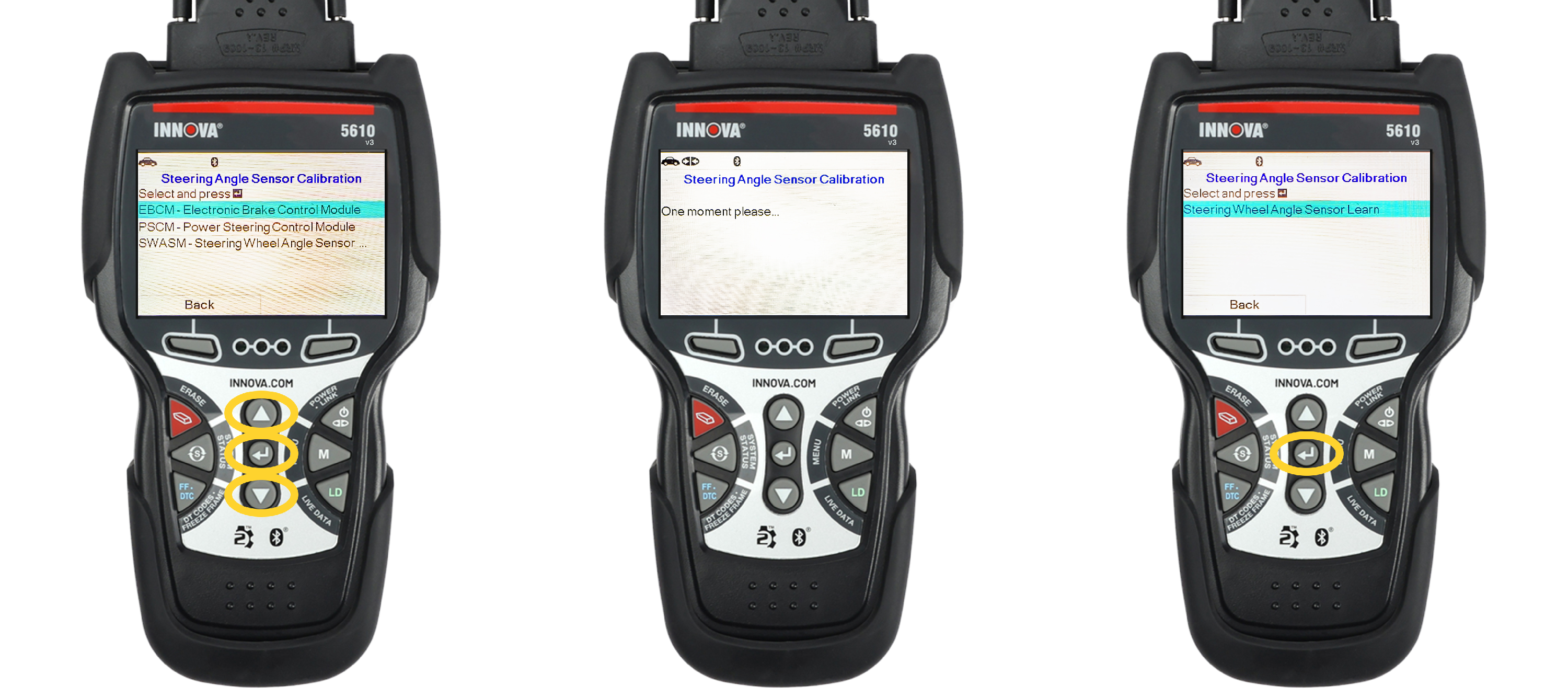

Step 4 - Select the module, then procedure

  • Select the ABS/Traction Control Module, then press ENTER ↵.
  • Select the desired options and/or procedures displayed.

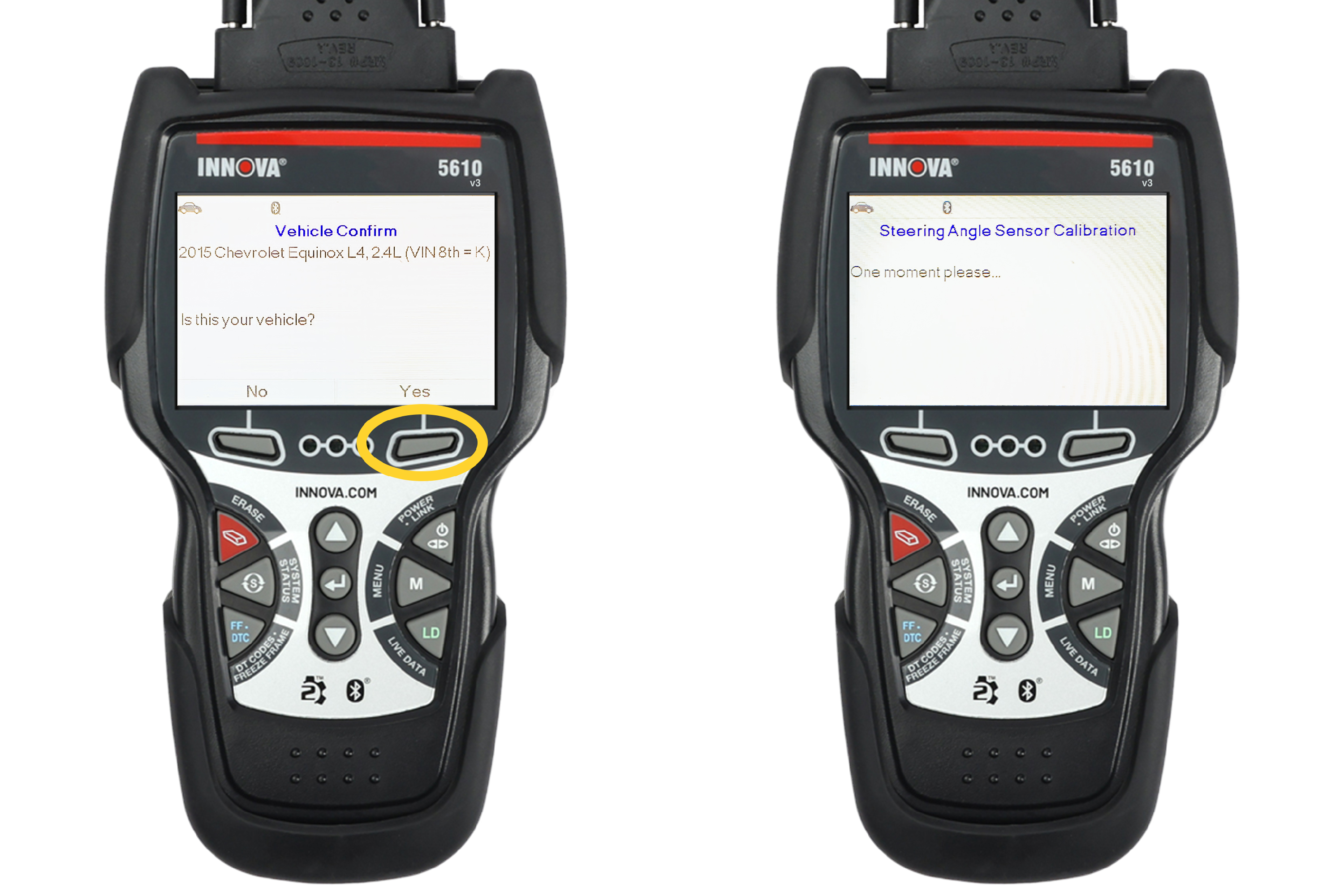

  • Wait for the device to scan your vehicle.
  • Press the Back button to return to the previous screen.

NOTE: The vehicle used in this demonstration is a 2020 Ford F150.

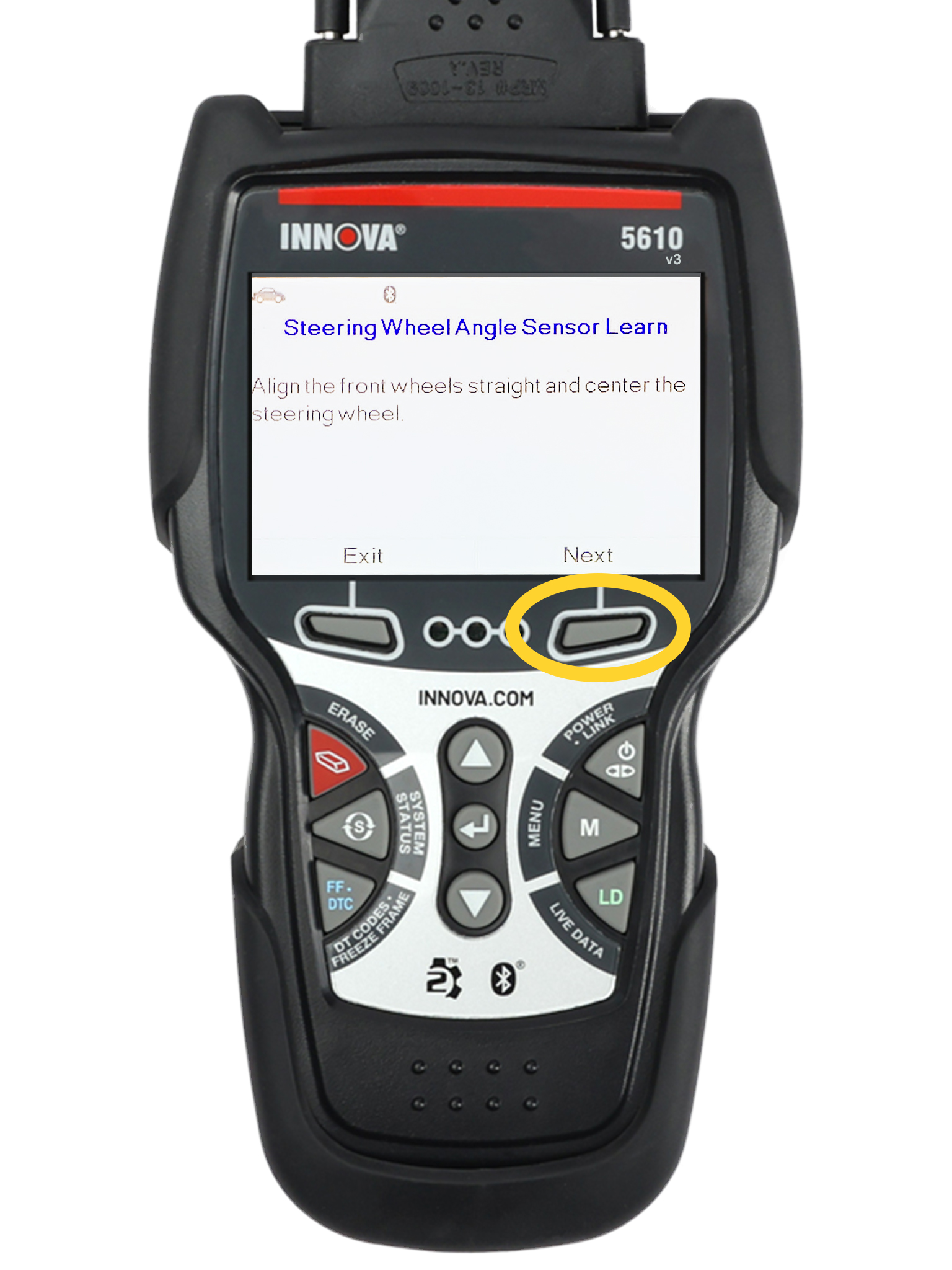

Step 5 - Follow the instructions displayed on screen

  • The selected option will display instructions for the procedure.
  • Use the UP ▲ & DOWN ▼ buttons to navigate through the instructions.
  • Press the Continue button to proceed.
  • Press the Back button to return to the previous screen.

Step 6 - Follow the procedures on screen

  • A Status screen displays as each phase of the calibration procedure is successfully completed.
  • Depending on the year, make, & model of vehicle, the status screens may be different & amount of status screens may vary.
  • For this vehicle, a 2020 Ford F150, you need to Calibrate Longitudinal Acceleration Sensor.
  • Press the Back button to return to the previous screen.
  • Set the ignition switch to ON, then press the Continue button to Calibrate Longitudinal Acceleration Sensor.

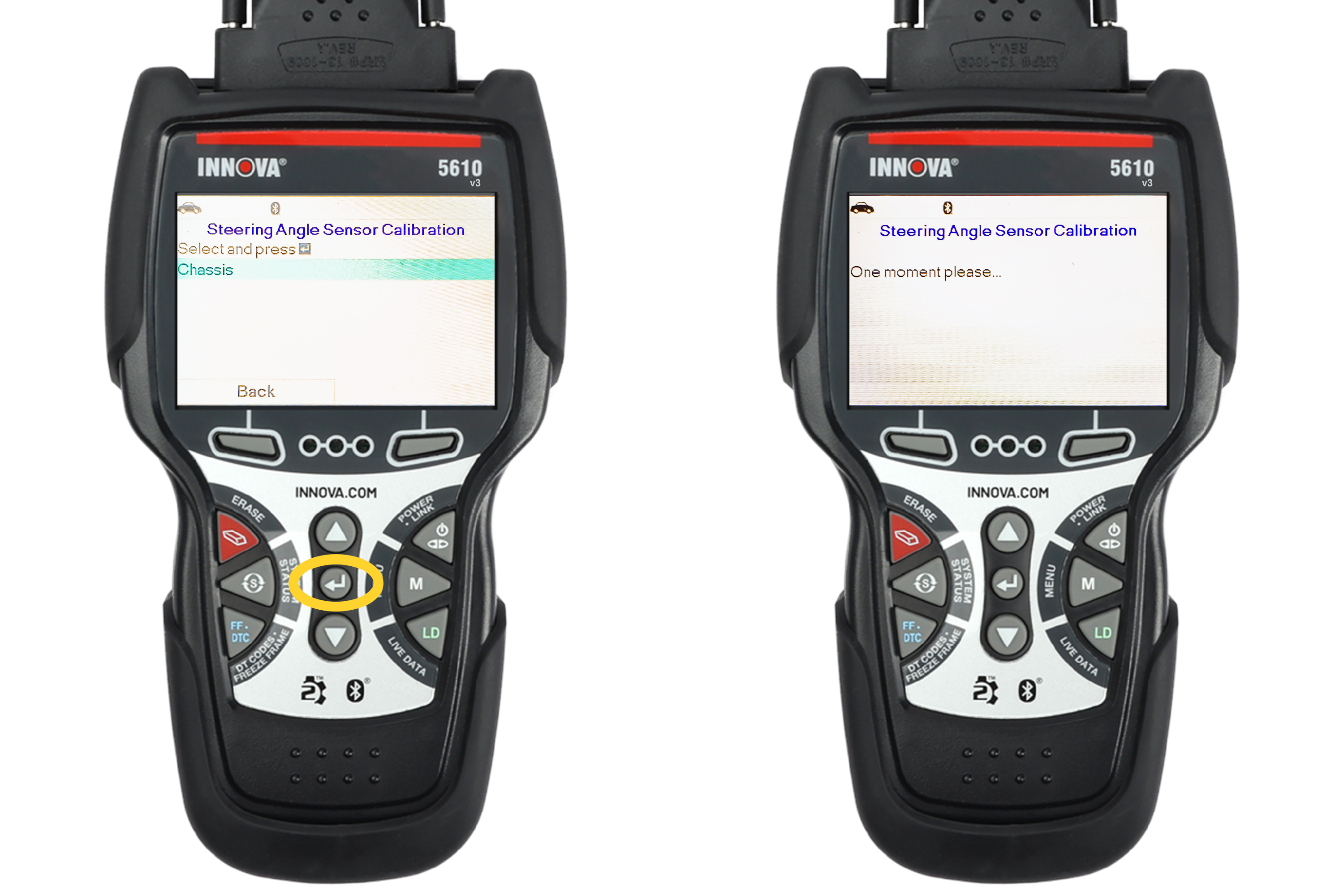

  • Once the Continue button is pressed, a One moment please... message will display while the calibration is performed.
  • A Results screen will display when the calibration has been completed.
  • Press the EXIT button to return to the Service Reset menu.
