Innova SD35 SD-Advisor: Scan Individual Modules

Purpose

To guide you on how to perform OEM-level diagnostics on your vehicle by scanning the individual modules on your SD35 SD-Advisor Tablet Scan Tool.

Introduction

The OEM Diagnostics function allows you to perform enhanced, OEM-level diagnostics not available over generic OBD2. It provides the ability to retrieve “enhanced” DTCs for ABS, Transmission, and Engine Control Modules. You can even provide a comprehensive Vehicle Inspection report that shows the complete Diagnostic Report, Customer Report, and Collision Industry Report – offering a complete overview of the vehicle’s current health status.

The Scan All Systems option on the SD35 SD-Advisor Tablet Scan Tool allows you to perform a diagnostic check on a single module.

Procedure

Step 1 - Connect the Innova SD35 SD-Advisor Tablet Scan Tool to the vehicle and select the 'OEM Diagnostics' function.

• First, connect the Innova SD35 SD-Advisor Tablet Scan Tool to your vehicle via the Diagnostic Link Connector (DLC) to retrieve the vehicle's information.
• From the Home Screen, select 'OEM Diagnostics.'

Step 2 - Select a module from the available list of modules on the OEM Diagnostics screen.

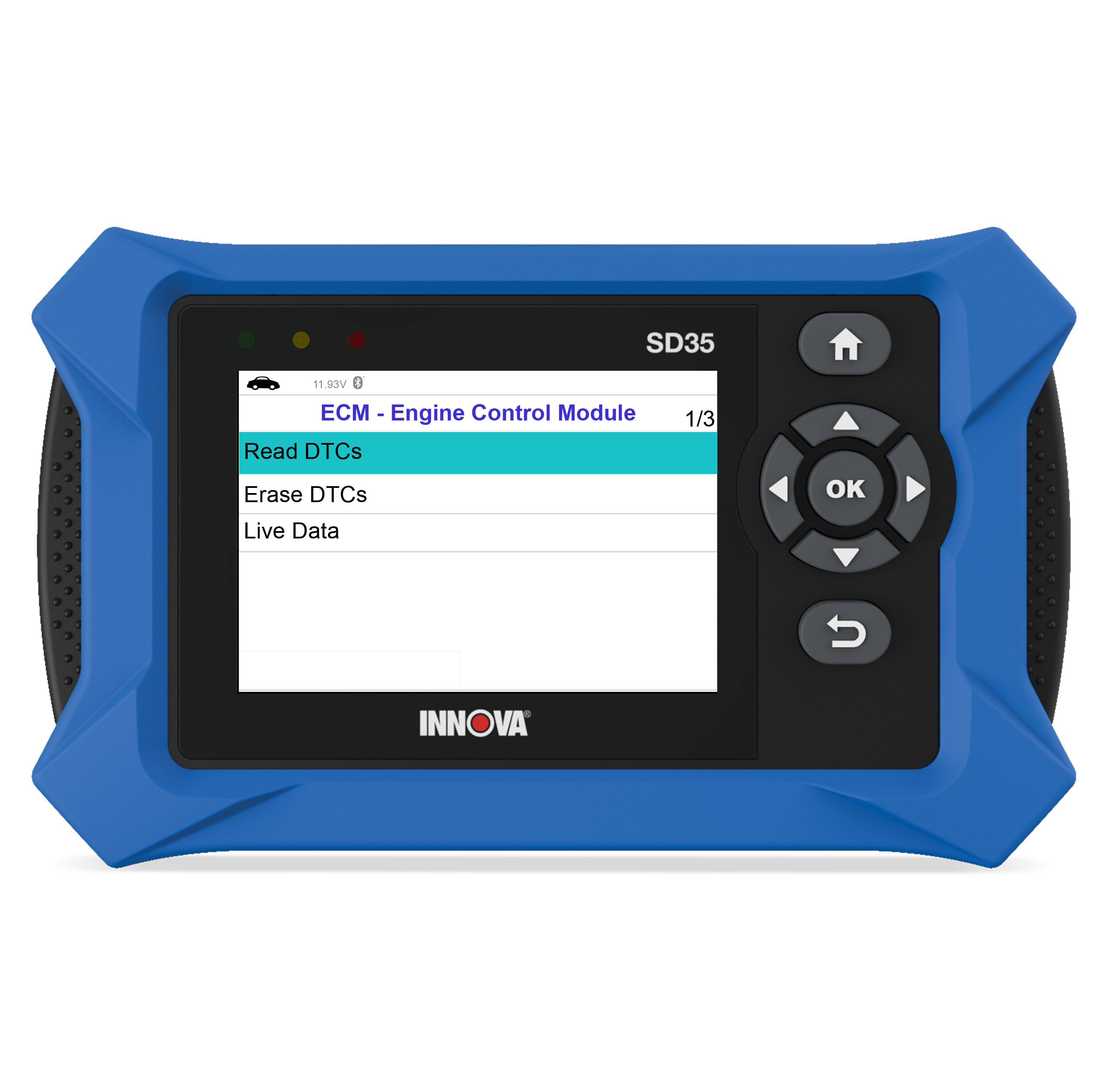

Step 3 - Select your preferred option.

• Depending on the modules selected, you can Read DTCs, Erase DTCs,

  and view Live Data.

  • Read DTCs
  • Erase DTCs
  • Live Data
