Innova 5420: Continuity Test

Purpose

To guide you on how to conduct a Continuity Test while using the Innova 5420 Power Check.

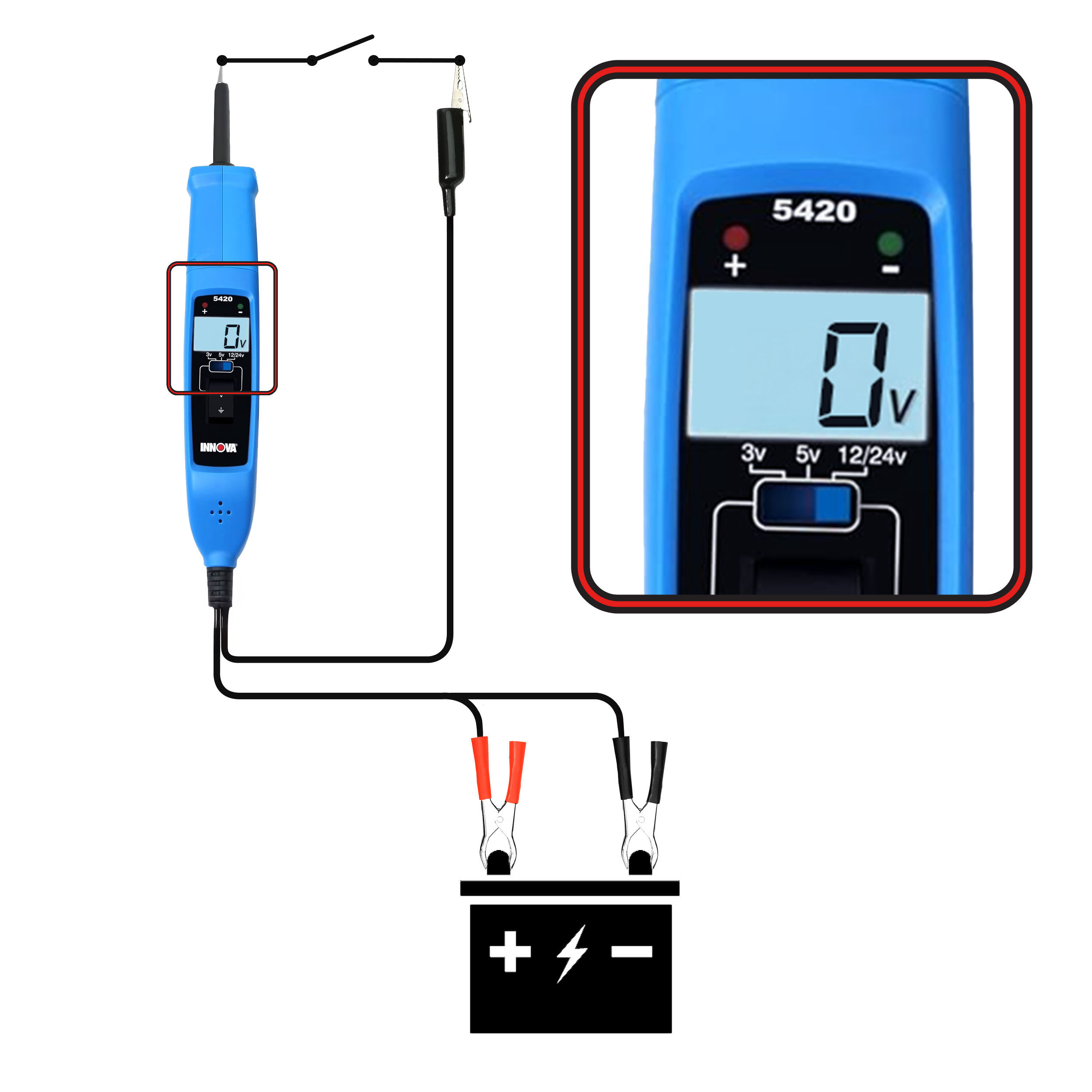

Step 1 - When a Continuity Test is not performed.

  • If the probe and the continuity cable are at an open circuit, the 'LCD Display' will show zero voltage or no continuity.

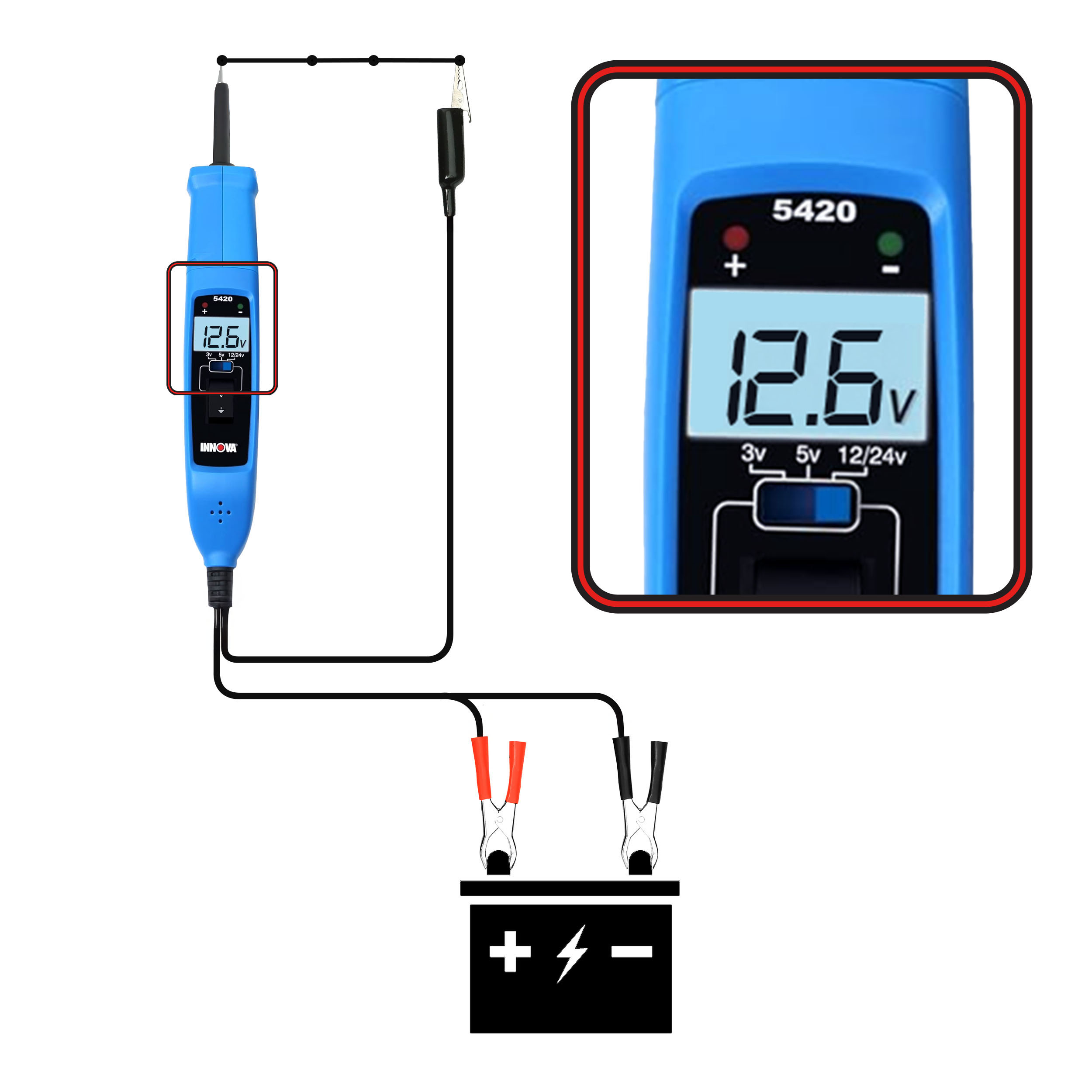

Step 2 - Performing Continuity Test.

  • If the probe and the continuity cable are connected, the 'LCD Display' will show to supply voltage indicating continuity. The 'Red LED' will light, and the device will produce a high-pitched beep.
