Innova 5420: Setting Up for Direct Connection with the Alligator Clips

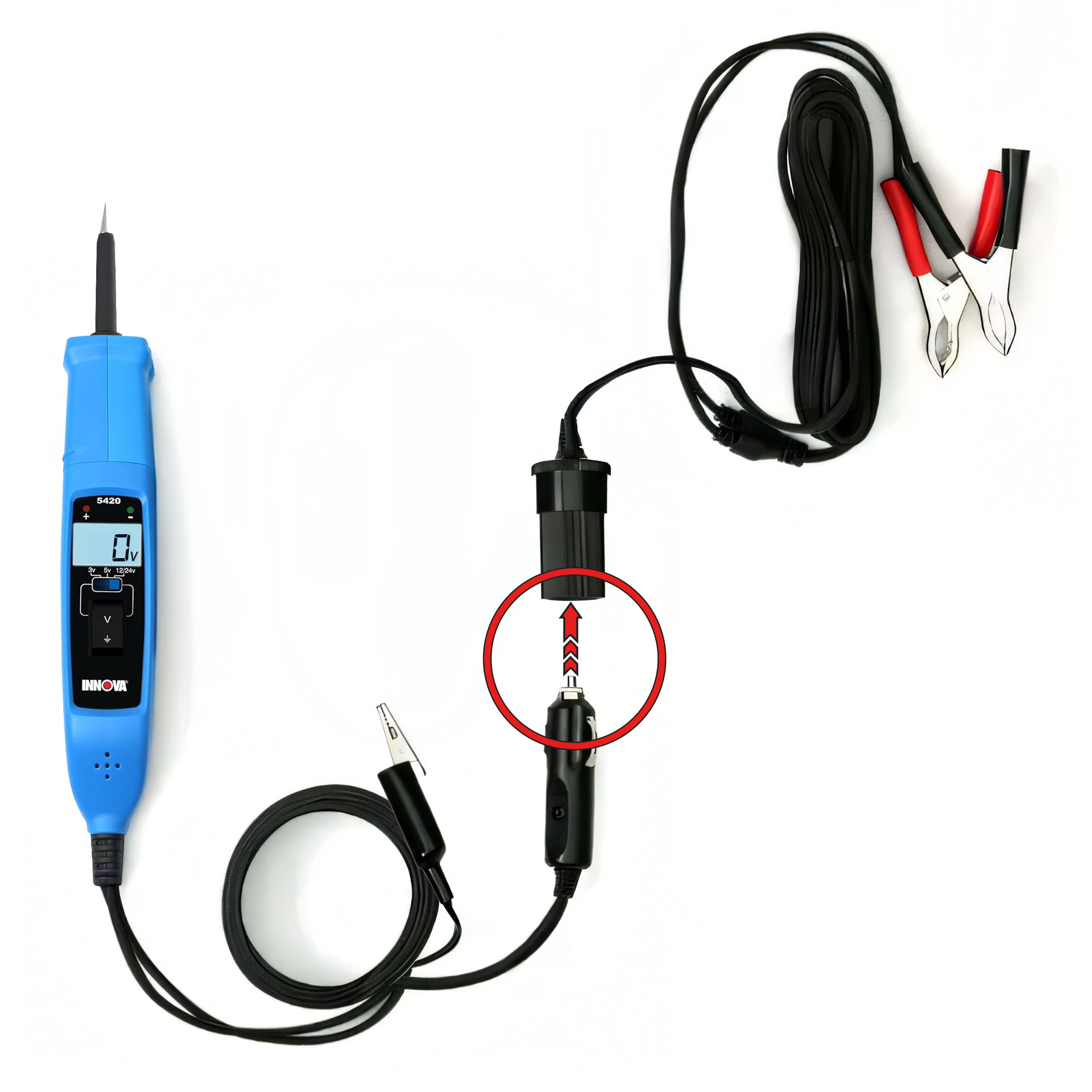

Step 1 - Connect the Male and Female Cigarette Adapters.

• Attach the male cigarette adapter (main device) to the female cigarette adapter (alligator cable).

Step 2 - Attach the Alligator Clips.

• Attach the Alligator Clips (Red for the Positive Terminal, black for the Negative Terminal) to your vehicle's battery or auxiliary power outlet.
