Request Control On-Board System - Mode $08: EVAP Test

Mode $08 function lets you perform an EVAP Test or Particulate Filter Regeneration and Inducement System Reinitialization.

EVAP Test – lets you initiate an EVAP test for the vehicle’s EVAP system.
Particulate Filter Regeneration – this service requests the vehicle to initiate a particulate filter (PF) regeneration. The vehicle manufacturer is responsible for determining the criteria to enable, start and stop the test, such as engine running, vehicle speed, or engine rpm.
Inducement System Reinitialization – this service requests the vehicle to initiate a reinitialization of the inducement system. The vehicle manufacturer is responsible for determining the criteria to enable, start and stop the test, such as engine running, vehicle speed, or engine rpm.

NOTE: The 5610 does not perform the EVAP test, but signals to vehicle’s onboard computer to initiate the test. The vehicle manufacturer determines the criteria and method for stopping the test once it has been started. Refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.

NOTE: Some vehicle manufacturers do not allow Scan Tools or other external devices to control vehicle systems. If the Request Control On-Board System function is not supported by the vehicle under test, an “advisory” message displays. Press Back to return to the OBD2 Menu.

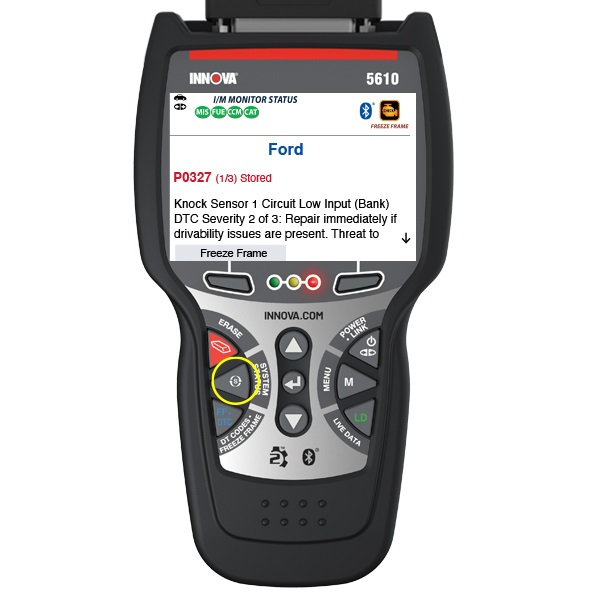

To get to the EVAP Test, press the System Status button.

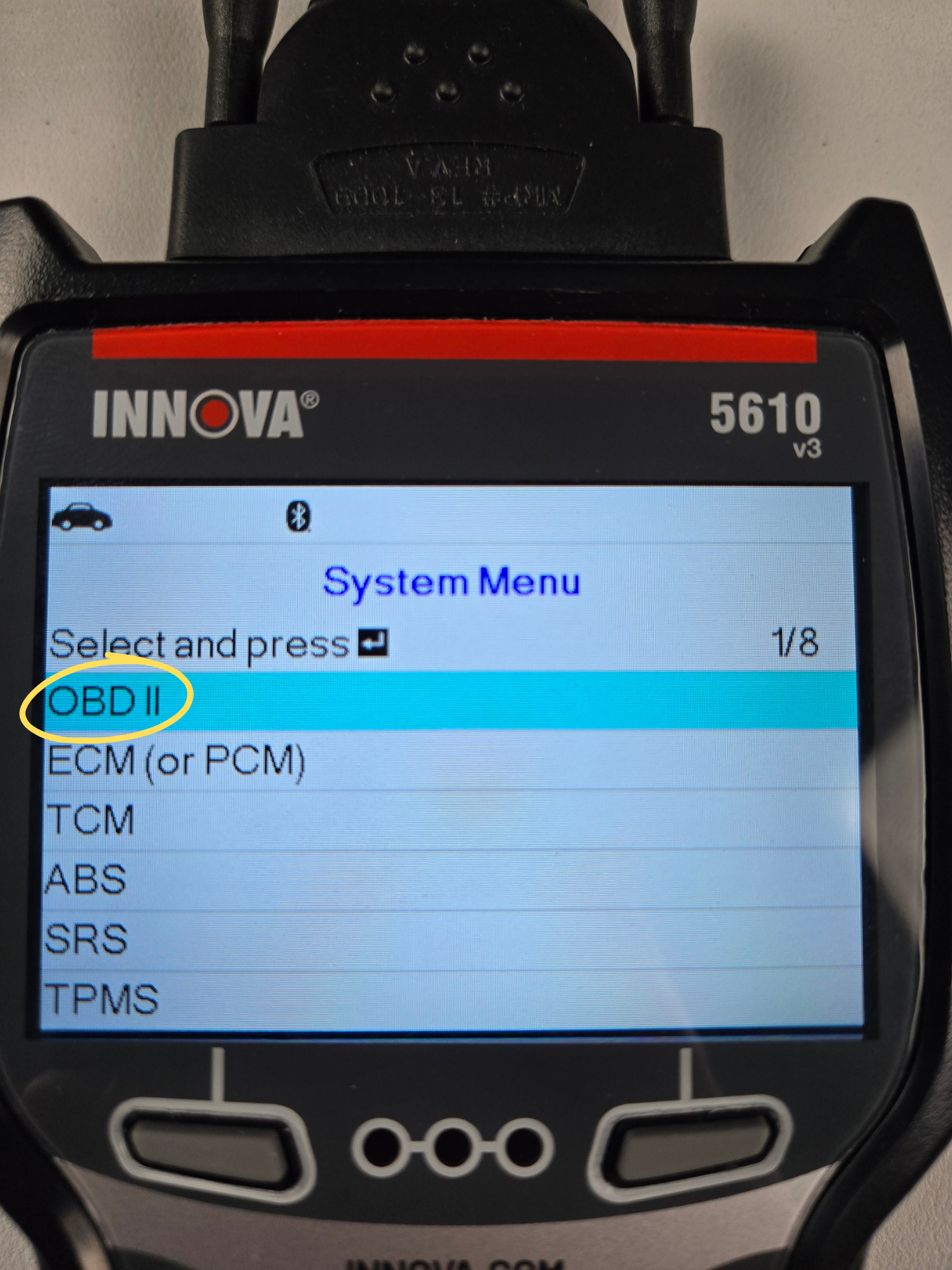

Step 2 - Select OBD II & press ENTER ↵.

Select OBD II & press ENTER ↵.

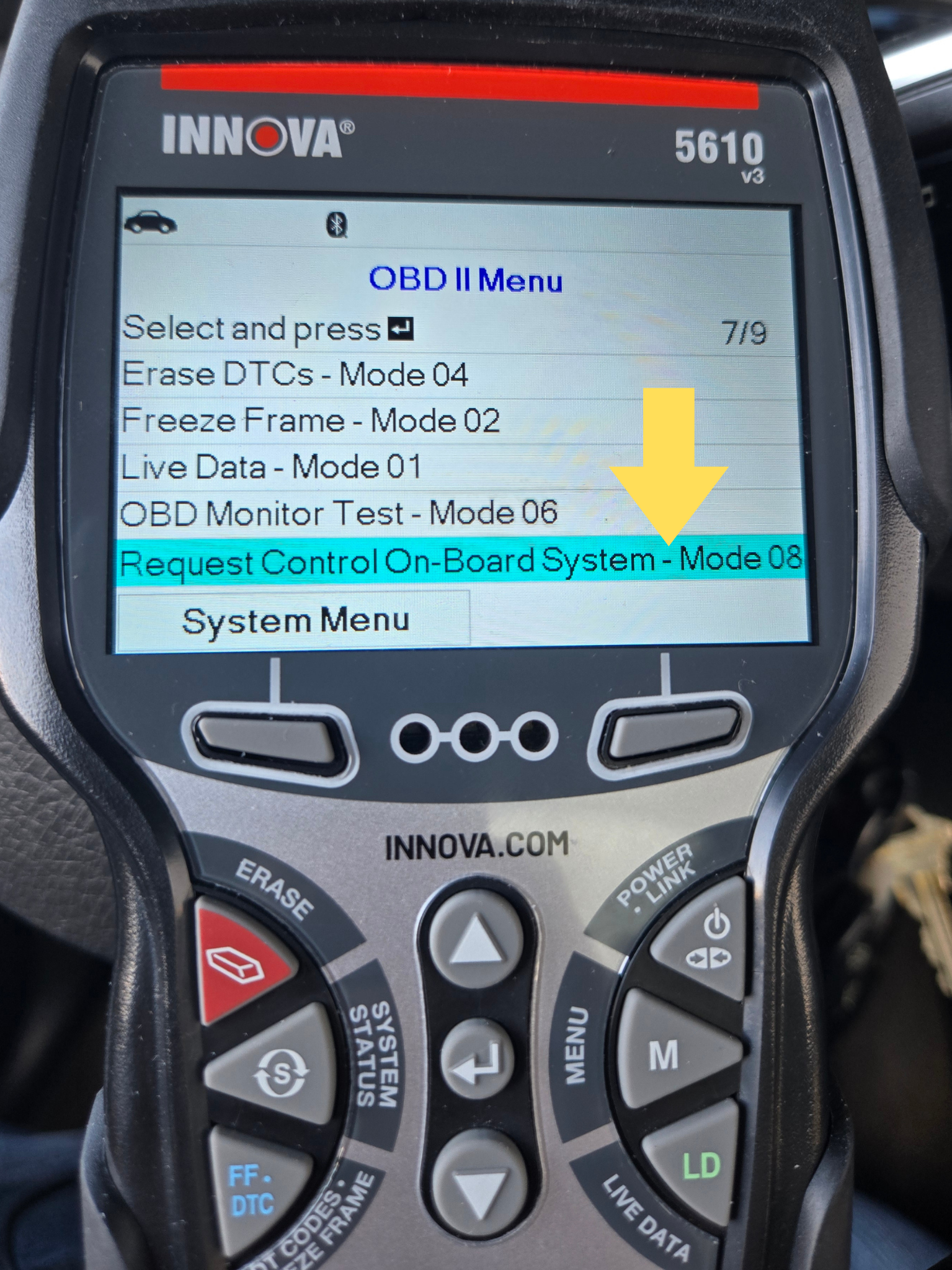

Step 3 - Select Request Control On-Board System - Mode 08 & press ENTER ↵.

The OBD II menu will display. Scroll down & select Request Control On-Board System - Mode 08, then press ENTER ↵.

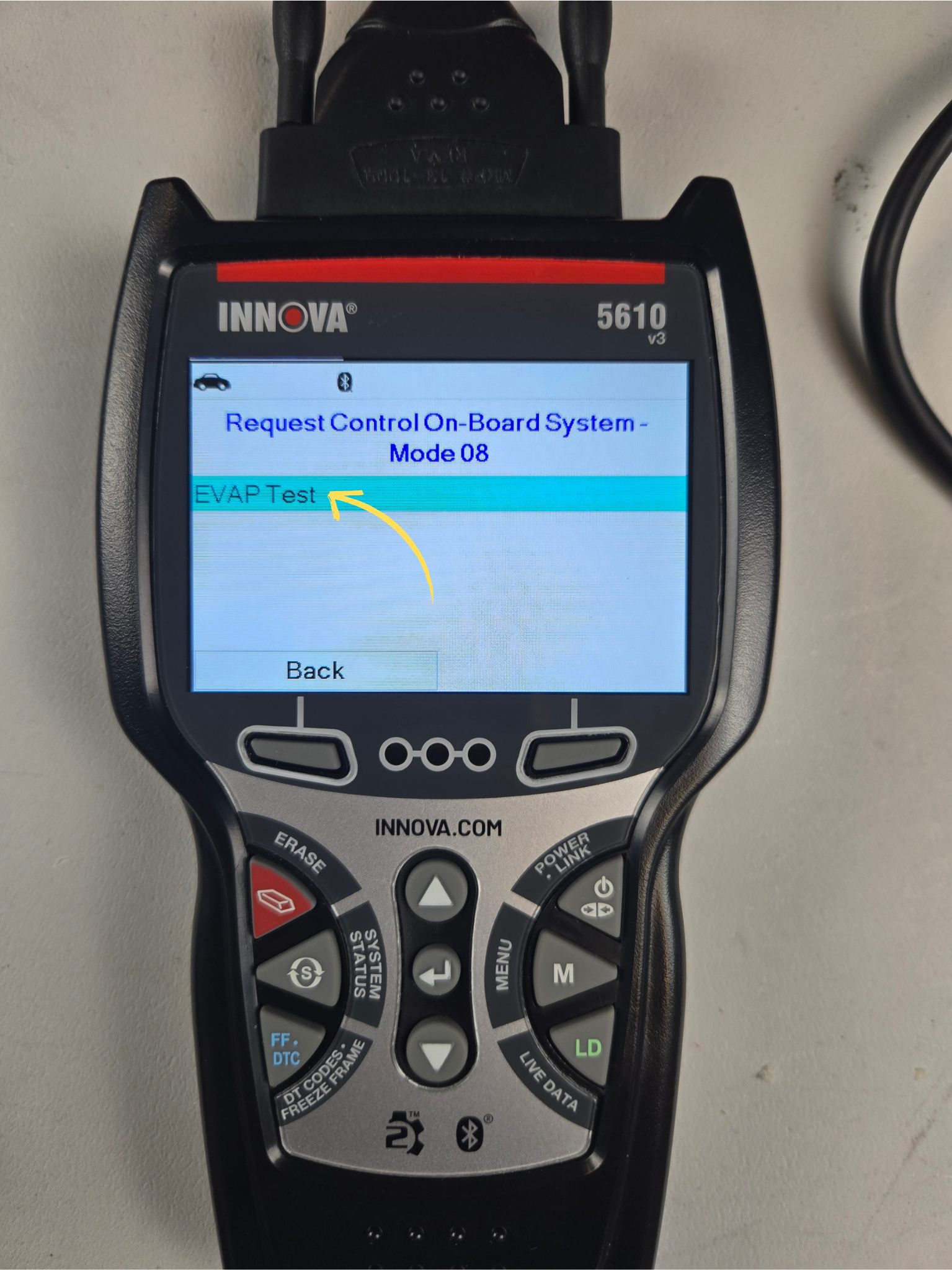

Step 3 - EVAP Test will display. Press the ENTER ↵ to initiate the EVAP Test.

NOTE: The EVAP Test is used for Spark Ignition vehicles, and the Particulate Filter Regeneration and Inducement System Reinitialization is used for Compression Ignition vehicles

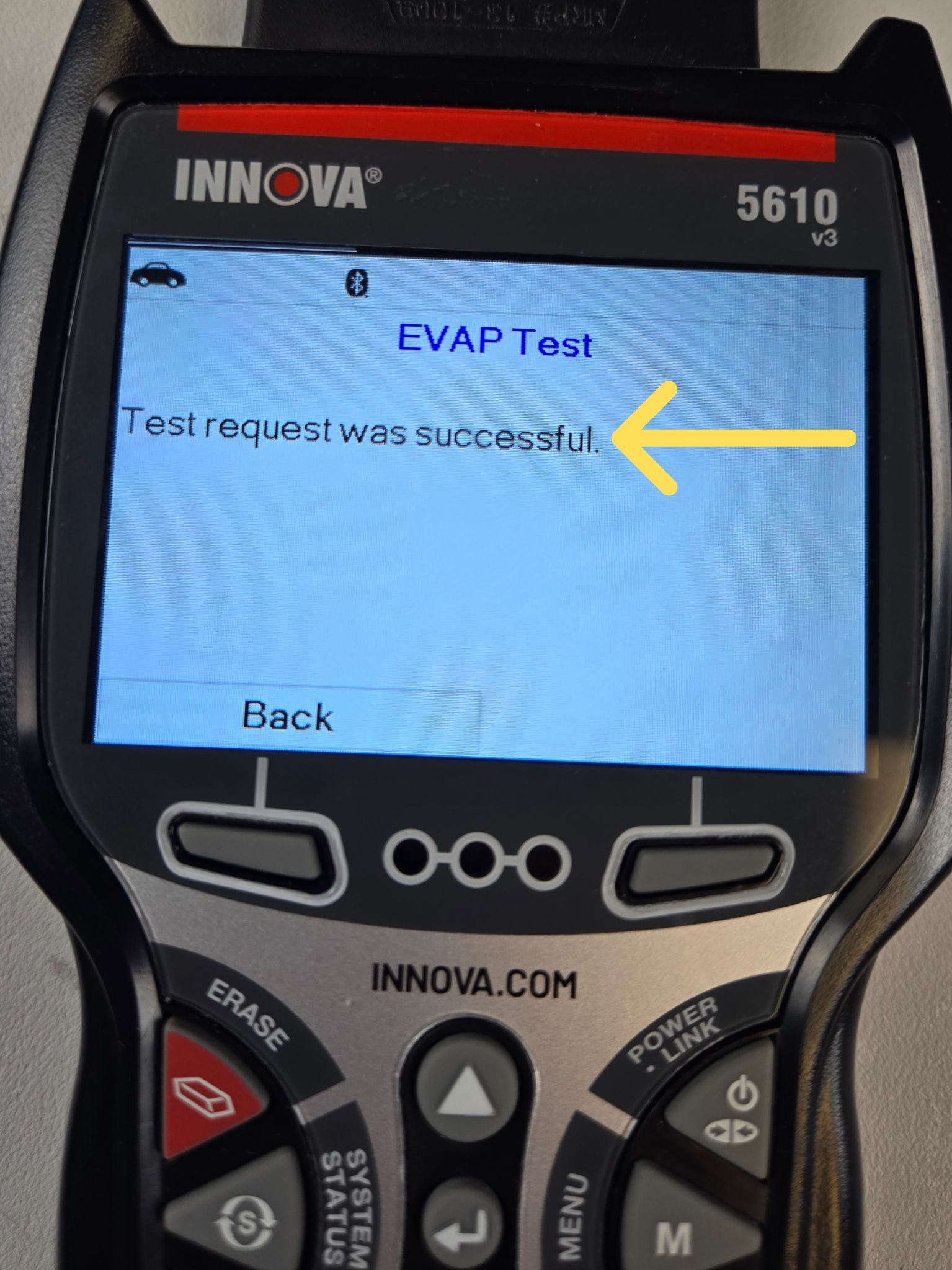

Step 4 - EVAP Test initiated - Successful or Sent.

A One moment please… message displays while the 5610 performs the EVAP test.

When the EVAP test has been initiated by the vehicle’s on-board computer, a Confirmation message displays. The confirmation messages are Successful or Sent. The Successful message means the 5610 can initiate the EVAP test. The Sent message means the EVAP test can't be initiated with the 5610.
