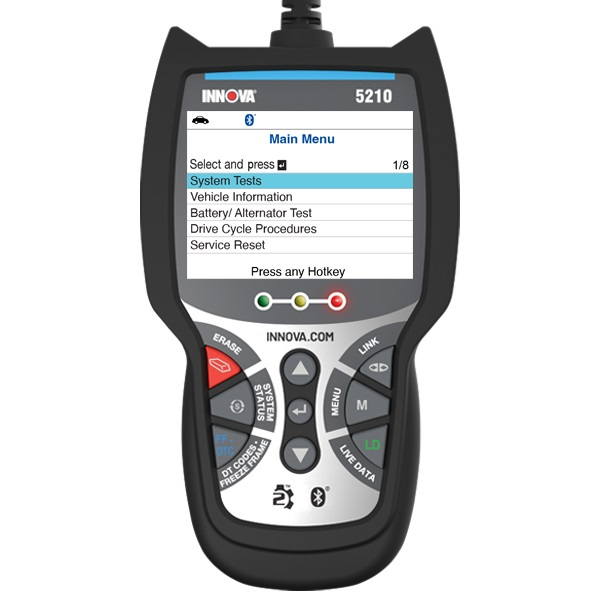

Innova 5210: The Main Menu

You can use the 5210 to perform additional diagnostic tests, adjust some of the internal settings, and view diagnostic & vehicle information stored in all modules & OBD monitors supported by the vehicle. These functions are accessed through the Main Menu.

Available Functions

The Main Menu has the following features:

System Tests – Displays a menu of system tests for the vehicle under test, which lets you perform OBD Monitor, EVAP, and I/M Monitor tests.
Vehicle Information – Displays the Vehicle Info menu, which lets you retrieve and view reference information for the vehicle under test.
Battery/Alternator Test – Performs a check of the vehicle’s battery and alternator system to ensure the system is operating within acceptable limits.
Drive Cycle Procedure – This lets you view drive cycle procedures for a selected vehicle monitor.
Service Reset – This lets you reset the Oil Maintenance Light.
Firmware Version – Displays the Scan Tool’s firmware version.
Tool Library – Displays the Tool Library menu, which provides access to the OBD2 DTC library and to definitions for Monitor icons and LED indicators.
Tool Settings – Displays the Tool Settings menu, which lets you make adjustments and settings to configure the Scan Tool to your particular needs.
