Innova 5210: The System Tests Menu
Step 1 - Press the M button.
|
|
To navigate to your System Tests, press the M button. |

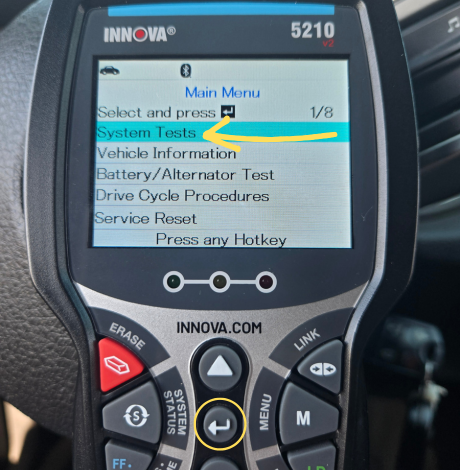

Step 2 - Select System Tests, then press ENTER ↵.
|
|
The Main Menu will display. Select System Tests, then press ENTER ↵. |

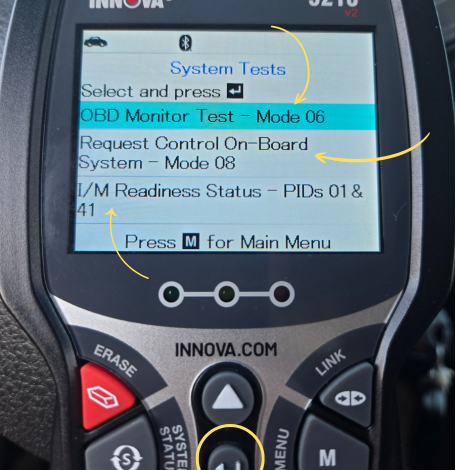

Step 3 - View the System Tests menu.
|
Once in the System Tests menu, scroll down to view the different options. Press the ENTER ↵ once the desired option is selected. O2 Sensor Monitor – Mode $05 – Retrieves and displays O2 sensor Monitor test results from the vehicle’s on-board computer. OBD Monitor Test – Mode $06 – Retrieves and displays test results for emission-related powertrain components and systems that are not continuously monitored. Request Control On-Board System – Mode $08 – Performs an EVAP Test or Particulate Filter Regeneration and Inducement System Reinitialization. I/M Readiness Status – PIDs $01 & $41 – Lets you view the description, current status, and drive cycle procedures for a selected Monitor. |
NOTE: O2 Sensor Monitor – Mode $05 will only appear in the System Tests menu if the vehicle is pre-2008. All 2008 and newer vehicles have O2 Sensor Monitor tests located under OBD Monitor Test - Mode $06.
