Innova 5210: Request Control On-Board System Mode $08

REQUEST CONTROL ON-BOARD SYSTEM - MODE $08

The Request Control On-Board System - Mode $08 lets you perform an EVAP Test or Particulate Filter Regeneration and Inducement System Reinitialization

EVAP Test – lets you initiate a leak test for the vehicle’s EVAP system.
Particulate Filter Regeneration – this service requests the vehicle to initiate a PF regeneration. The vehicle manufacturer is responsible to determine the criteria to enable, start and stop the process, such as engine running, vehicle speed, or engine rpm
Inducement System Reinitialization – this service requests the vehicle to initiate a reinitialization of the inducement system. The vehicle manufacturer is responsible to determine the criteria to enable, start and stop the process, such as engine running, vehicle speed, or engine rpm.

NOTE: The 5210 does not perform the leak test, but signals to vehicle’s onboard computer to initiate the test. The vehicle manufacturer determines the criteria and method for stopping the test once it has been started. Refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.

NOTE: Some vehicle manufacturers do not allow scan tools or other external devices to control vehicle systems. If the Request Control On-Board System is not supported by the vehicle under test, an “advisory” message displays

While linked to the vehicle, press the M button to access the Main Menu.

NOTE: The EVAP Test is used for Spark Ignition vehicles (gas), and the Particulate Filter Regeneration and Inducement System Reinitialization are used for Compression Ignition vehicles (diesel).

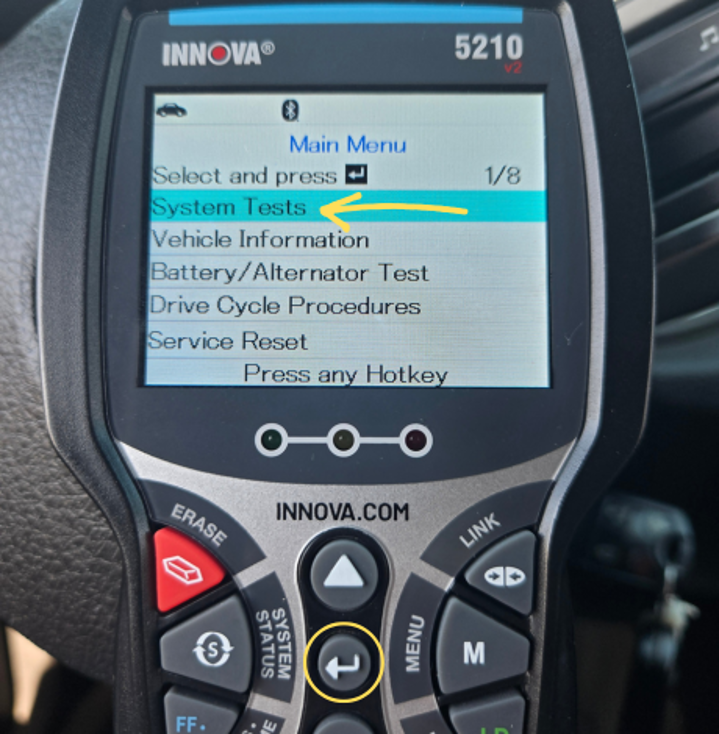

Step 2 - Select System Tests, then press ENTER ↵.

The Main Menu will display. Select System Tests, then press ENTER ↵.

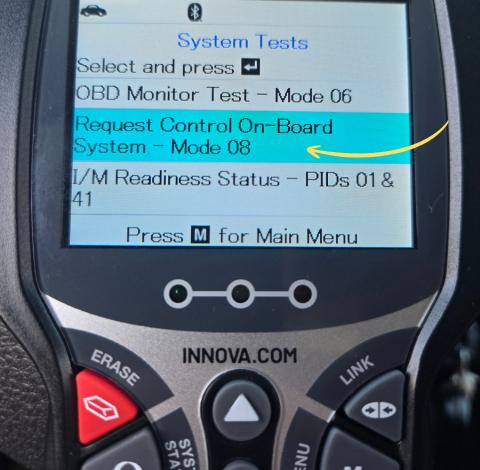

Step 3 - Select Request Control On-Board System – Mode $08, then press ENTER ↵.

From the System Tests menu, select Request Control On-Board System – Mode $08, then press ENTER ↵.

A Request Control On-Board System – Mode $08 screen displays.

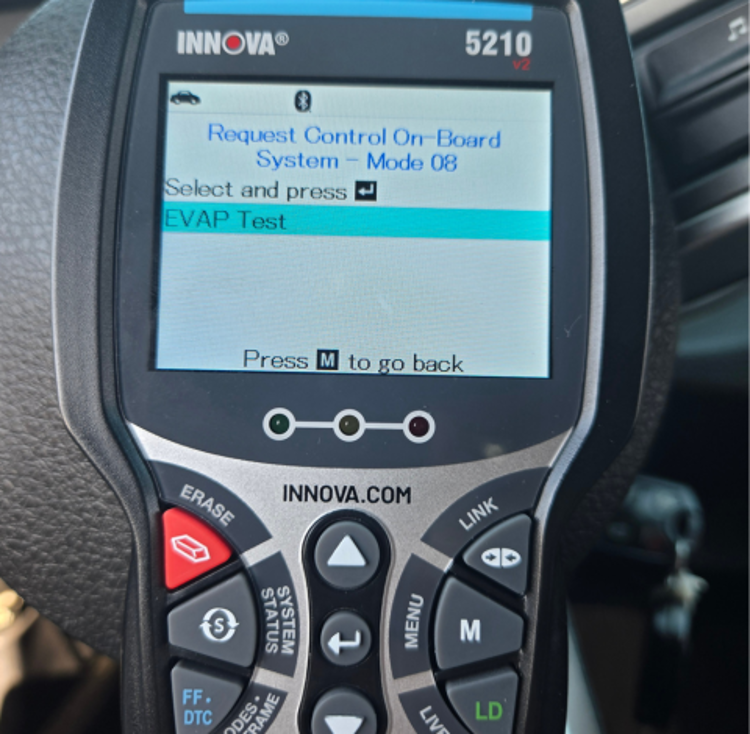

Step 4 - Select the test that displays on screen, then press ENTER ↵.

Select the test that displays on screen, then press ENTER ↵.

A “One moment please…” message displays while the 5210 performs the test.

Step 5 - When the test has been initiated, a confirmation message displays

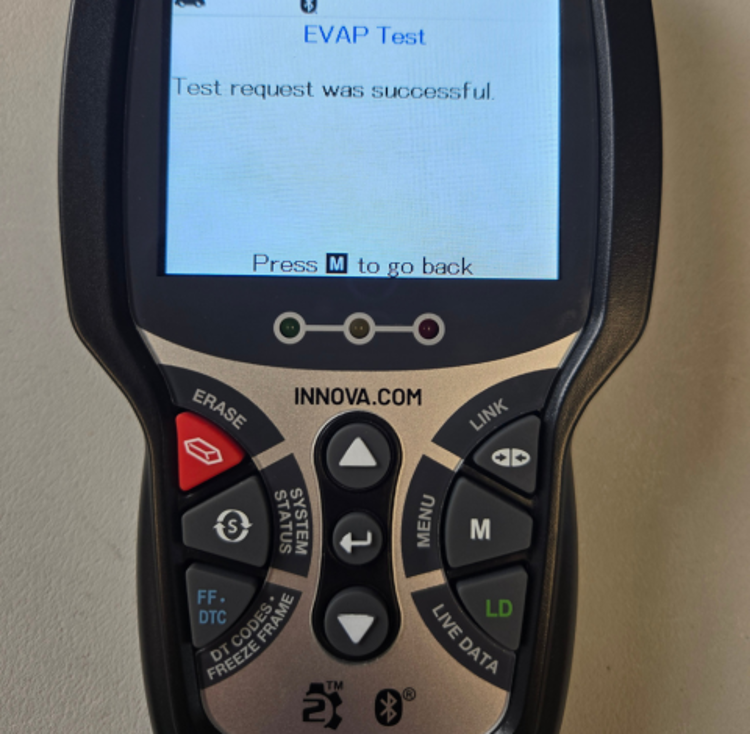

When the test has been initiated by the vehicle’s on-board computer, a “confirmation” message displays:

Test Request Sent Successful or Test Request Sent.

If you receive the confirmation Test Request Sent, that means the component failed to respond or perform the action.
