Innova 5210: Oil Maintenance Reset

Oil Maintenance Reset

This functions is used to reset the oil light after an oil change.

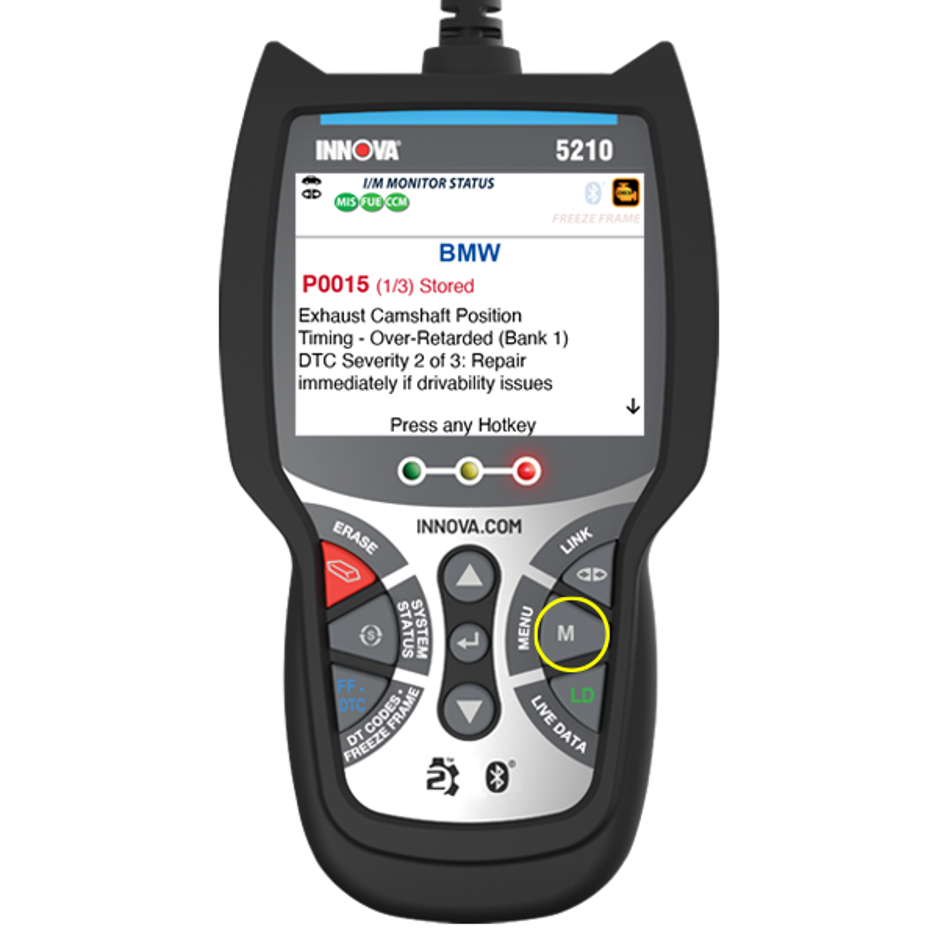

Step 1 - Press the Menu button.

 While linked to the vehicle, press the M button to access the Main Menu.

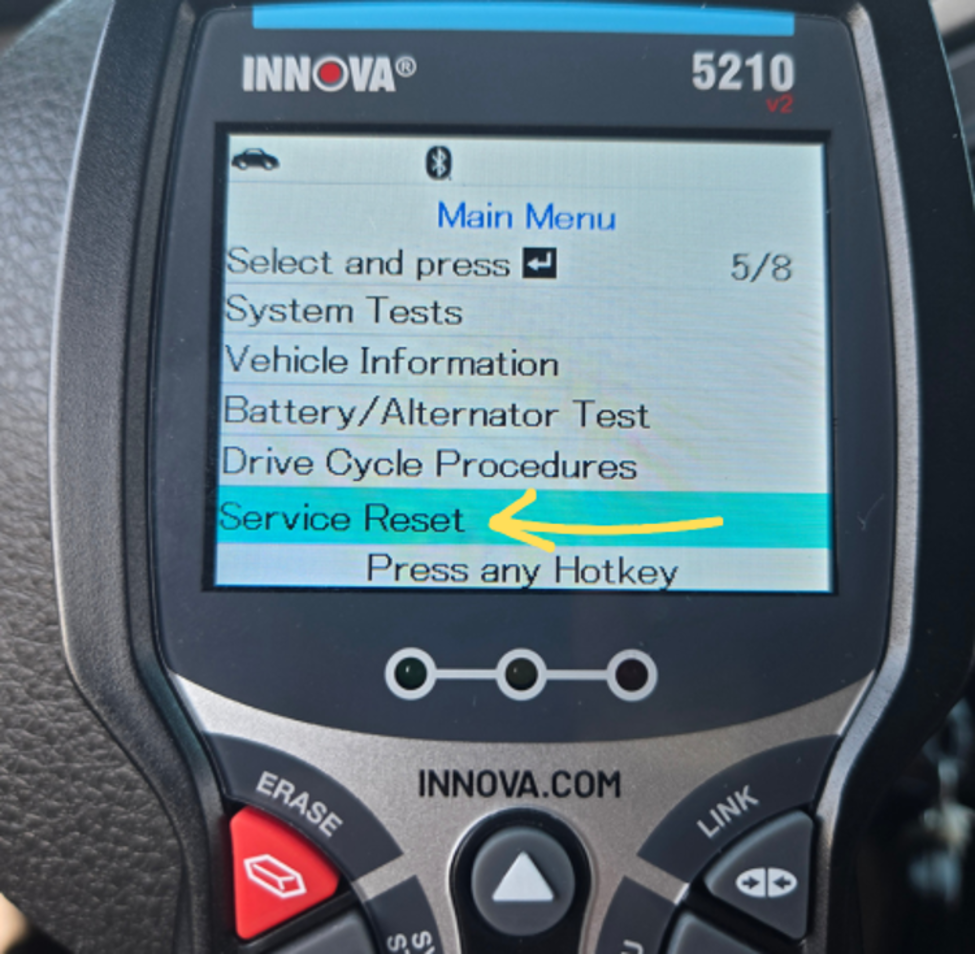

Step 2 - Choose Service Reset, then select Oil Maintenance Reset.

 Select Service Reset, then press ENTER ↵.

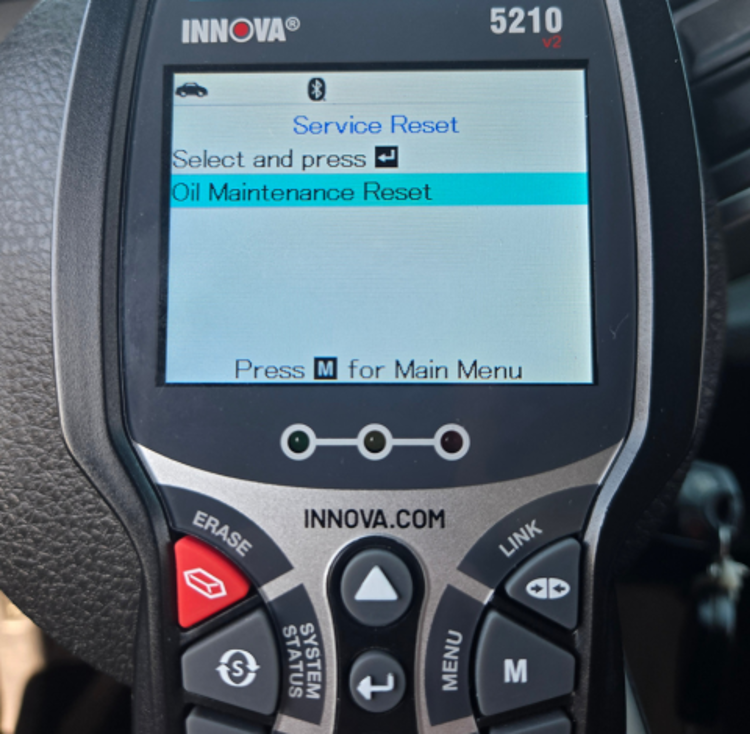

Select Oil Maintenance Reset, then press ENTER ↵.

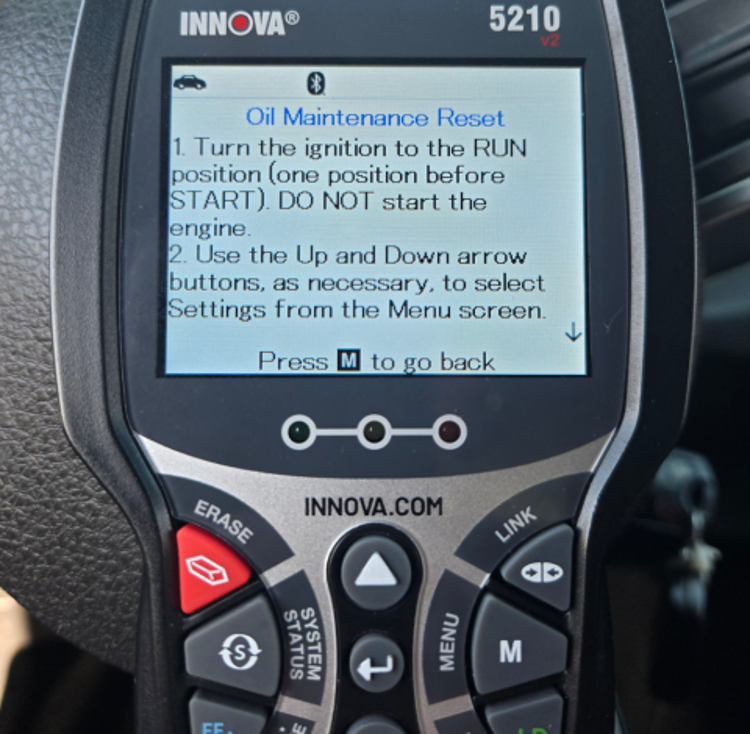

NOTE: If the 5210 cannot reset the Oil Maintenance Light, an “instructional” dialog displays, showing the manual procedures for resetting the indicator light. When finished viewing the instructions, press the M button to return to the Main Menu

Step 3 - The Reset Oil Maintenance Indicator screen displays.

If the 5210 will not automate

an Oil Maintenance Reset on

your specific vehicle, you will

need to perform Oil Maintenance

Reset Procedures.

To perform oil reset by procedure,

select Yes, then press ENTER ↵.

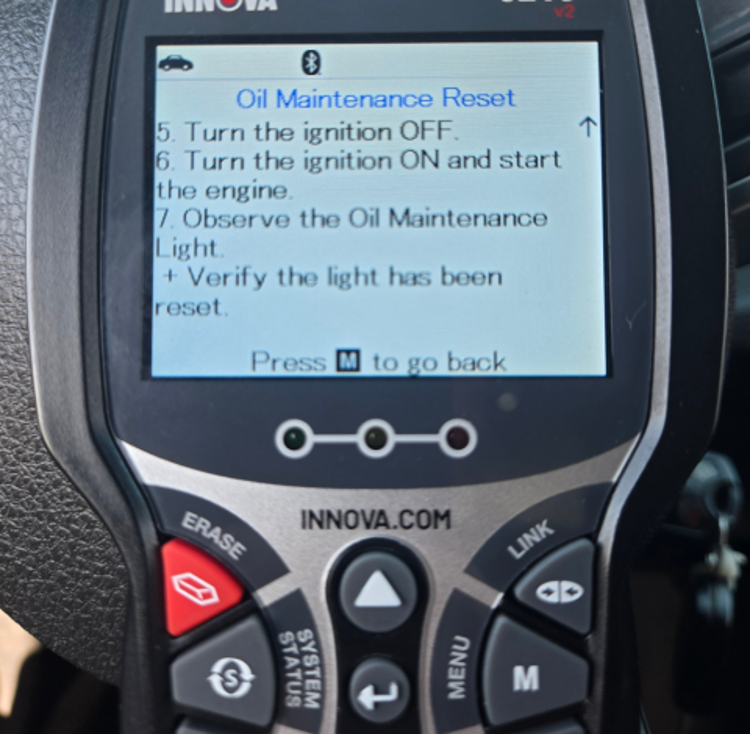

An “instructional” message displays,

showing the manual procedures for

resetting the indicator light.

If you do not wish to perform

the oil reset by procedure,

select No, then press ENTER ↵

to return to the Main Menu.
