Innova 1000: All System Scan

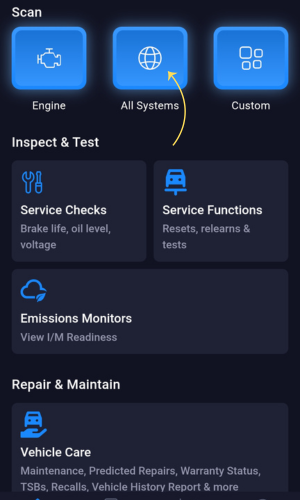

Step 1 - Select All Systems

• To scan every vehicle module at once, tap on All Systems.

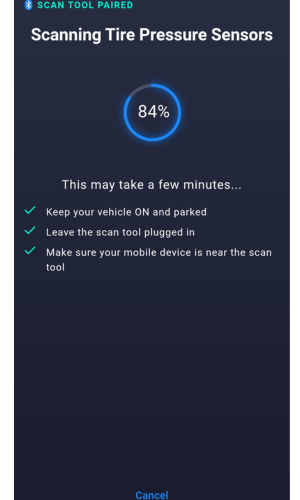

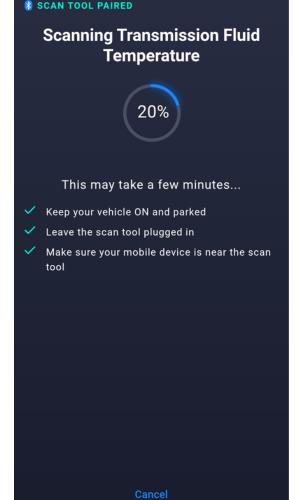

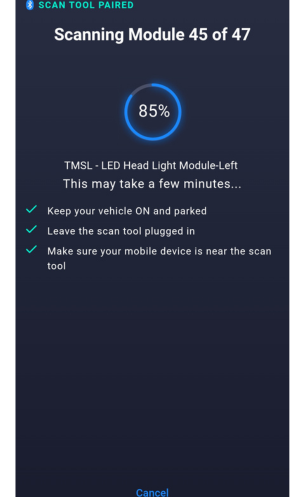

Step 2 - Wait for all the vehicle data to upload.

• An All Systems scan will scan every module for stored DTCs and will display Service Check information such as Battery Voltage, Brake Pad Life, Transmission Fluid Temperature, Oil Life, Oil Level, and Tire Pressure (PSI). Support for Service Check info will depend on the year, make, and model of vehicle.
• Performing an All Systems scan could take several minutes as the all the vehicle data is gathered.

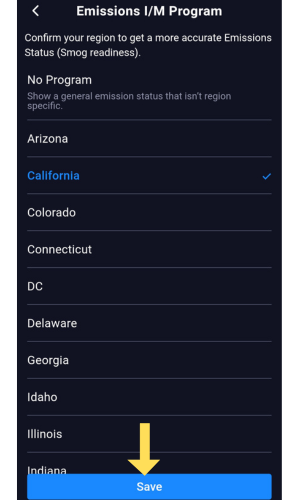

Step 3 - Choose State Emissions I/M Program

• Choose your state to confirm your region to get a more accurate Emissions Status, then tap Save. If you do not see your state listed, choose No Program.

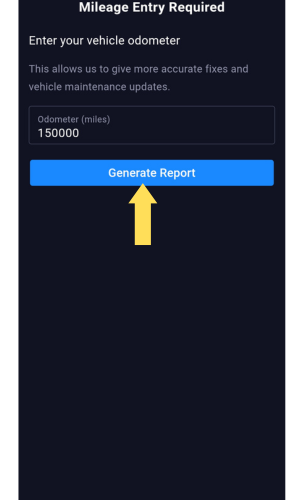

Step 4 - Enter Mileage

• The mileage will automatically update in the odometer field. Tap Generate Report to complete the All System scan.
• The odometer reading is used for Maintenance Items and Predicted Repairs. The odometer reading isn't needed to read and clear stored codes from any vehicle module. These 2 features in the RS2 app combine mileage and vehicle historical data to predict future maintenance items and possible repairs.

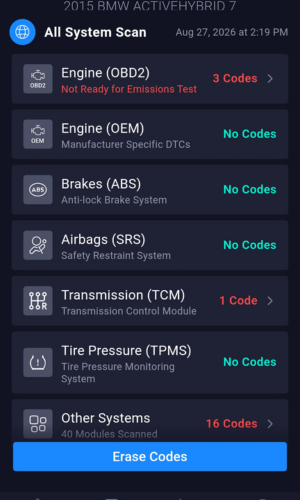

Step 5 - View the Results

• Once the All System scan completes, the results will show for every module scanned. Select each module individually to view any codes stored with their code descriptions. Scroll down to view all available modules.

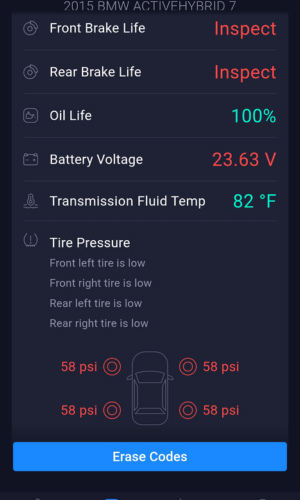

• Scroll passed all the vehicle modules to view the Service Check information: Battery Voltage, Brake Pad Life, Transmission Fluid Temperature, Oil Life, Oil Level, and Tire Pressure. Support for Service Check info will depend on the year, make, and model of vehicle.
• You can choose to Erase Codes individually from each module or all at once.
