Innova 5610: Scanning & Viewing DTCs for MIL Check Engine Light (Global OBD2)

Video Reference:

Scanning for MIL Check Engine Light

When you first plug in your vehicle for your check engine codes, your 5610 will automatically perform the scan and display codes for your check engine light.

However, you can also perform this function manually.

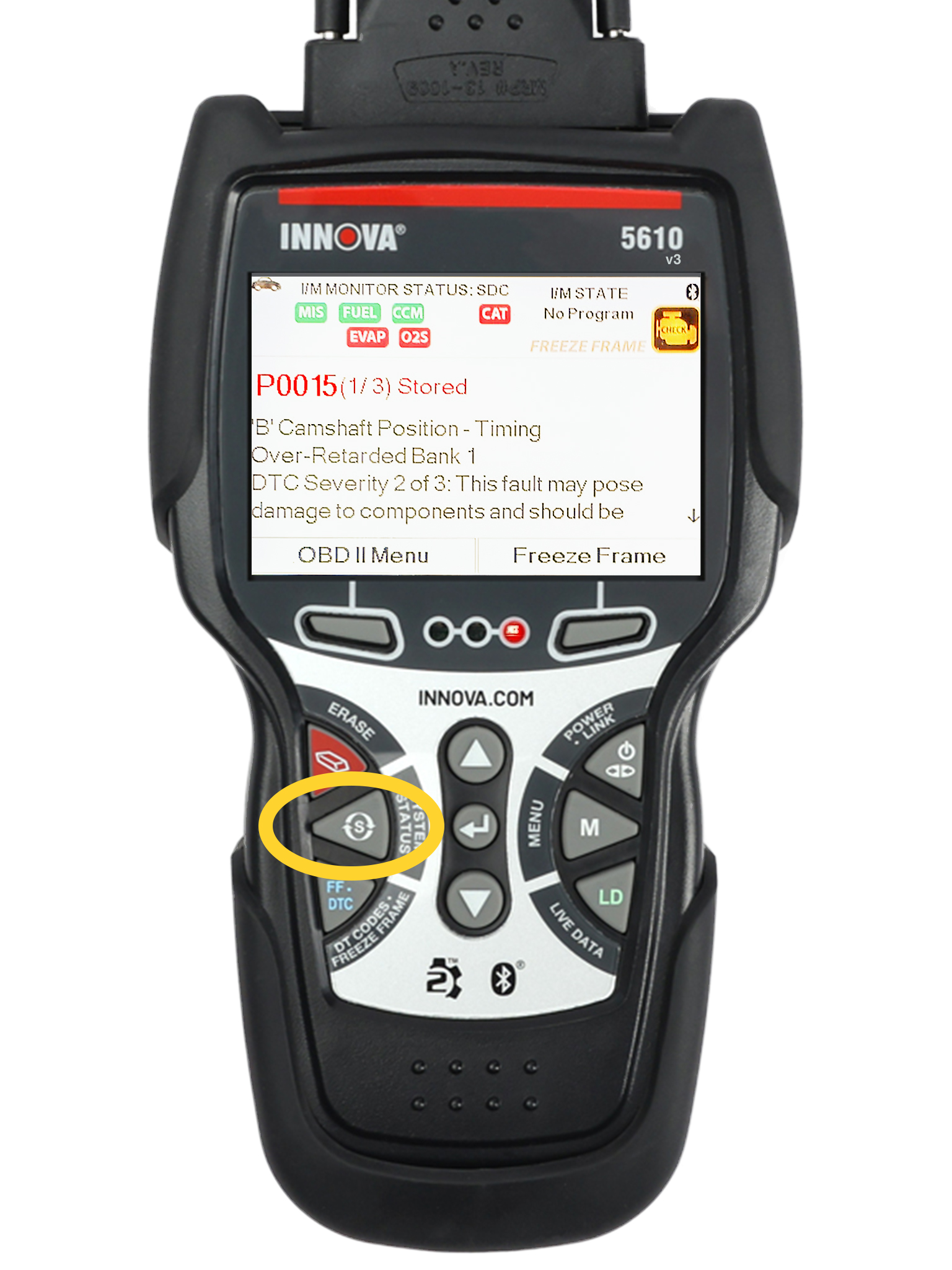

Step 1 - Press the System Status button.

• At any page, press the System Status button to go to the System Menu.

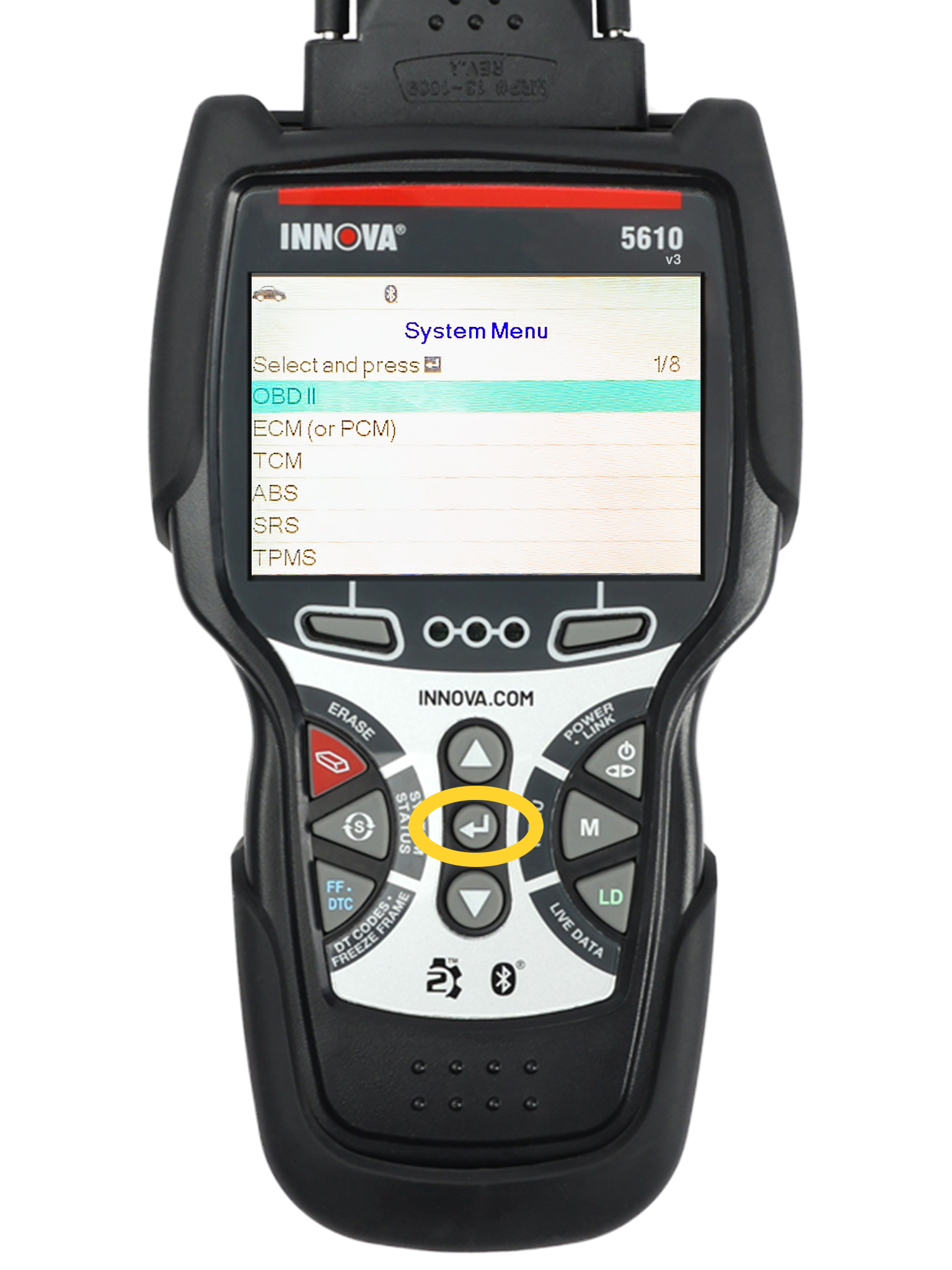

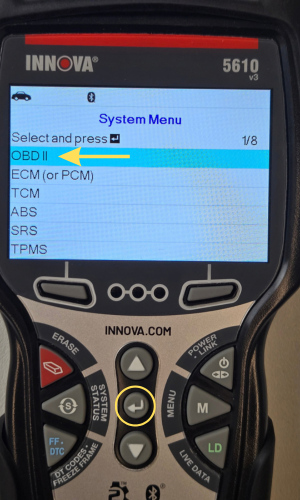

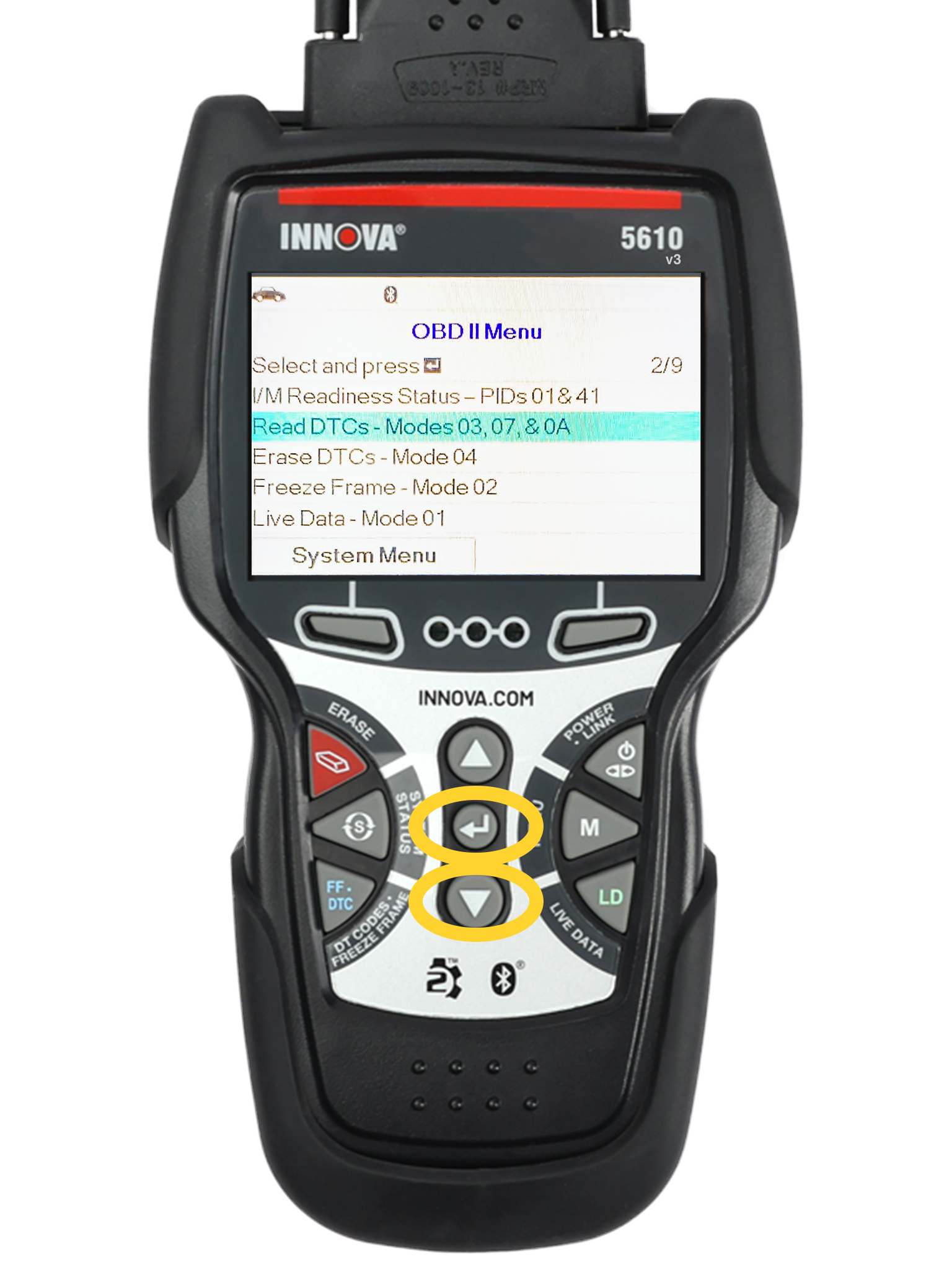

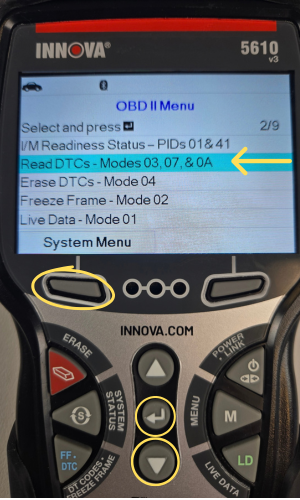

Step 2 - Select Global OBD2 then press ENTER ↵.

• The System Menu will display.

  Select Global OBD2 then press ENTER ↵.

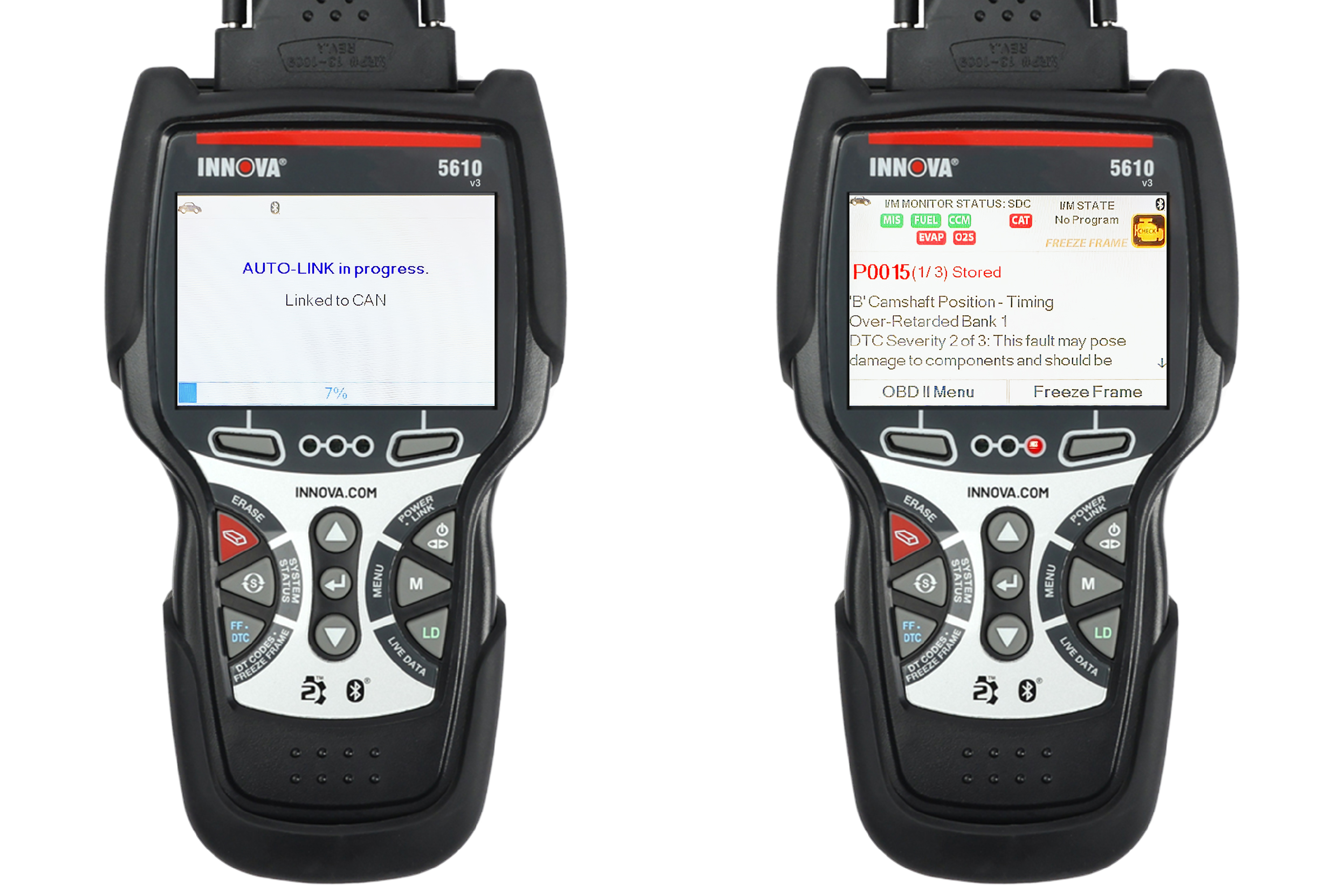

Step 3 - The 5610 will retrieve and display your Check Engine DTCs, Monitor Statuses, and Freeze Frame Data from your vehicle’s computer memory.

• Wait until the auto-link status is 100% completed.

  The 5610 will display a code only if codes are present.

  If no codes are present, the No Powertrain DTCs or Freeze Frame Data presently stored in the vehicle’s computer will display.

  Refer to Display Functions for a description of display elements. In the case of codes with long definitions, a small arrow is shown in the upper/lower right-hand corner of the display area to indicate the presence of additional information.

  If a definition for the currently displayed code is not available, an advisory message will show.

  Depending on the results of your scan, you may find green, yellow, and red LEDs as visual aids to make it easier to determine engine system conditions.

  • Green LED – Indicates that all engine systems are OK and operating normally. All monitors supported by the vehicle have run and performed their diagnostic testing, and no trouble codes are present. All Monitor icons will be solid.
  • Yellow LED – Indicates one of the following conditions:
    • A pending code is present – If the yellow LED is illuminated, it may indicate a Pending code is present. Check the display for confirmation. A pending code is confirmed by the presence of a numeric code and the word PENDING.
    • Monitor Not Run Status – If the display shows a zero (indicating there are no DTCs present in the vehicle’s computer memory), but the yellow LED is illuminated, it may be an indication that some of the Monitors supported by the vehicle have not yet run and completed their diagnostic testing. Check the display for confirmation. All blinking Monitor icons have not yet run and completed their diagnostic testing; all Monitor icons that are solid have run and completed their diagnostic testing.
  • Red LED – Indicates there is a problem with one or more of the vehicle’s systems. The red LED is also used to indicate that DTC(s) are present. In this case, the Malfunction Indicator (Check Engine) lamp on the vehicle’s instrument panel will be illuminated.

• DTCs that start with P0, P2, and some P3 are considered Generic (Universal). All Generic DTC definitions are the same on all OBD2-equipped vehicles. The Scan Tool automatically displays the code definitions (if available) for Generic DTCs.

  DTCs that start with P1 and some P3 are Manufacturer specific codes and their code definitions vary with each vehicle manufacturer.

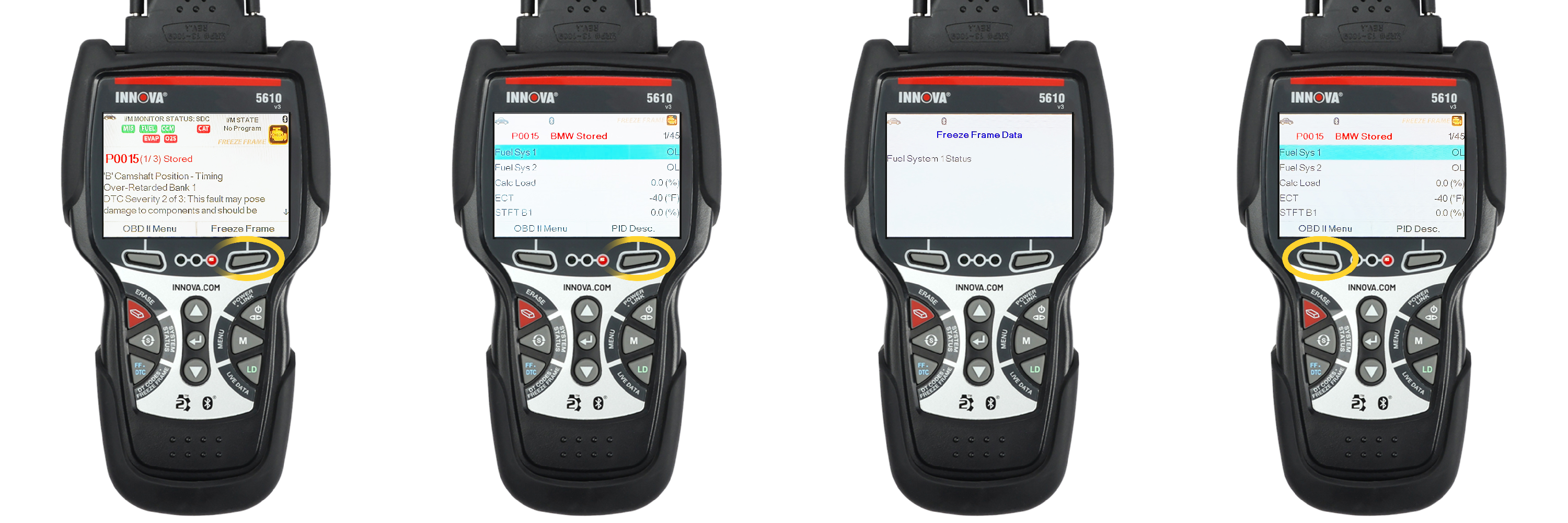

Step 4 - Select Freeze Frame to view Freeze Frame data.

• Select Freeze Frame to view Freeze Frame data.

• The Freeze Frame Data screen will display.

  Press the PID Description option to view the PID definition highlighted.

• The PID Description will display.

  In a few seconds, the page will return to the Freeze Frame screen.

• On the Freeze Frame Screen, press Back to return to the DTC screen.

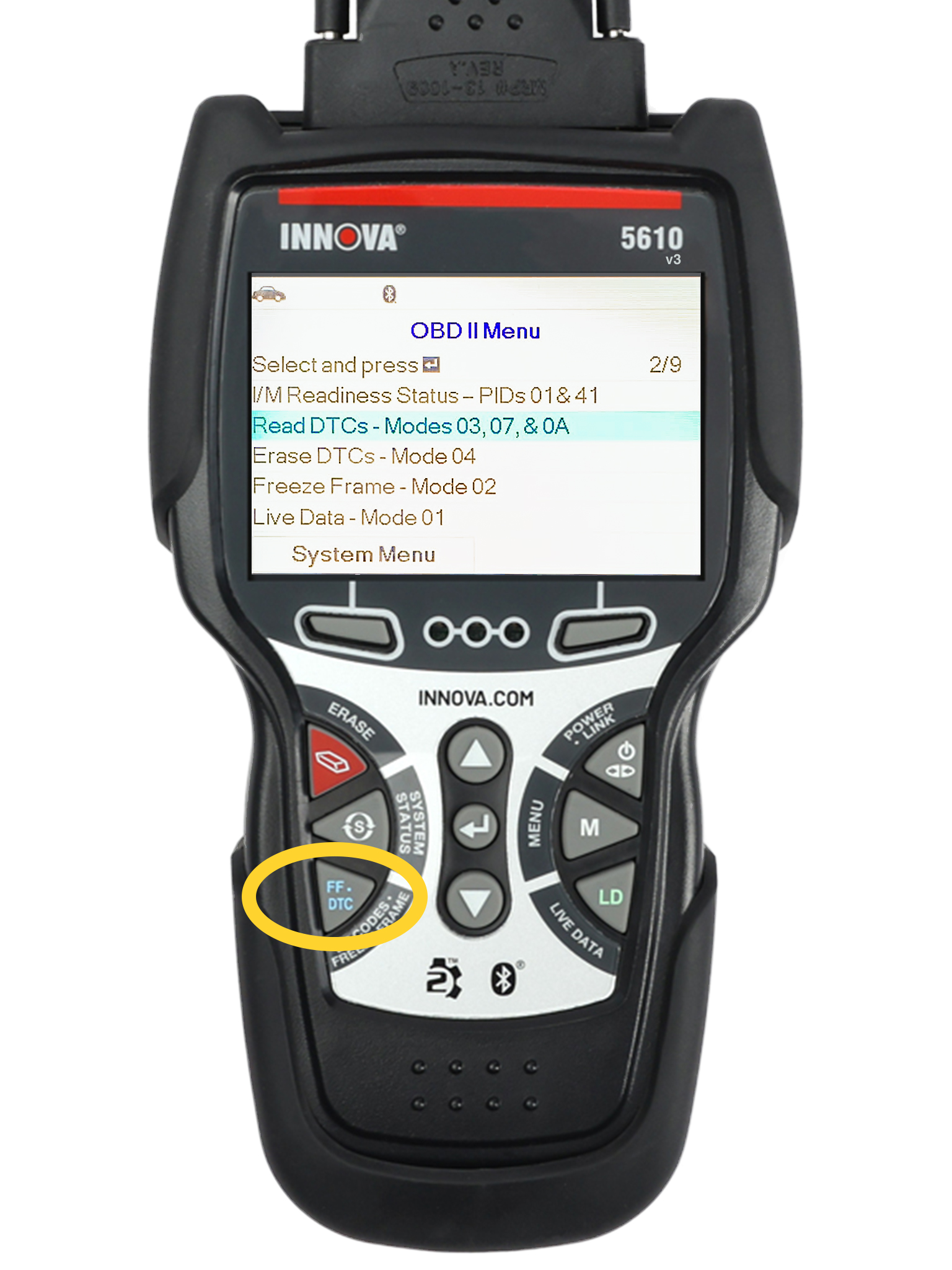

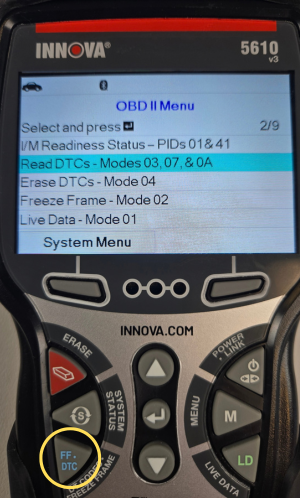

Step 5 - To return to your Global OBD2 Diagnostics screen, press the DTC/FF button.

• To return to your Check Engine DTC Codes, Monitor Statuses, and Freeze Frame Data after pressing any button, press the DTC/FF button to re-display your Check Engine DTC Codes.

  Each time the DTC/FF is pressed and released, the 5610 will scroll and display the next DTC in sequence until all DTCs in its memory have been displayed.
