Innova 5610: Recording Live Data by DTC Trigger
Recording Live Data by DTC Trigger
This function automatically records Live Data information when a DTC sets, then save it in the 5610's memory. The recorded data can be a valuable troubleshooting aid, particularly if you are experiencing a fault that is causing a DTC to set. The scan tool can record approximately 100 frames of Live Data.

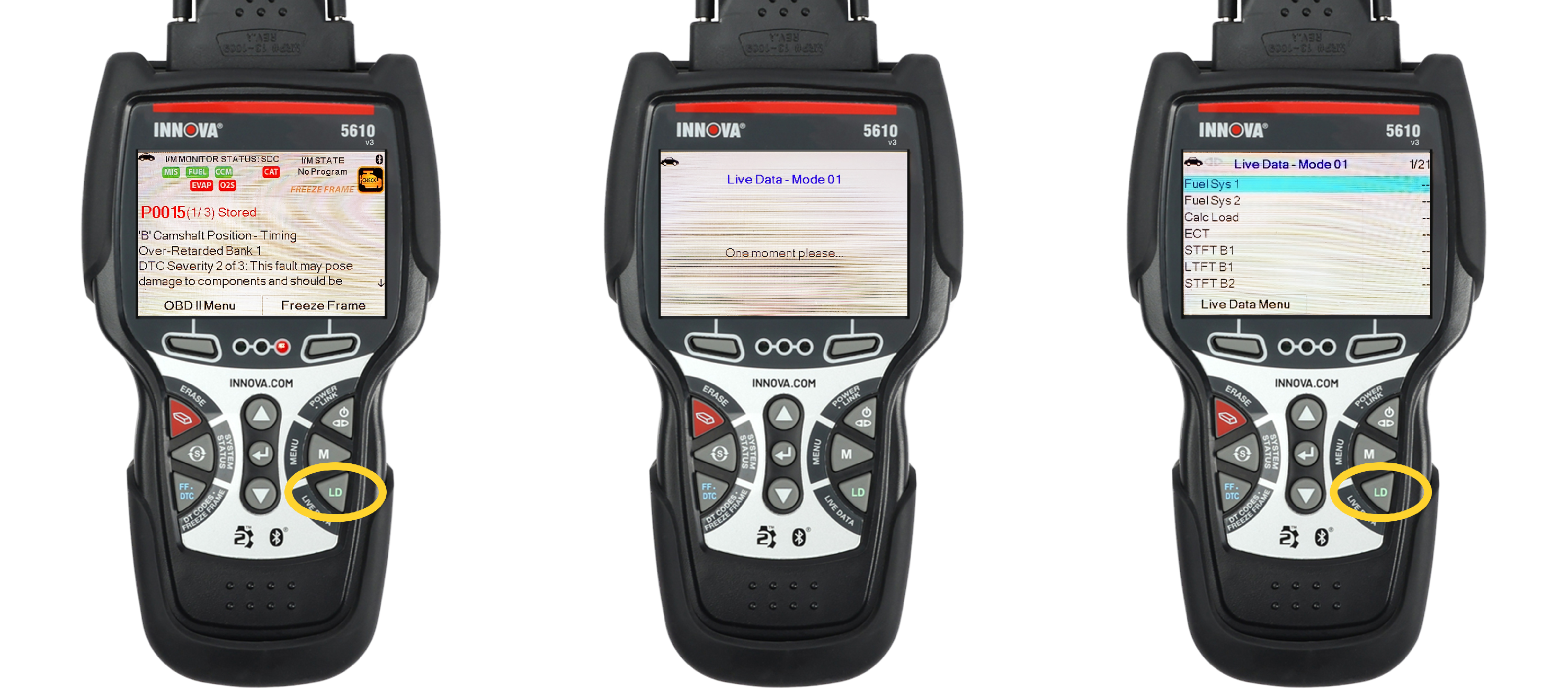

Step 1 - Press the LD button
|
|
|
- When on the Global Check Engine default screen, press the LD button to navigate to the Live Data Menu. Alternatively, you can press the OBD II Menu button, to access the OBD II Menu, then select Live Data - Mode 01.
- A "One moment please...." message will display.
- The screen will show a list of your vehicle's Live PIDs.

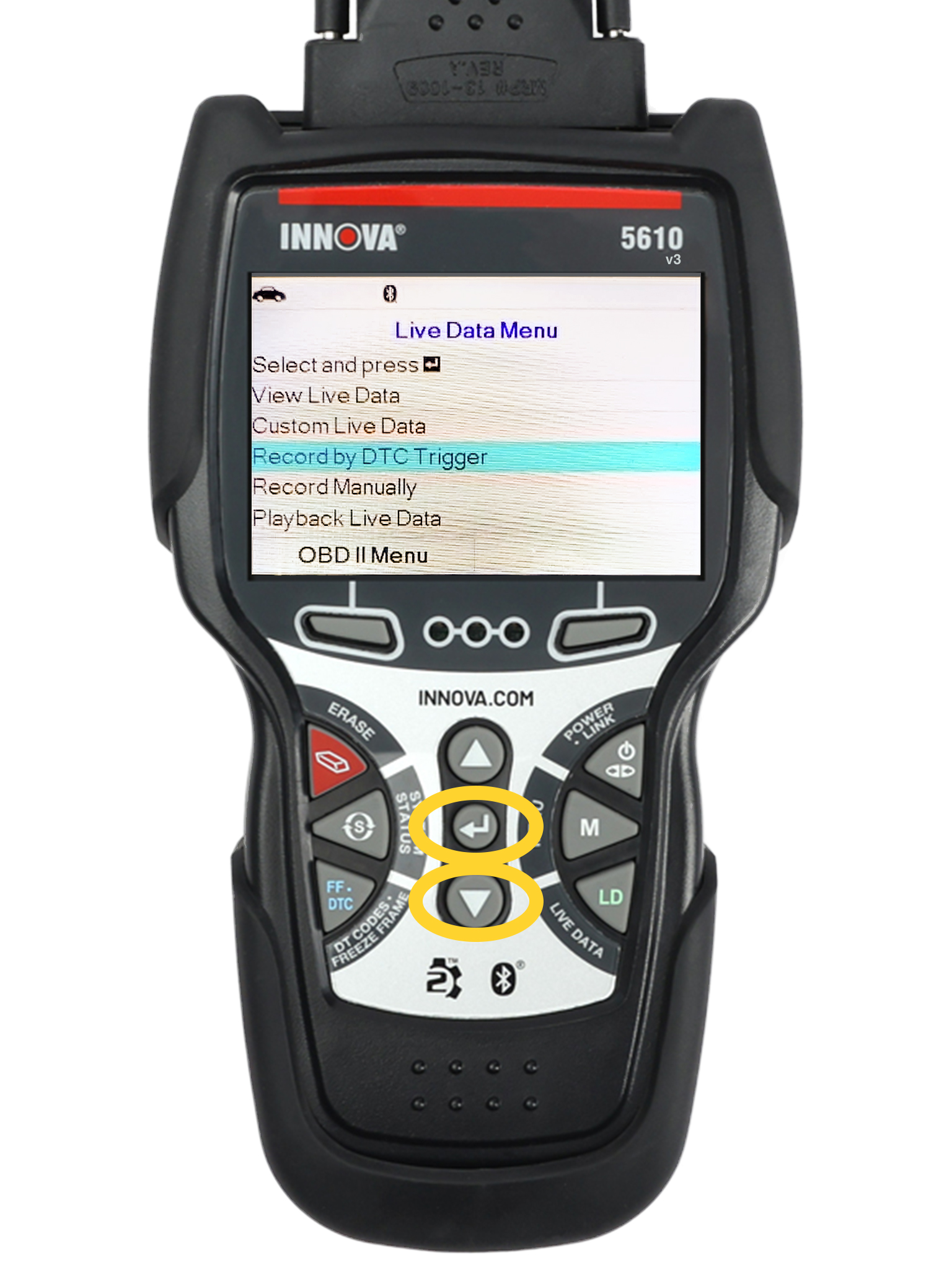

Step 2 - Select Record by DTC Trigger

- The Live Data Menu will display.
- Select Record by DTC Trigger, then press ENTER ↵.

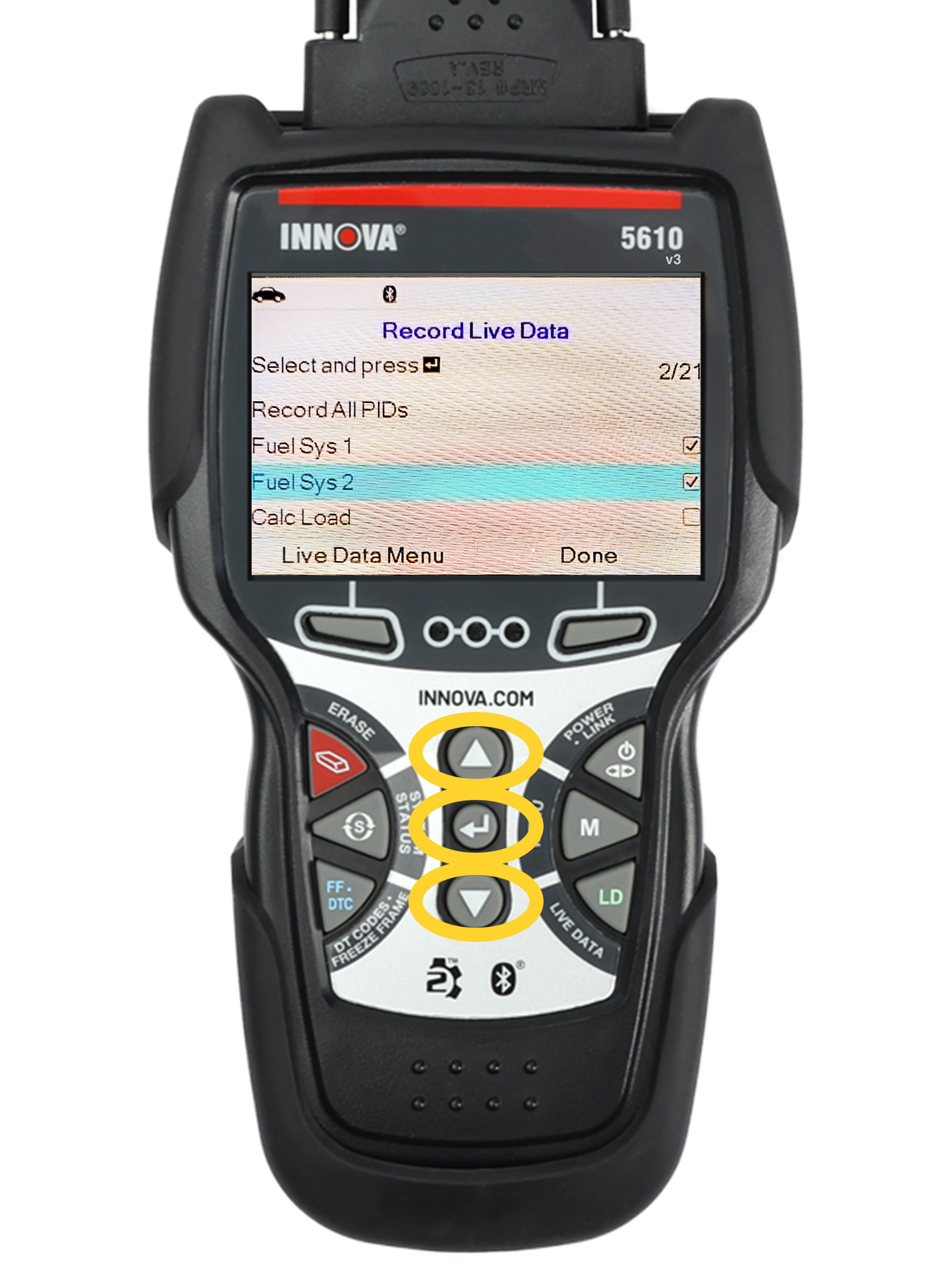

Step 3 - Scroll through the available PIDs
|
|
|
- The Select PIDs to Record screen will display.
- Press UP ▲ and DOWN ▼ to scroll through the available PIDs.
- When a PID you wish to record is highlighted, press ENTER ↵. Repeat until all the PIDs you want to record are selected. A Checkmark icon will show confirming your selection.
- To record all PIDs, select Record All PIDs.
- To deselect a PID, highlight the PID, then press ENTER ↵. The checkmark is removed.
- When you are finished making your selections, select Done to continue.

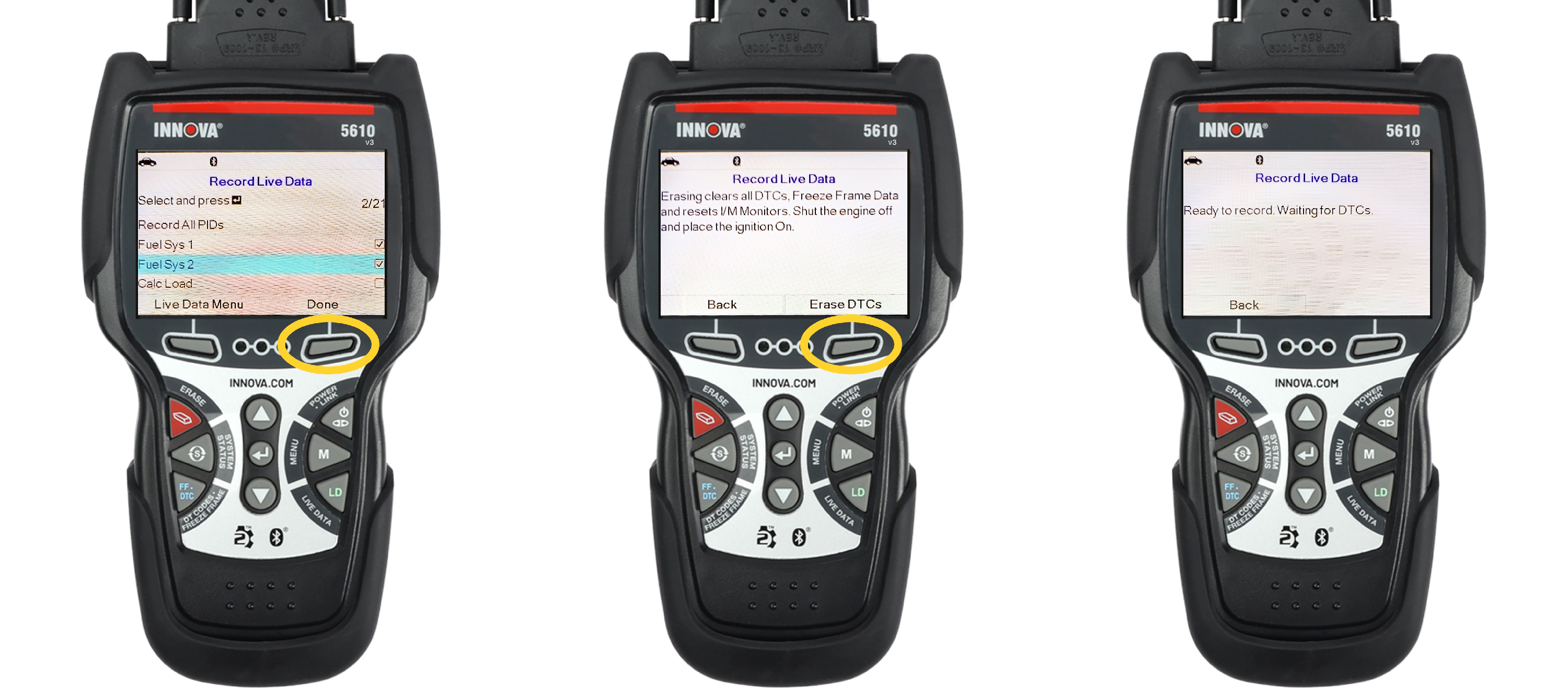

Step 4 - Select Done to continue
|
|
|
-
If DTCs are presently stored in the vehicle’s computer, an advisory message will display.
Select Erase DTCs.
- When the Erase process is complete, the Record Live Data screen will display the message Ready to record Waiting for DTCs.
- If the erase is not successful, an advisory message will display.
- To retry the erase process, verify that the 5610 is properly connected to the vehicle’s DLC and that the ignition is on.
- Press the Back button to return to the Live Data PID selection screen.
Step 5 - Place the engine in the operating condition that causes the DTC to set.
If necessary, drive the vehicle until you reach the vehicle speed at which the problem occurs.

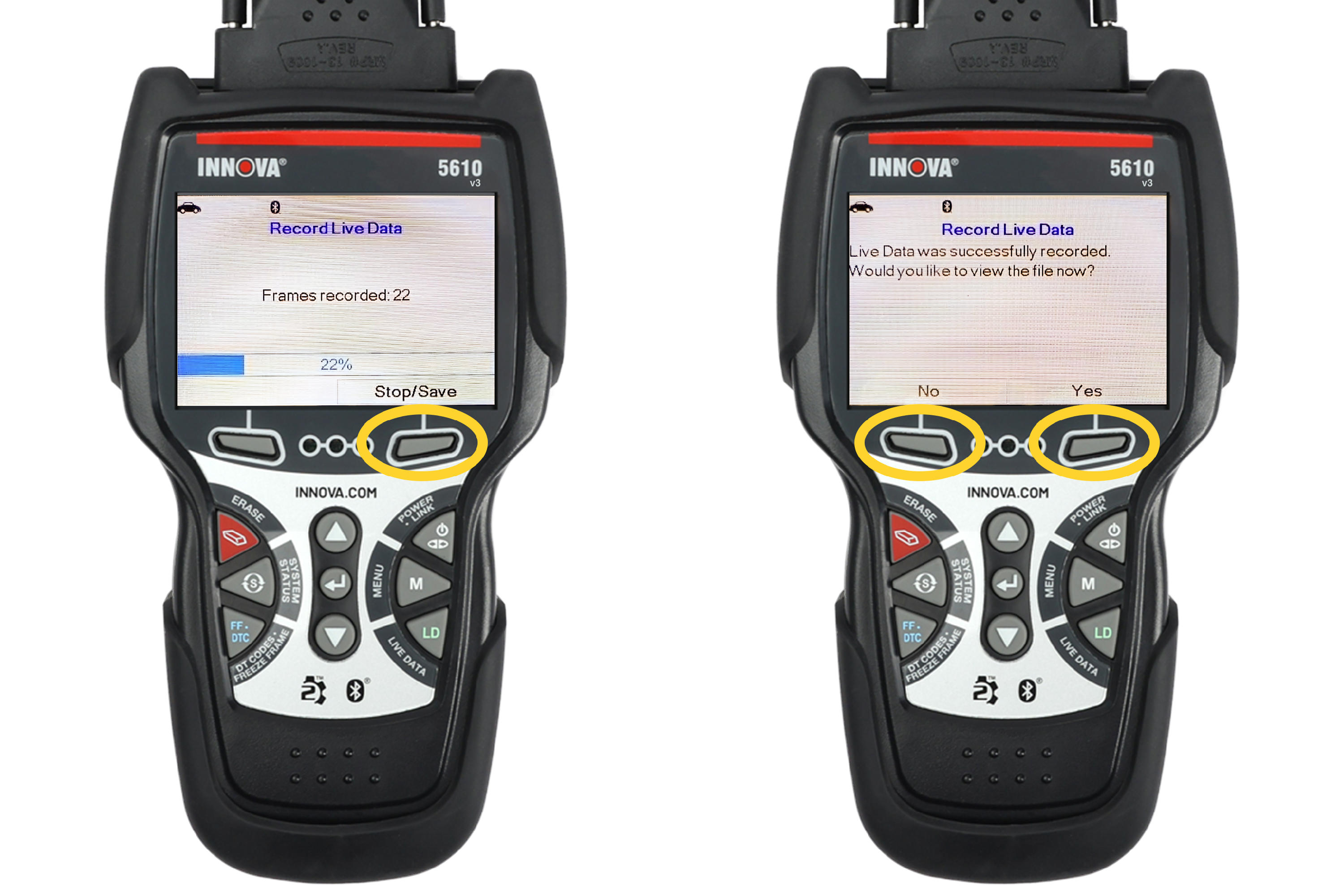

Step 6 - The 5610 automatically records & saves 100 frames of Live Data when a fault is detected
|
|
|
- A progress message will show on the display.
- You can stop and save recorded Live Data at any time by selecting Stop/Save.
-
When the recording is complete, a confirmation screen will display.
Select Yes to playback Live Data (see How to Playback Live Data for details) or No to return to the Live Data menu.
- If the recording was not successful, an advisory message will display. If so, press the Continue button to return to the Live Data menu.
