Innova 5610: Transmission Fluid Temperature

Performing a Service Check

The Service Check function will let you view your vehicle's Transmission Fluid Temperature, Oil Level, Oil Life Status, and Brake Pad Life.

Note: You can also view your Transmission Fluid Temperature in Transmission Live data, if supported by the year, make, model, and engine size of your vehicle. Transmission live data will not support Ford/Mazda vehicles. At the bottom of this article, there is a video showing how to access Transmission Live Data to view Transmission Fluid Temperature.

Service checks

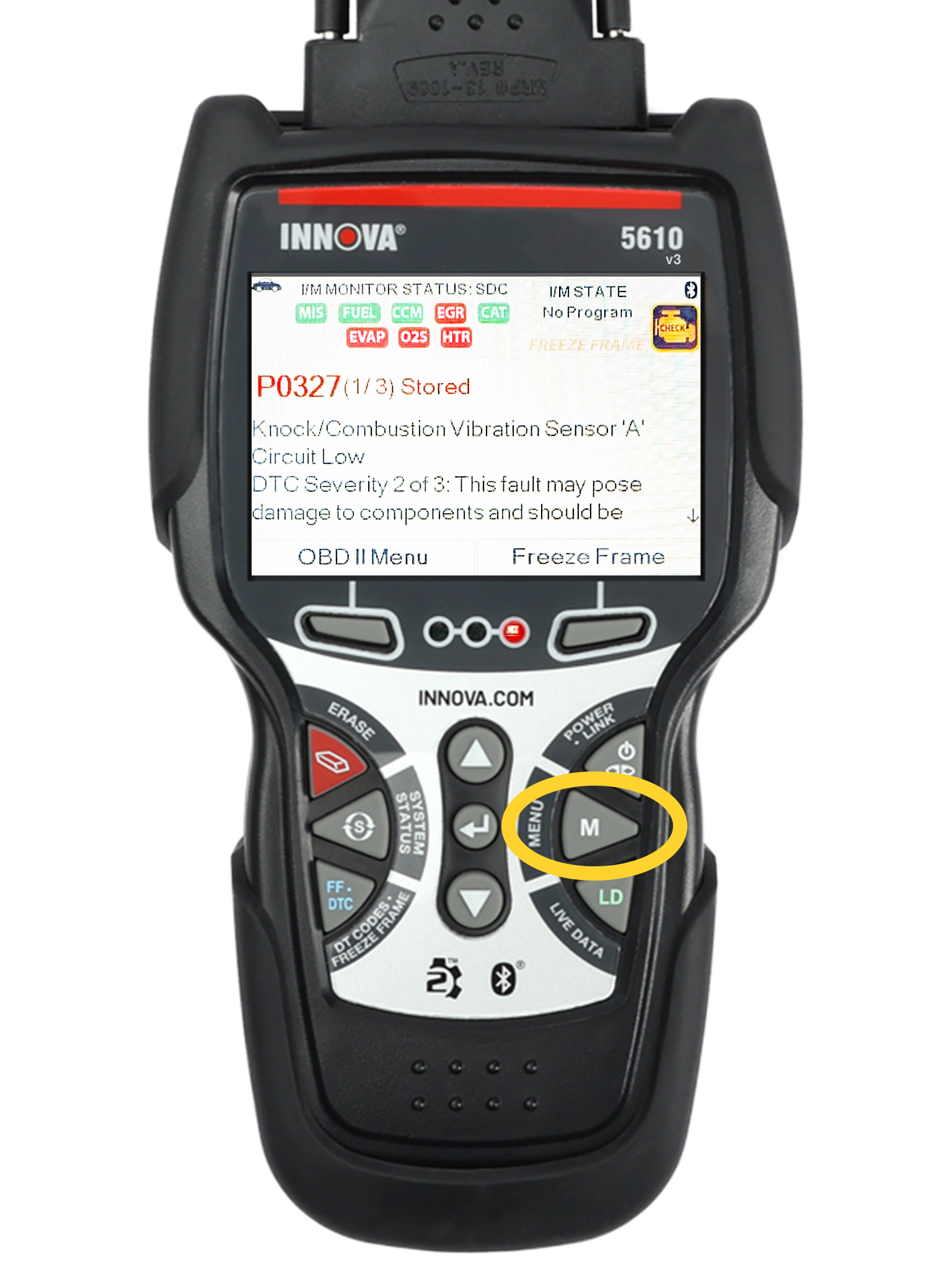

Step 1 - While linked to the vehicle, press the MENU button.

  • To navigate to the Service Check feature, press the MENU button.

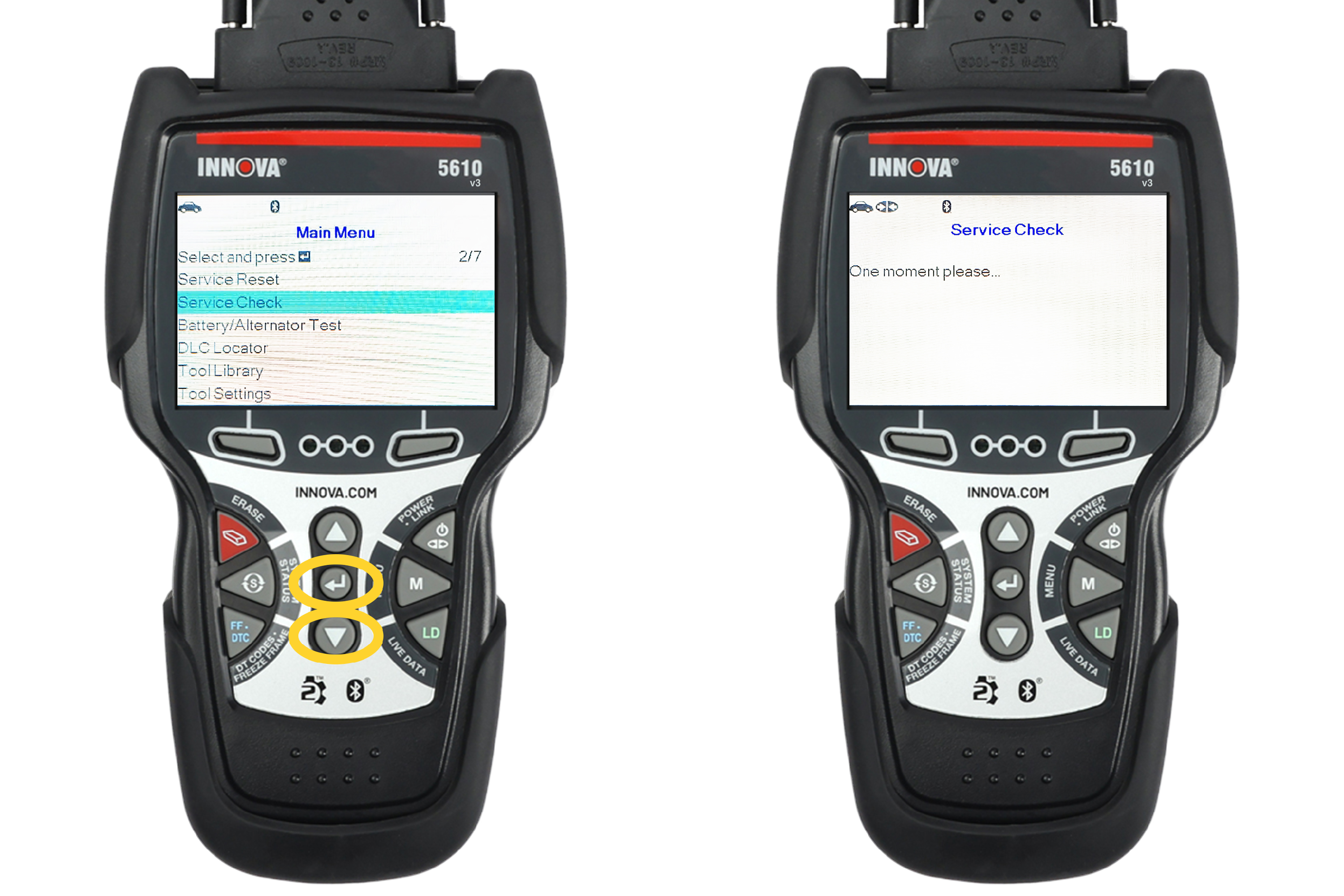

Step 2 - Select Service Check, then press ENTER ↵.

  • The Main Menu will display.

    Scroll down the screen using the DOWN ▼ button to Service Check, then press ENTER ↵.

  • A One moment please message will display.

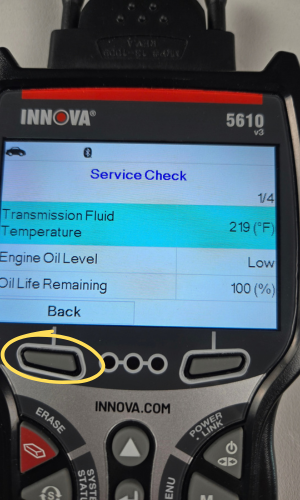

Step 3 - View your Service Check Information.

  • Transmission Fluid Temperature will display as the first option to view.

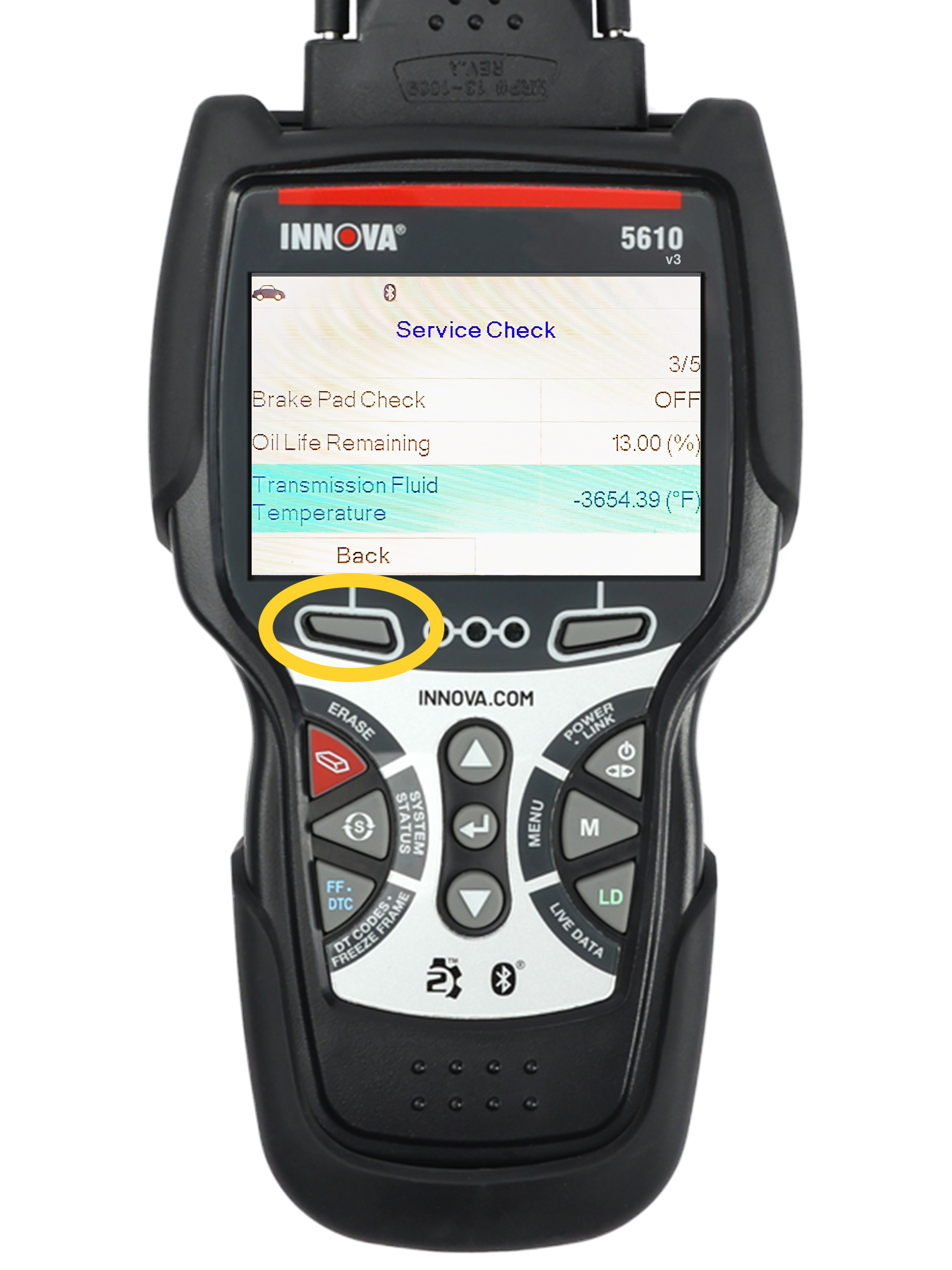

    When you have finished viewing your Service Check information, press the Back button to return to the Main Menu.


Transmission Live Data

  • You can view your Transmission Fluid Temperature in TCM Live Data if supported by your vehicle.

    Take a look at our Coverage Checker to see if supported for your vehicle.
